7 Standard Configurations
7.1 Furnace with Air Conditioner

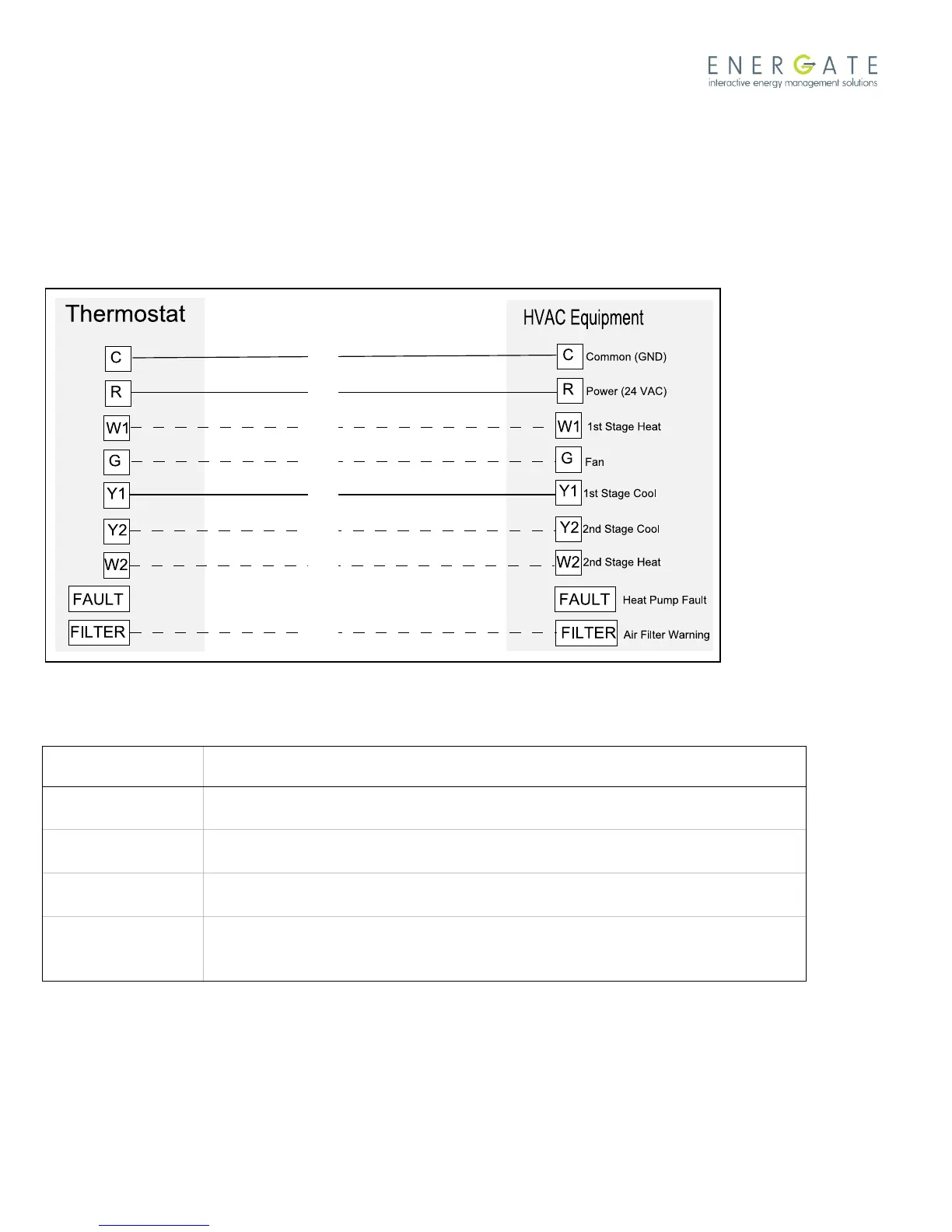

7.1.1 Equipment Wiring
7.1.2 Thermostat Equipment Settings
Setting
Value
EQUIPMENT TYPE
Conventional
# OF COOL STAGES
1 for single-stage air conditioner, 2 for two-stage air conditioner The default is 1.
# OF HEAT STAGES
1 for single-stage furnace, 2 for two-stage furnace. The default is 1.
FAN ON IN HEAT
Set to Yes if the thermostat controls the fan (common in electric furnaces) and No if
the furnace controls the fan (common in gas furnaces).
