61
8.5 Managemen
t → F
irmwa
re U
pgr
ade

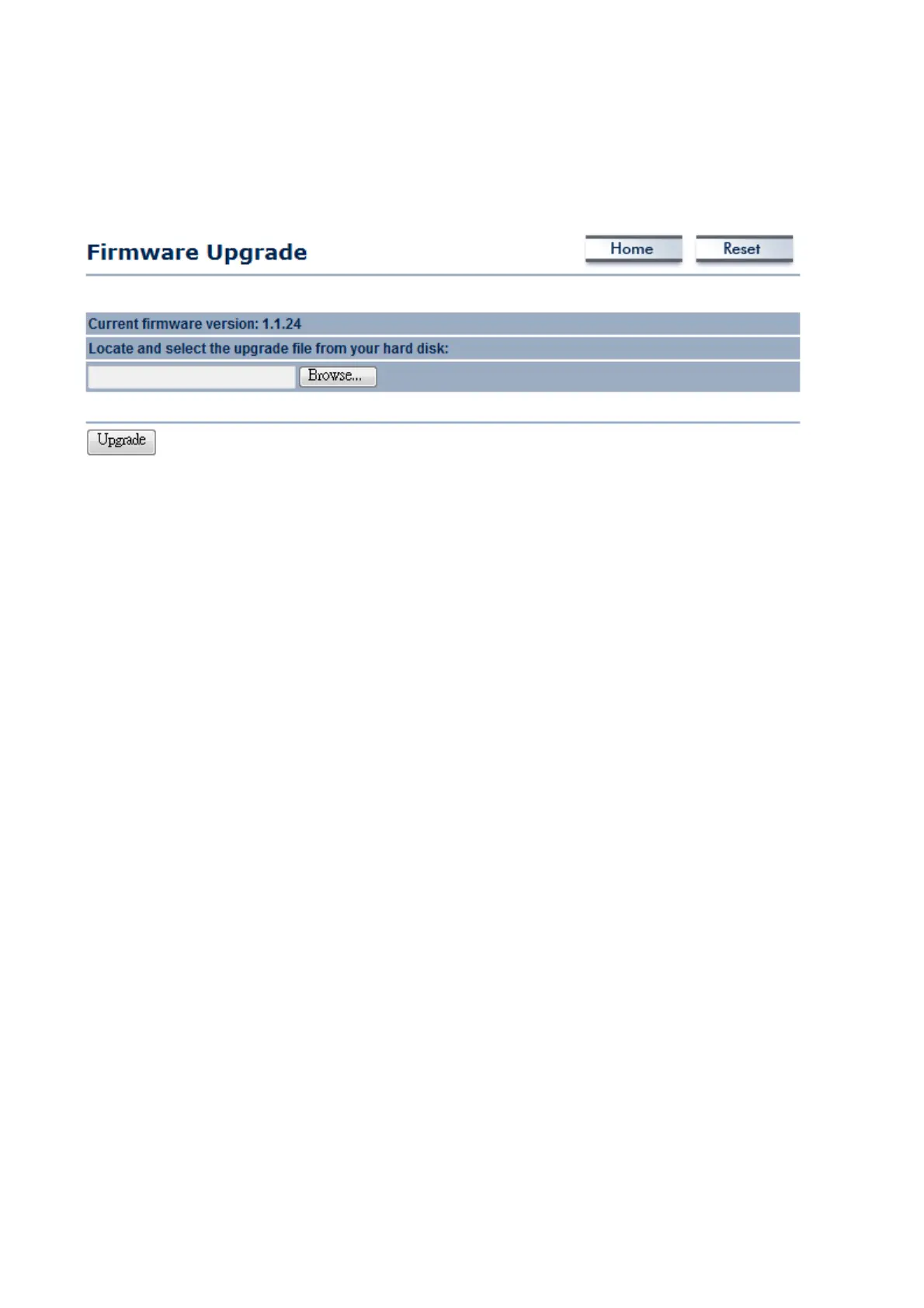

Click on the
Firmware
Upgrade
link under the
Management
menu. This page is used to upgrade the
firmware of the device. Make sure that downloaded the
appropriate firmware from your vendor.
Auction: U
pgra
de
pr
ocess ma
y take
f
ew minute
s, plea
se do not power of
f
the device and it ma
y cause
the device cra
shed or unusable. M5000 will res
tart automatically once the upgra
de
is comple
te
d.
61
63
Table of Contents
Default Chapter
1
User Manual
1
Table of Contents
2
1 Product Overview
4
Feature
4
Benefits
6
Package Contents
7
System Requirement
7
Hardware Overview
7
2 M5000 Multi-Function Instruction Guide
9
Access Point
9
Access Point with Wds Function
9
Acces Point
9
Client Bridge
10
Wds Bridge
10
WD Bridge
10
Client Router
11
Mesh
11
3 Computer Settings
13
Assign a Static Ip
13
Logging Method
14
4 Wireless Settings
15
Switching Operation Mode (System → System Properties)
15
M Ode (S Ystem → S Ystem P Roperties )
15
Wireless Settings
16
Access Point Mode → Wireless Network
16
Client Bridge Mode → Wireless Network
18
WDS Bridge Mode → Wireless Network
19
Client Router Mode → Wireless Network
21
Mesh Mode → Wireless Network
22
Wireless Security Settings
25
Wep
25
Wpa-Psk
26
Wpa2-Psk
26
WPA-PSK Mixed
27
Wpa
28
Security Mode
28
Wpa2
29
WPA Mixed
30
Radius Accounting
31
Wireless → Wireless Advanced Settings
32
Wireless → Wireless Mac Filter
34
Wireless → Wds Link Settings
35
5 Lan Settings
36
System → Ip Settings
36
System → Spanning Tree Settings
37
6 Router Settings
38
Router → Wan Settings
38
WAN Settings → Static IP
38
WAN Settings → DHCP (Dynamic IP)
41
WAN Settings → Pppoe (Point-To-Point Protocol over Ethernet)
43
WAN Settings → PPTP (Point-To-Point Tunneling Protocol)
45
Router → Lan Settings
47
Router → Vpn Pass through
48
Router → Port Forwarding
49
7 Information Status
50
Status → Main
50
Status → Wireless Client List
52
Status → System Log
53
Status → Wds Link Status
54
Status → Connection Status
55
Status → Dhcp Client Table
56
8 Management Settings
57
Anagement Dministration
57
Anagement Anagement Vlan
59
Management → Snmp Settings
60
Backup /Restore Settings
61
Firmware Upgrade
62
Anagement Ime Ettings
63
Ime S Ettings
63
Anagement → Log
64
Anagement Iagnostics
65
9 Network Configuration Example
66
Access Point
66
Acces Point
66
Client Bridge Mode
67
Wds Bridge Mode
67
Client Router
68
Mesh
69
10 Vlan Configuration Guide
72
Federal Communication Commission Interference Statement
76
Other manuals for EnGenius M5000
Datasheet
7 pages
Quick Start Guide
2 pages
