Enotec COMTEC 6000 DustEx - Installation Requirements for Probe Cable

Installation Installation and Operation Manual - COMTEC
®
/ OXITEC
®
DustEx
6 Doc.-ID: COM_OXI_Dust_11022020

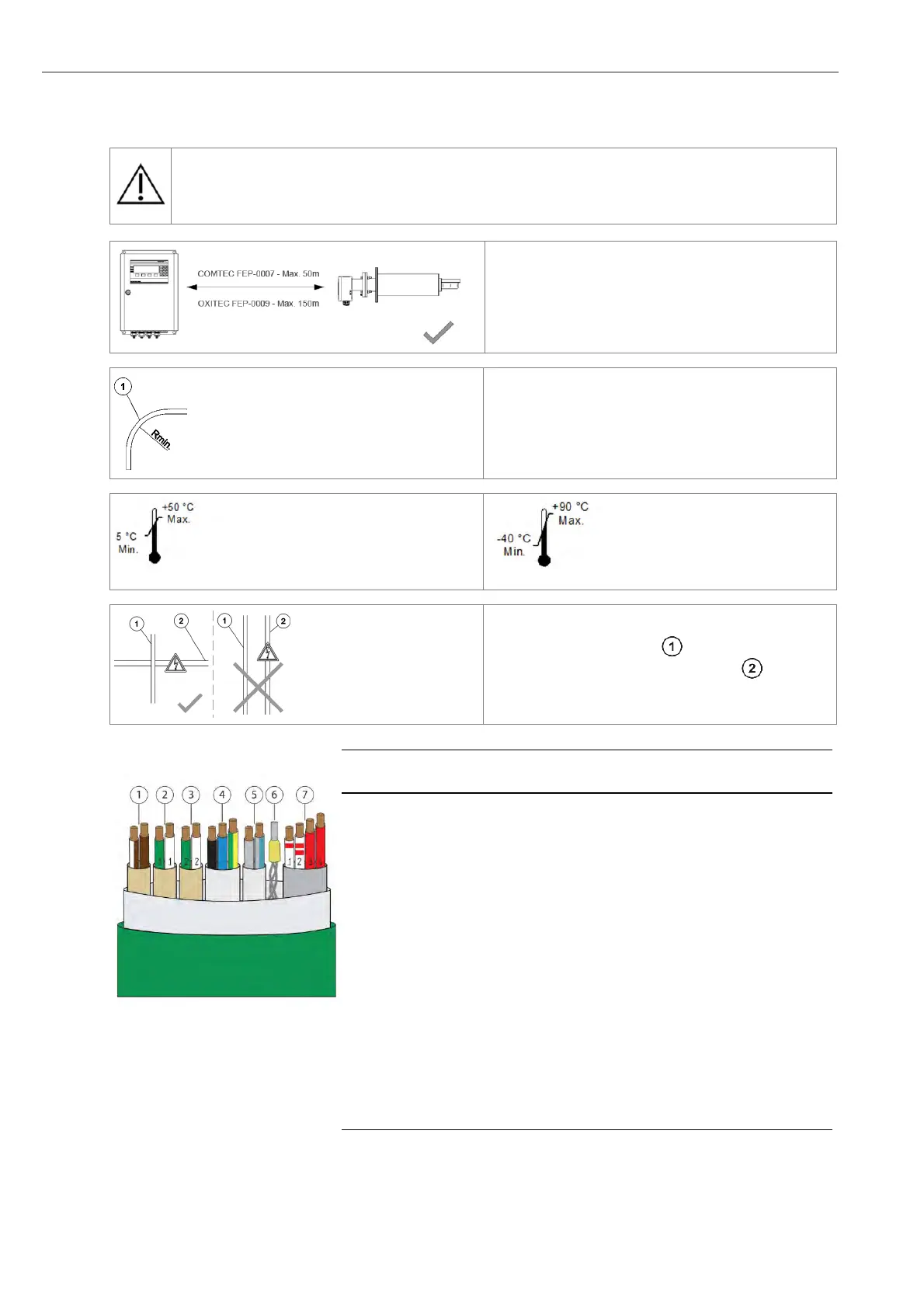

2.2 Installation Requirements for Probe Cable
Warning
The shield of the probe cable must only be connected at the electronic housing at the PE terminal. Under
no circumstance should the shield also be connected at the probe.
Abide by the maximum cable length
(Max. OXITEC pump version cable length – 70m)
Note the minimum bending radius.
FEP-0007 R
min
= 234 mm
FEP-0008 R
min
= 282 mm
Temp. during installation
Temp. during operation
Cross the probe signal cable (FEP-0007/08) at a right
angle to the power supply cables
No. Function Diameter Colors Info
1 O
2
measuring cell 2 x 0,75 mm
2
white-brown /
brown
With shield
2 Thermocouple 1 2 x 0,75 mm
2
green / white With shield
3 Thermocouple 2 2 x 0,75 mm
2
green / white With shield
4 Probe heater 3 x 1,5 mm
2
black / blue /
green-yellow
5 Probe Solenoid valve 2 x 0,75 mm
2
grey / grey-blue
Figure 4 - Probe cable FEP-0007/ FEP-
0008 (armored)
6 Shield of 1, 2 & 3 bare
7 CO
e
measuring cell 4 x 0,75 mm
2
white/ white/
red/ red
