2.16 Pneumatic Connections of the Electronic Units
Nr. Tube Pump Version Instrument Air Version
1/4“ Testgas in Testgas in
1/4“ Testgas out Testgas out
1/4“
Reference air input Instrument air in
1/4“
Reference air output Reference air out
1/4“
Test air input

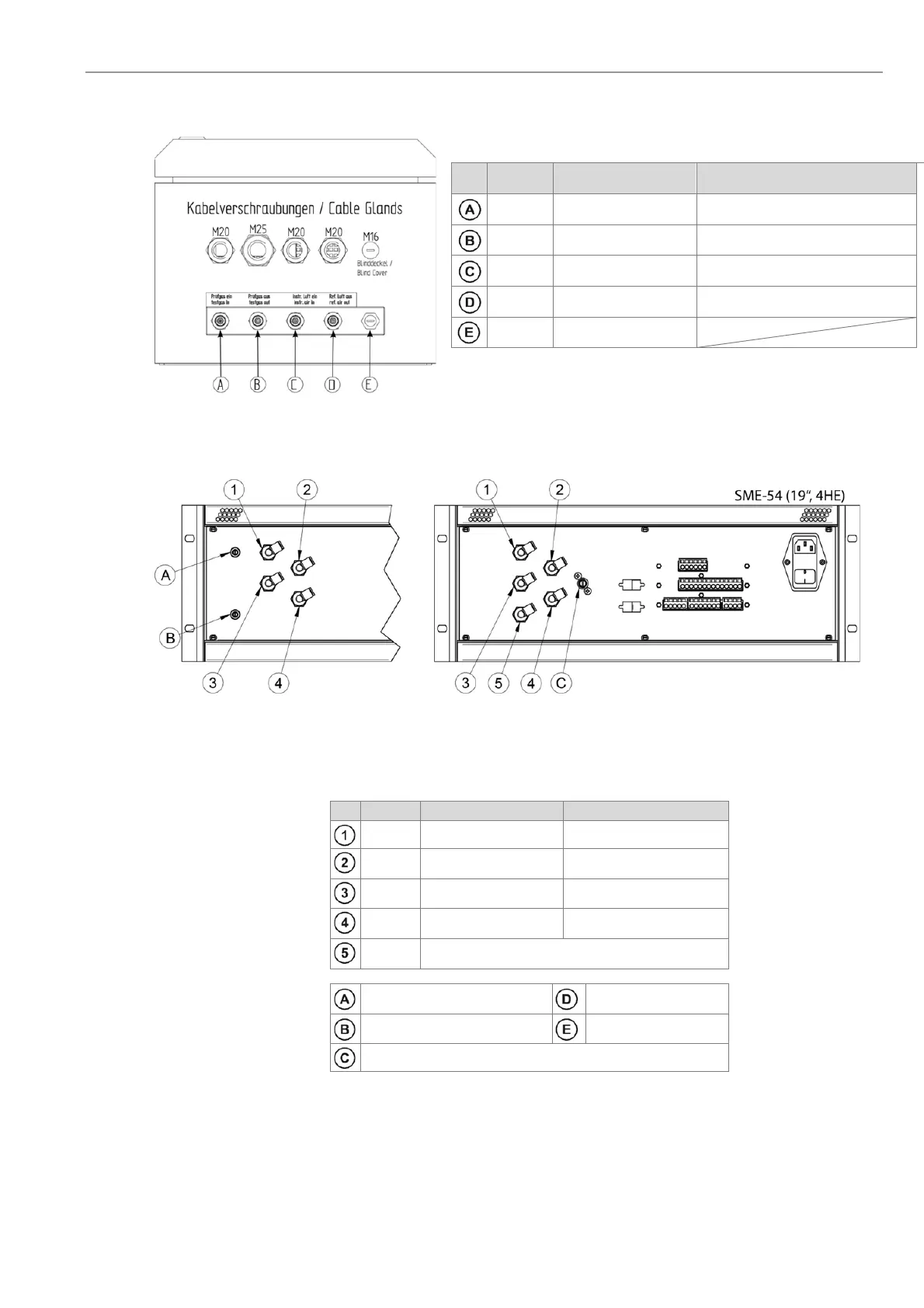

Figure 16 - Bottom view of SME-53 with pneumatic unit
Instrument air version Pump version
Figure 17 -
Back view of SME-54 showing pneumatic connections
Nr. Tube Pump Version Instrument Air Version
1/4“ Testgas in Testgas in
1/4“
Testgas out Testgas out
1/4“
Reference air input Instrument air in
1/4“
Reference air output Reference air out
1/4“
Test air input
Regulator Test Air Test Air Filter
Regulator Reference Air Reference Air Filter
Regulator Test Air
