Enotec COMTEC 6000 DustEx - Dimension Drawings; Dimensions of the Electronic Units

Dimension Drawings Installation and Operation Manual - COMTEC
®
/ OXITEC
®
DustEx
26 Doc.-ID: COM_OXI_Dust_11022020
B Dimension Drawings

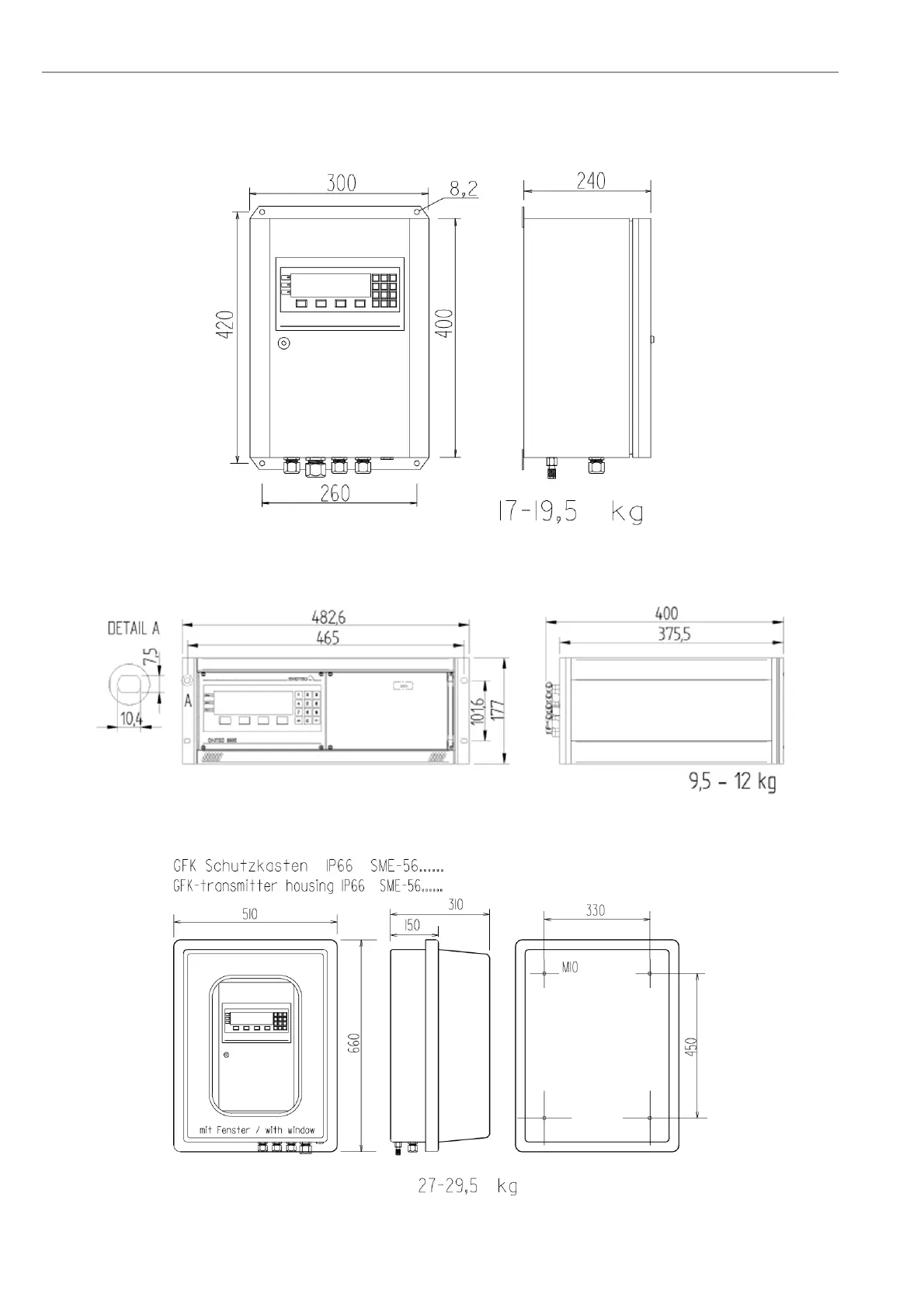

B.1 Dimensions of the Electronic Units
Figure 43 - Field housing (sheet steel) IP65
Figure 44 - Electronic unit in 19 inch rack 4HE (aluminium) IP20
Figure 45 – SME-56 GRP housing (option)
