B.3 Counter Flange Dimensions

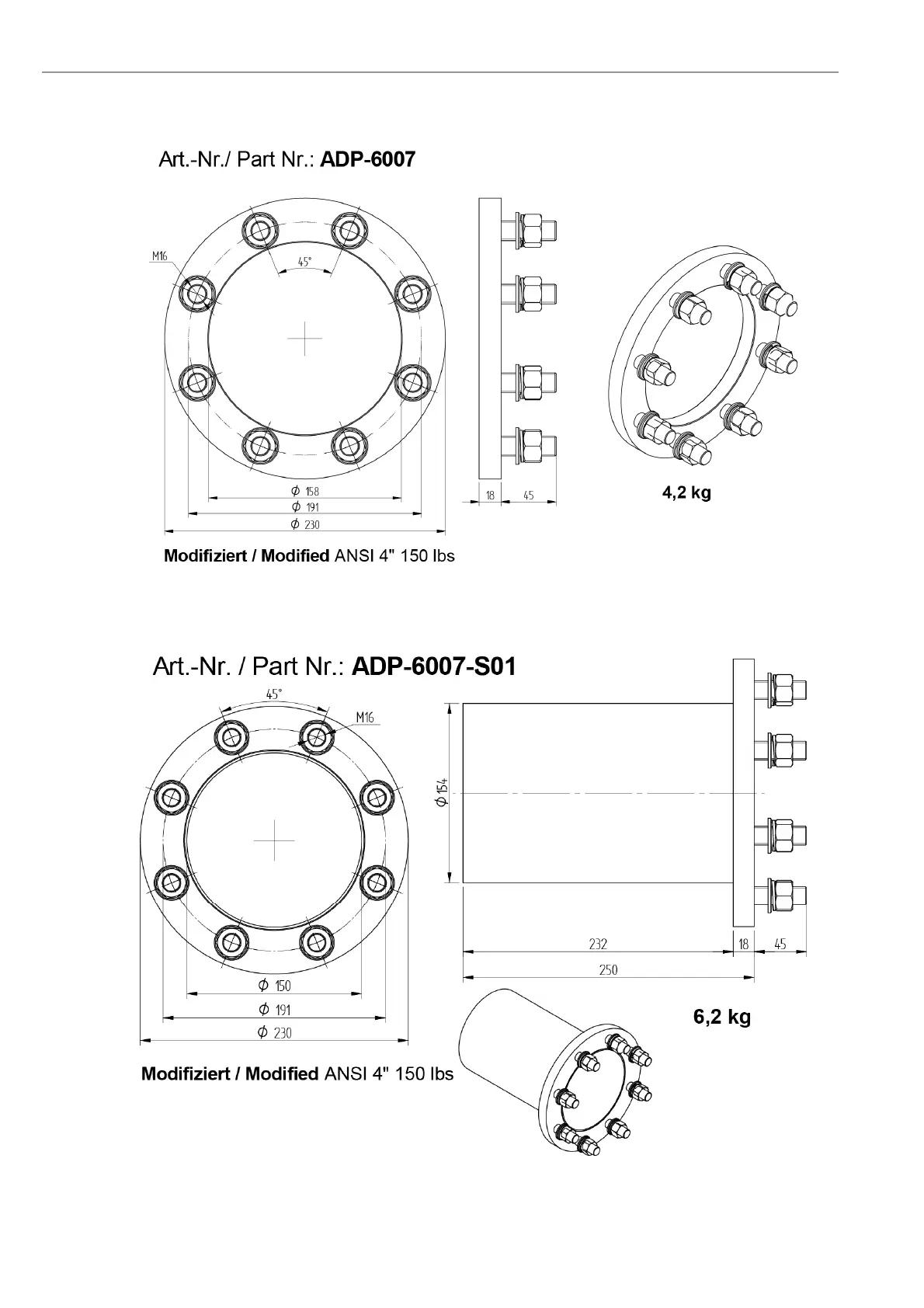

Figure 47 - Dimensions of counter flange ADP-6007 for KES600X

Figure 48 - Dimensions of counter flange ADP-6007-S01 for KES600X
