Enotec COMTEC 6000 DustEx - Preparation of the pneumatic cable; Pneumatic Connections of the Probe

Installation Installation and Operation Manual - COMTEC
®
/ OXITEC
®
DustEx
8 Doc.-ID: COM_OXI_Dust_11022020

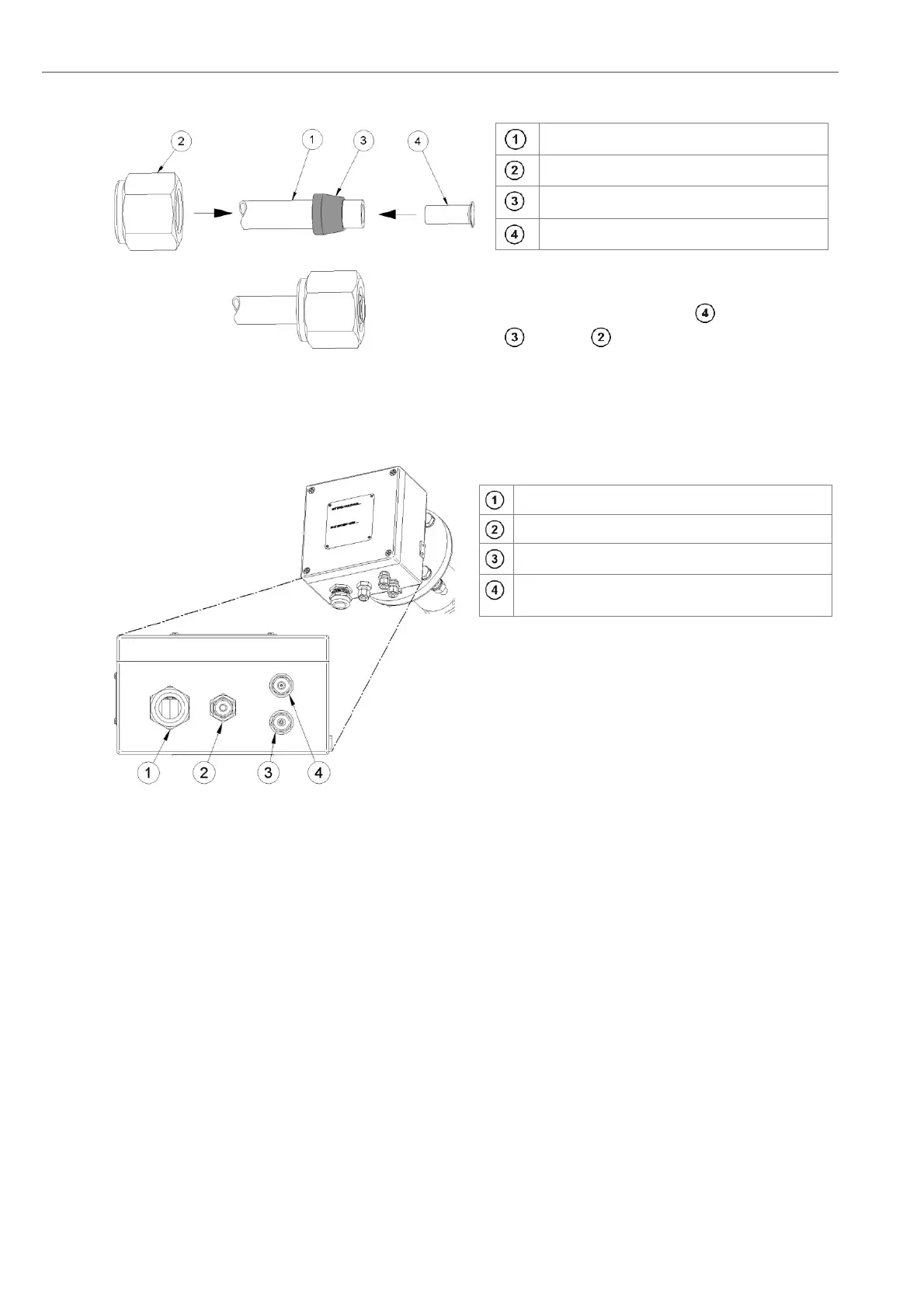

2.14 Preparation of the pneumatic cable
Tubing of the pneumatic cable FEP-0002
Nut
Clamp ring
Support sleeve
Both, the pneumatic tubing for the reference air
(blue) and the test gas (green) have to be
prepared with support sleeves , clamp rings
and nuts .
Figure 14 - Preparation of pneumatic tubes
2.15 Pneumatic Connections of the Probe
Cable gland for probe signal cable
Tube fitting: Reference air out
Tube fitting: Test gas in ( FEP-0002: green tube)
Tube fitting: Reference air in (FEP-0002: blue
tube)
Figure 15 - Overview of the pneumatic connections at
the probe
