5.10 Replacing the COe Sensor (COMTEC)
Caution
Failure to observe this information may destroy the new replacement CO
e
sensor.
Disable the CO
e
Sensor (via the software) SYS-MENU System Configuration Set CO
e
measurement OFF
Switch off the power supply of the analyzer system.
Disconnect the COe sensor wires at the
terminal block no. 11-14.

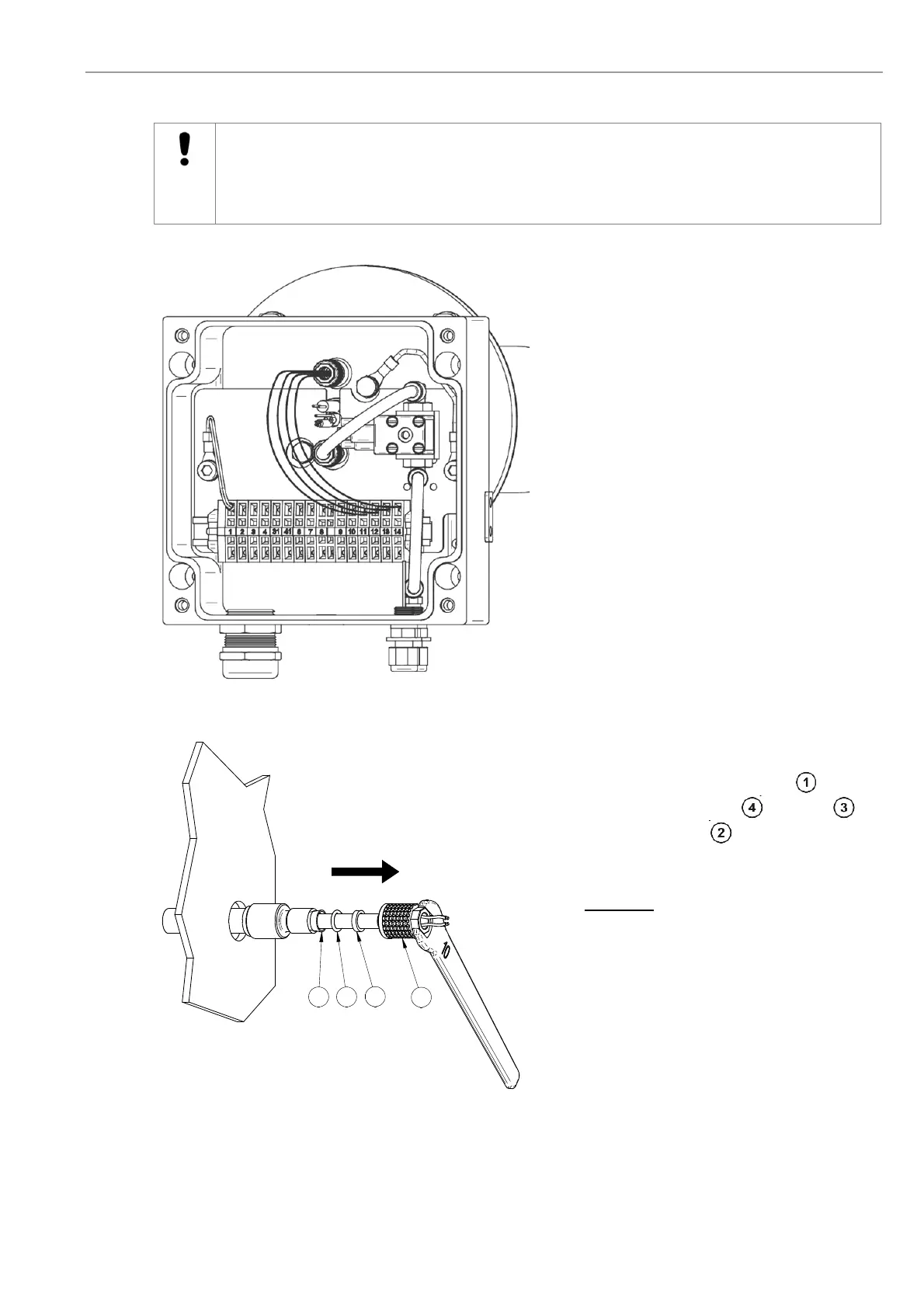

Figure 36 - Connection of the COe
sensor
Unscrew and remove the cap nut
.
Loosen the clamping ring , the O-ring
and the retainer ring
.
Pull the COe sensor out of the probe.
Take care: The COe sensor may be hot
Figure 37 - Remove the COe sensor
1
2
34
