Enotec COMTEC 6000 DustEx User Manual

Installation and Operation Manual - DustEx System Description
Doc.-ID: COM_OXI_Dust_11022020 1
1 System Description
1.1 Distinction between COMTEC / OXITEC DustEx
The OXITEC 5000 ATEX DustEx and COMTEC 6000 ATEX DustEx systems differ only in regard to the optional CO
e
sensor.
The OXITEC 5000 ATEX DustEx system includes an O
2
sensor only.
The COMTEC 6000 ATEX DustEx system includes both O
2
and CO
e
sensors.
There are no constructive differences between both systems.
Info
References to the CO
e
sensor are only applicable to the COMTEC 6000 DustEx analyzer system.
1.2 System Overview

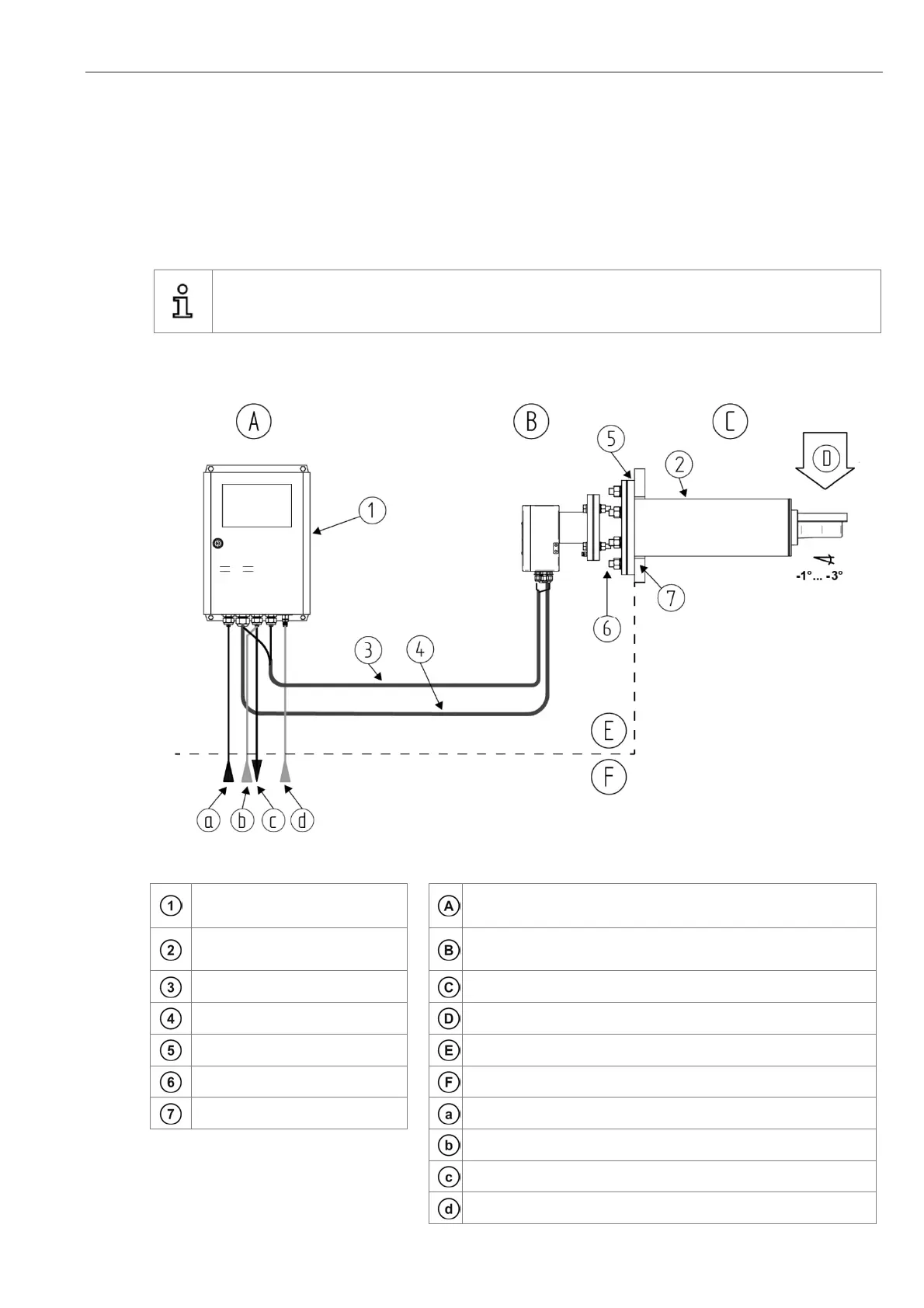

Figure 1 - System overview
Electronic unit SME5 / IP66
Safe Area
Max. ambient temp.: -20 °C to +55 °C (-4 °F to +131 °F)
In-Situ measuring probe / IP6X
Potentially explosive atmosphere (Dust Ex)
Max. ambient temp.: -20 °C to +70 °C (-4 °F to +158 °F)
Pneumatic cable Duct / combustion chamber
O
2
probe signal cable Flue gas direction – max. flue gas temperature 600 °C (1112 °F)
Counter flange (Optional) Manufacturer supply
Isolation: Customer Customer supply
Duct wall Power supply
Test gas in
Output signals (analog and digital)
Instrument air in

Enotec COMTEC 6000 DustEx Specifications

General

Brand	Enotec
Model	COMTEC 6000 DustEx
Category	Measuring Instruments
Language	English
