Installation and Operation Manual - DustEx Installation
Doc.-ID: COM_OXI_Dust_11022020 5

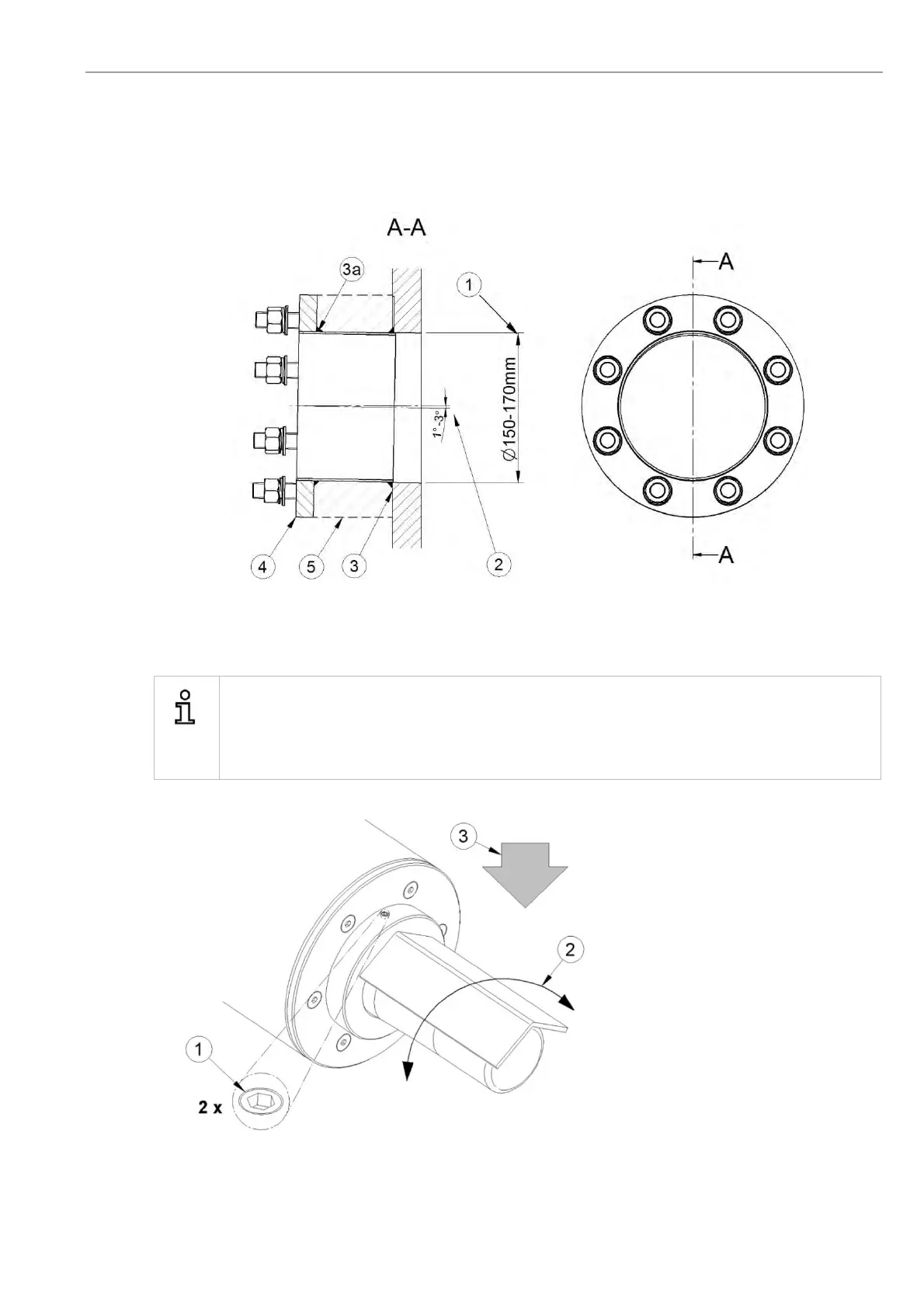

2.9 Mounting of the Counter Flange at the Duct
The counter flange ADP-6007-S01 (with tube) must be welded gastight to the duct wall (3) or alternatively the ADP-
6007 (without tube) must be welded gastight (3a) to the existing tube.
The insulation (6) must be done by the customer.
The flange has to be mounted at an angle of 1-3° (2) so that condensed flue gas elements can flow back into
the duct.
Figure 10 - Mounting of the counter flange
2.10 Adjusting the V-shield
Info
Before installing the probe, the direction of flue gas flow (3) must be determined and the filter head
assembly turned to such a position that the flue gas flow hits the V-shield (2). The filter head can be
turned freely a full 360° for this purpose by loosening the locking screws (1), rotating the filter head/V-
shield (2) to the required position, and then tightening both locking screws (1).
Figure 11 - Adjusting the V-shield
