Initial Operation Installation and Operation Manual - COMTEC
®
/
OXITEC
®
DustEx
2 Doc.-ID: COM_OXI_Dust_11022020
3 Initial Operation
Warning
Before opening the electronic unit or the connection box the system must be voltage free.
Minimum waiting time 5 s.
Before opening the electronic unit or the connection box the grub screw must be removed.
After closing the grub screw must be punt in.
3.1 Checklist before commissioning the system
Is the system number of the probe identical to the system number of the electronic unit? If not, change the
assignment.
Does the voltage specified on the name plate correspond to the line voltage? (See section 0 - Name Plates)
If not, contact ENOTEC.
Is the electrical wiring connected correctly? (See sections 2.6 and 2.7 –Wiring Diagrams)
Are the pneumatic connections correct and gas tight? (See sections 2.15 and 1.1 - Pneumatic Connections)
Make sure that there are no leakages at the probe - e.g. is the counter flange welded gas tight to the duct and are
the flange bolts tightened sufficiently? Are gaskets in use? (See section 2.8 - Mounting of the Probe)
Do the conditions at site match the specification in the data sheets? (See section A- Technical Data)
3.2 System Power Up
Switch on the line voltage to the system. After a short power up information, the user is prompted to
Select language, set the System date, System time, enter a TAG number and ENOTEC REMOTE code (only if
option ENOTEC REMOTE is factory activated) and enter the probe cable length (COMTEC only).
The probe heating phase now begins which is followed by the measuring mode.

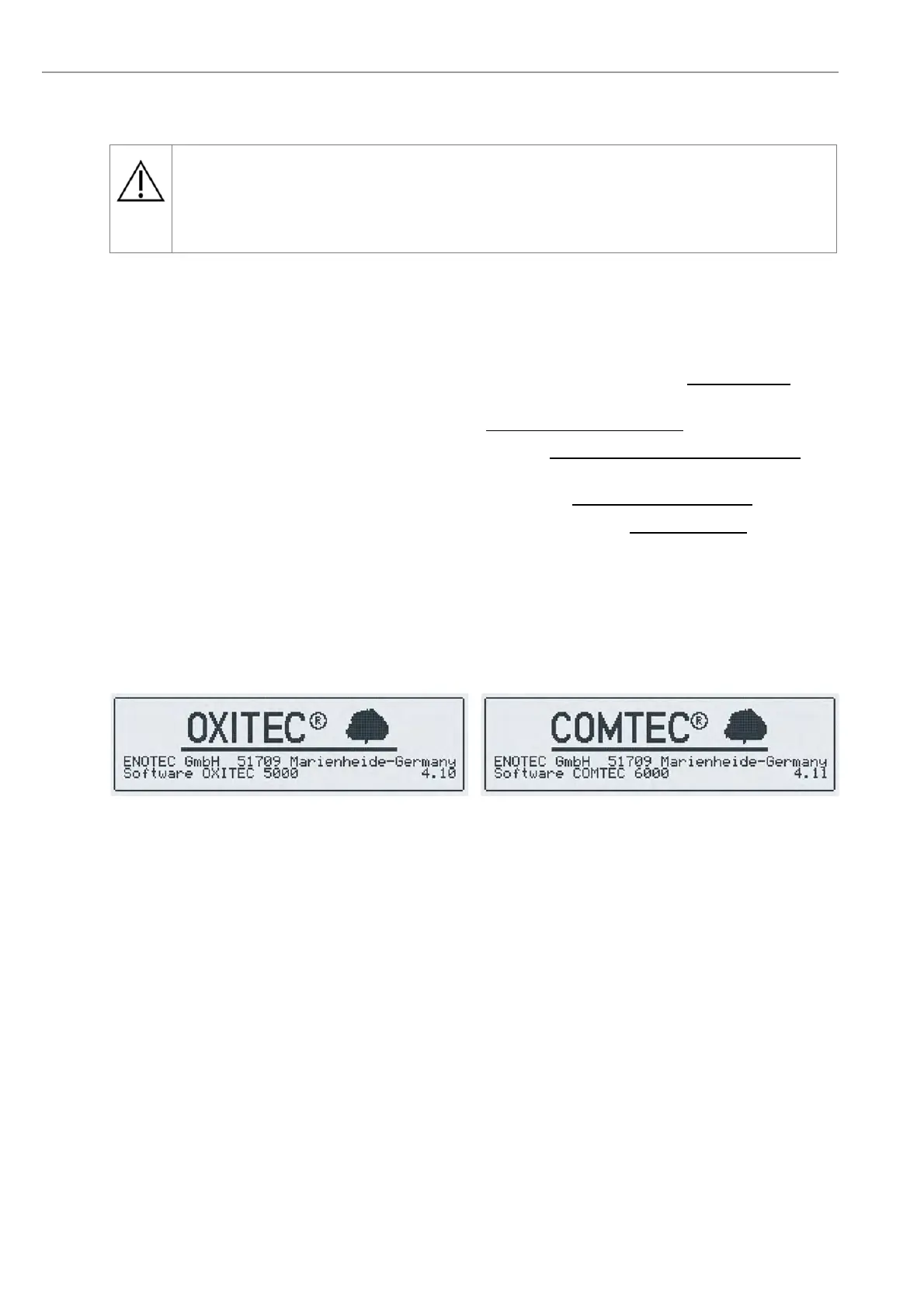

Figure 18 - System Power up. Note the software version at the bottom right of the display.
