Enotec COMTEC 6000 DustEx - Probe Components

Installation and Operation Manual - COMTEC
®
/ OXITEC
®
DustEx Dimension Drawings
Doc.-ID: COM_OXI_Dust_11022020 29
B.4 Probe Components

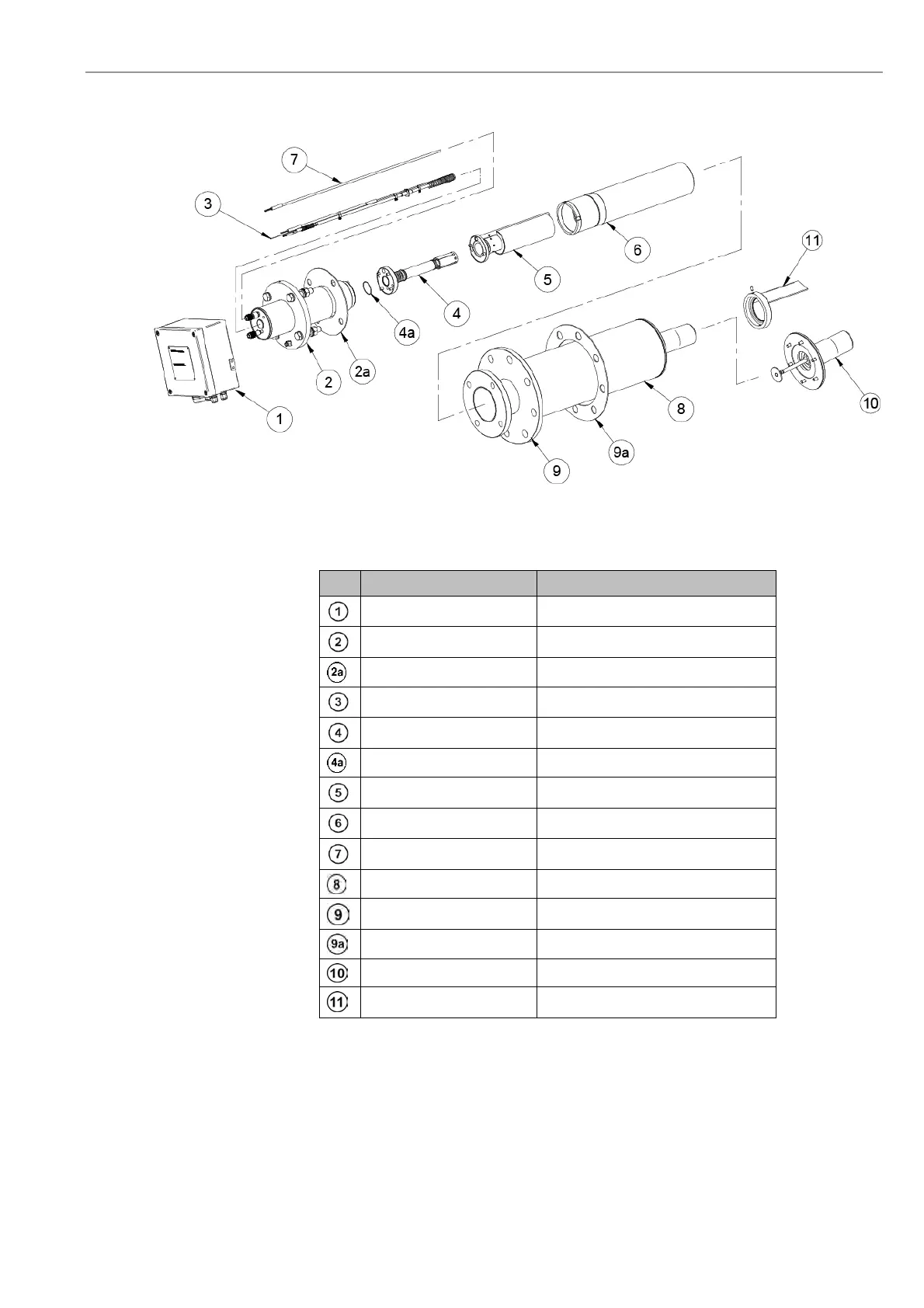

Figure 49 - KES600X80000 Probe Components
No. Artikel number Description
ASK-0003 Connection box
MSR-600X-ST Probe tube
FLD-1000 Probe flange gasket
SIK-600X-2TH Probe inner part
ZO2-60(0/1)1 O
2
Measuring cell
MZD-0005 Metal-O-ring seal
0-R-002311 Test gas distributor
KES600080000 Filter head
KES60000X000 COe-Sensor
KES600000X00 Protection tube
KES6000000X0 Protection tube flange
0-R-000147 Prot. tube flange gasket
SMF-600STAUB Sintered metal filter and flange
HRV-600STAUB Mounting ring with V-shield
