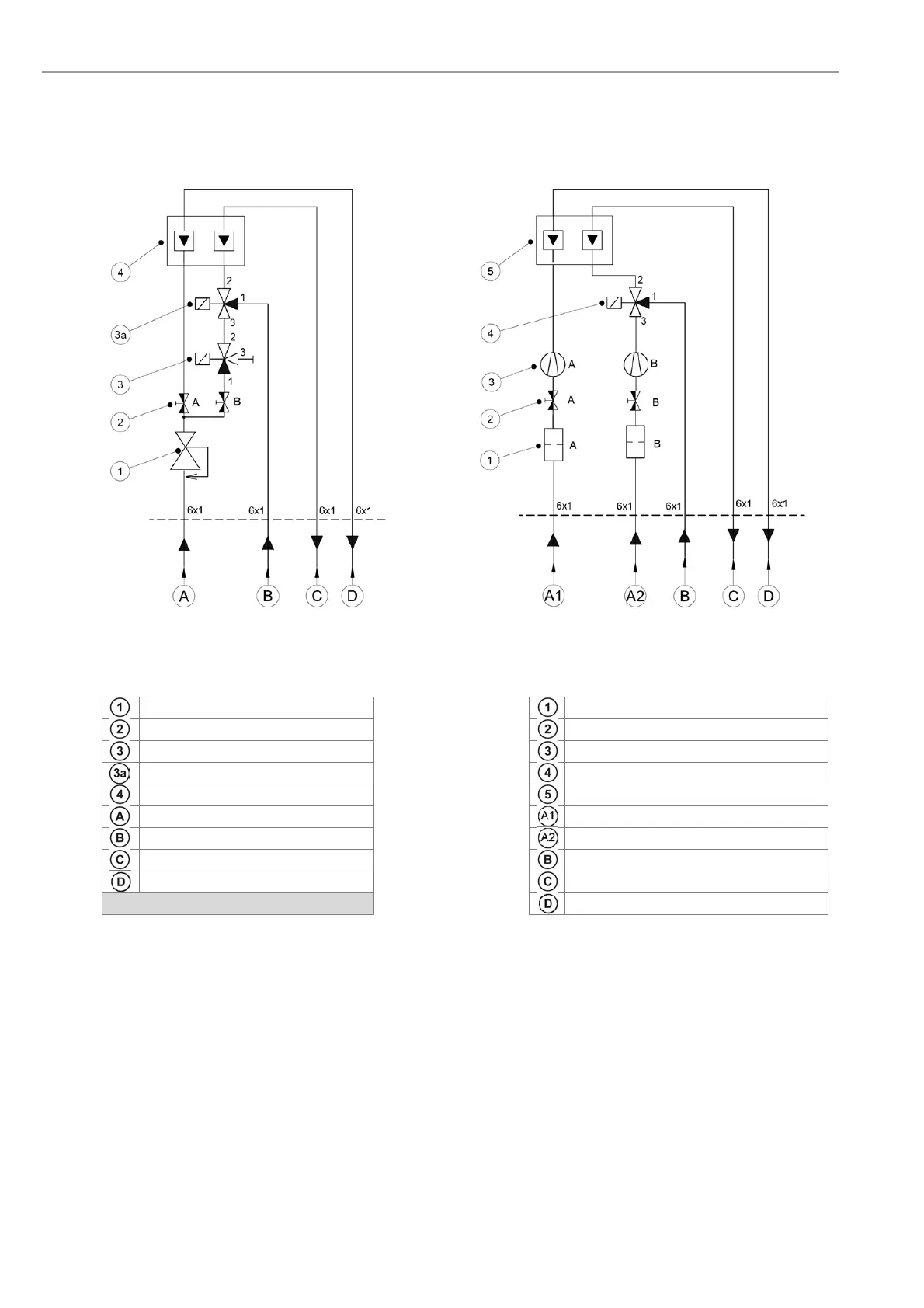

B.5 Gas plan
Pneumatic version for Instrument air
SME-50000010
Pneumatic version with pumps
SME-50000020
Figure 50 - Gas plans
Pressure control valve Filter
Choke non return valve Choke non return valve
Solenoid valve 3/2 ways Reference air pump / Test air pump
Solenoid valve 3/2 ways Solenoid valve 3/2 ways
Flow meter Flow meter
Instrument air in, 4 – 10 Bar Reference air in
Test gas in, Max. 3 Bar Test air in
Test gas out, 150 - 180 l/h Test gas in
Reference air out, 30 – 40 l/h Test gas out, 150 - 180 l/h
Reference air out
