Scanner
MUX
-
data connection for the Scanner
MUX
•
••
•
Sensor Scanner Array - power to the scanners, display, and the In-Feed sensors
•
••
•
Rear Conveyor – The Rear Conveyor is not used on the
flex
this connector is for the
“AL” (Aluminum) sensor input.
•
••
•
In-Feed - power to the In-Feed rollers and conveyor
•
••
•
VGA
-
VGA
graphics connector for the display
•
••
•
USB
Ports - The display is connected to either of these ports, and you can
connect a keyboard to the other.
•
••
•
LASER Control – Laser Power Connector

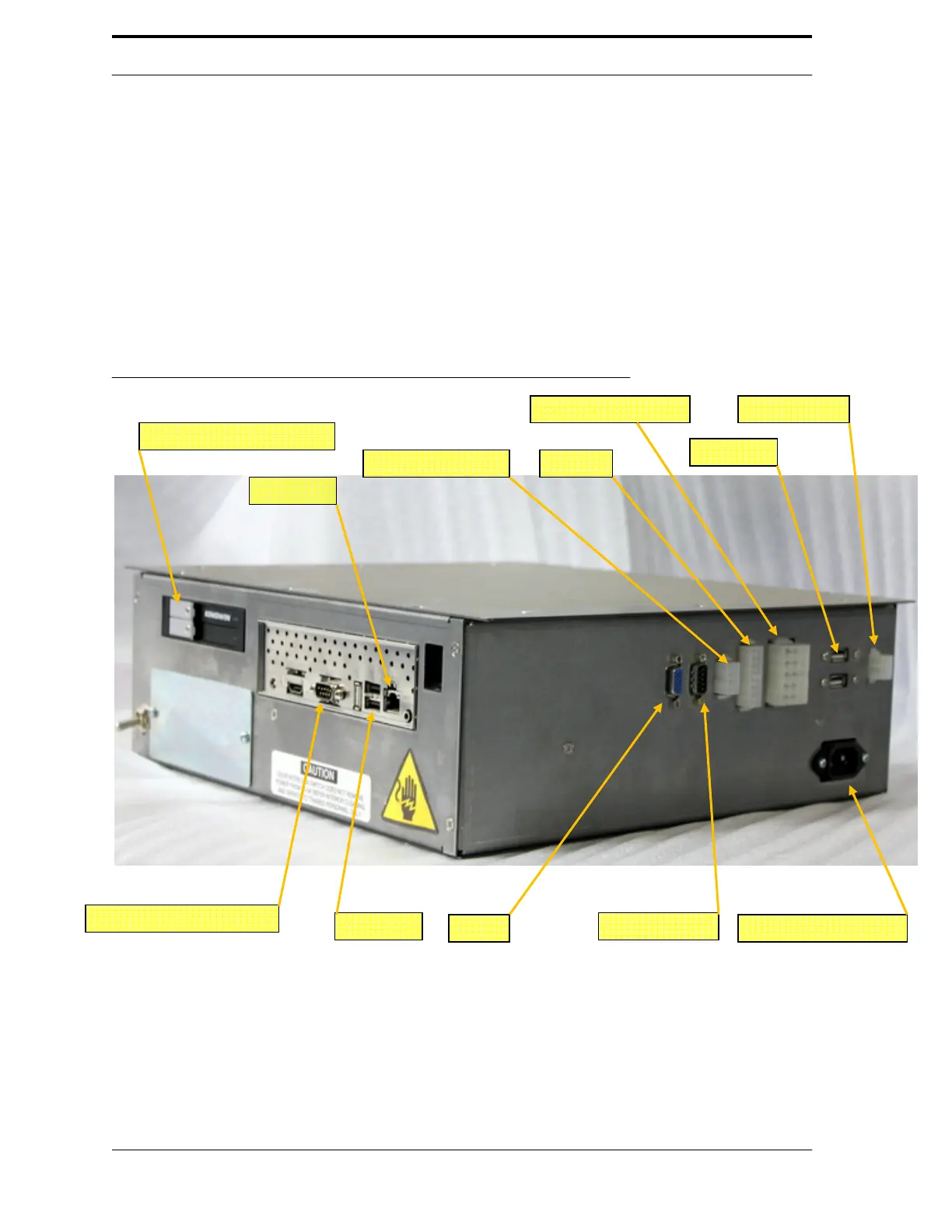

FIGURE 3-15. RVM Controller Box Connectors
VGA
Scanner MUX
208-240V AC Power In
USB Ports
Laser Control
In-Feed
Sensor Scanner Array
RS-232 Printer Port Signal
USB Ports
RJ-45 LAN
HARD DRIVE ACCESS PANEL
REAR CONVEYOR
