3.7.2. RVM Controller Box Electronic Components
Figure 3-16 shows the locations of the electronic components of the RVM Controller Box, these
items are described in the sections below.

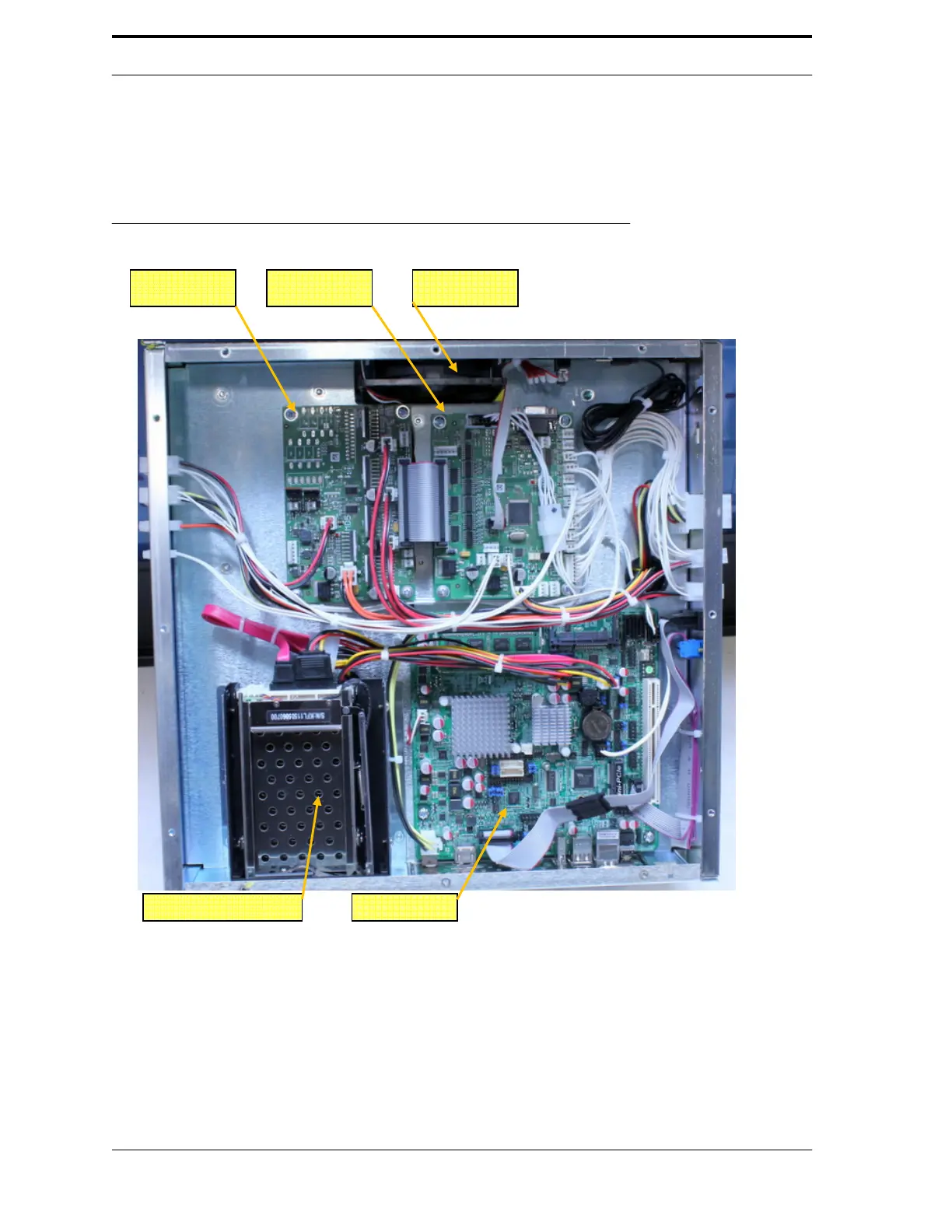

FIGURE 3-16. RVM Controller Box Electronic Components
PC Board
The PC board is a Mini- ITX circuit board that performs data processing, communications and also
controls the hardware controller boards. See Figure 3-17 on the next page for a diagram.
MD5 Board MC5 Board Cooling Fan
Hard Drive Enclosure
PC Board
