Envipco FLEX Series - PC Board Layout

Chapter 3
Hard
w
ar
e
Components
3
-
18

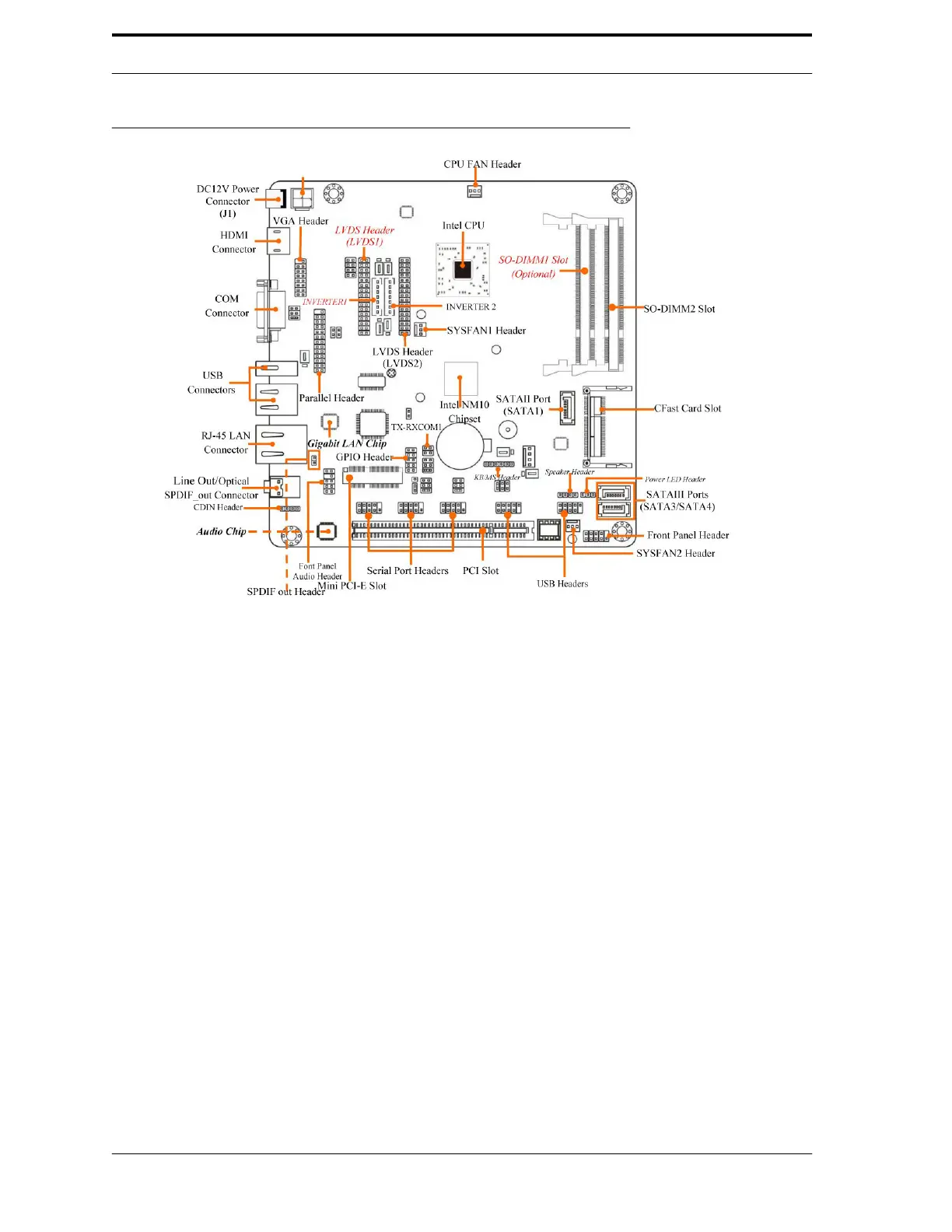

FIGURE 3-17. PC Board Layout
Hard Drive
The hard drive is connected to the PC board, and stores all of the RVM ’s data, including the bar code
table and counts, the RVM software, and RVM configuration.
Hardware Controller Boards
These custom boards control the motors in the FLEX . There are two (2) of these boards: MC 5, and
MD 5. For a detailed discussion of how these boards work in conjunction with the RVM software, see
Section “Software Theory of Operation” on page 4-23.
•
••
• MC 5 & MD 5 Boards - These two boards work together to control the In-Feed,
Sorting Cylinder, Conveyor, and receipt button. M C 5 also acts as an
uninterruptible power supply ( UPS ) controller to prevent data loss. See Section
“Battery Backup Feature” on page 3-17 for details. See Figure 3-18 and Figure
3-19 for the layouts of these boards.
