This functionality replaces the old mechanical motor protectors. It also soft-starts the compactor
motor: it starts with a 0.5 second acceleration, which prolongs the life of the compactor motor.

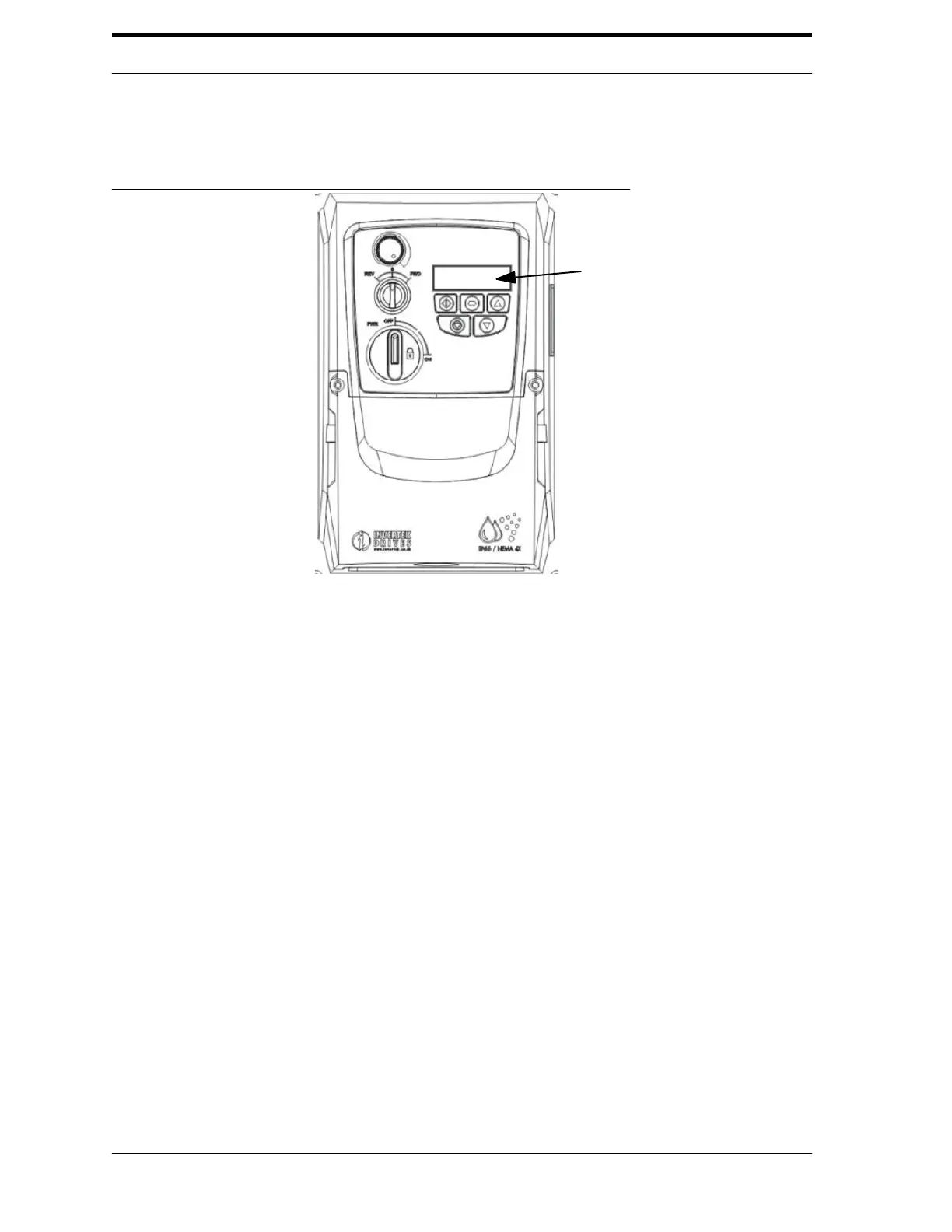

FIGURE 3-23. Variable Frequency Drive
Status Display
The VFD ’s status display lists messages that may help troubleshoot compactor stalls. For more
information, See Section 6.3 “ VFD Status Messages” on page 6-5.
3.8.3. Compactor 230V Three-Phase Connector
This is the output for the 230V three-phase power. The harness that provides power to the
compactor motor plugs into this connector.
3.8.4. 208-240V Single-Phase AC Power Output
This power output goes to the RVM Controller Box.
3.8.5. Safety Loop Override
The AC box key switch overrides the door interlock, so that you may run the compactor with the
front or rear cabinet door open. It is extremely important that the key is removed from this switch
when service is completed. If untrained people have access to this override, they may be seriously
injured by moving parts.
