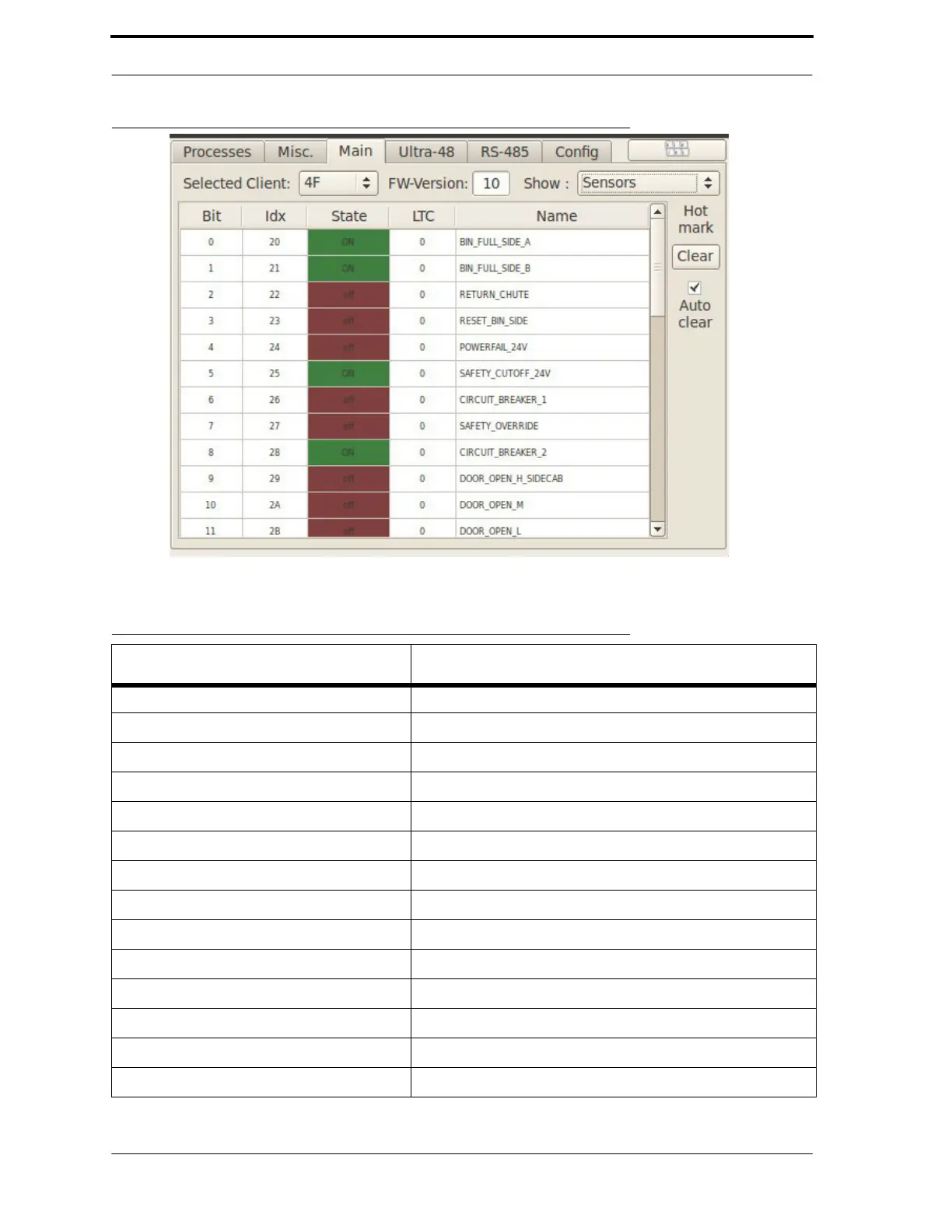

FIGURE 4-16. Main tab - Sensors
TABLE 4-1. MC1 Sensors
Sensor Description
BIN_A_FULL_SIDECAB Reports the status of the HDS bin full sensor.
BIN_B_FULL_SIDECAB Reports the status of a second HDS bin full sensor (if one exists).
RETURN_CHUTE Not used.
RESET_BIN_SIDECAB This reports the status of the bin count reset button of the HDS.
POWERFAIL_24V Reports whether MC1 detects an under-voltage on the 24V circuit.
SAFETY_CUTOFF_24V Reports OK if all of the open door sensors are closed.
CIRCUIT_BREAKER_1 Compactor 1 trip status.
SAFETY_OVERRIDE Set when safety bypass (key) is activated
CIRCUIT_BREAKER_2 Compactor 2 trip status.
DOOR_OPEN_H_SIDECAB Set when this door or OPEN_M or OPEN_L or SIDECAB/MC1sw is open.
DOOR_OPEN_M Set when this door or OPEN_L or SIDECAB/MC1sw is open.
DOOR_OPEN_L Set when this door or SIDECAB/MC1sw is open.
_RESERVED_INPUT Reserved.
DOOR_OPEN_SIDECAB Set when this door or the MC1-safety-loop-breaker is open.
