5050 CONTROL UNIT
Technical Manual & Cabling Instructions
37 / 92
19.10.2012
5050 / MAN000539
Epec Oy reserves all rights for improvements without prior notice
Epec Oy Postiosoite/Postal address Puhelin/Phone Fax Internet
Tiedekatu 6 PL/P.O.Box 194 +358-(0)20-7608 111 +358-(0)20-7608 110 www.epec.fi
FIN-60320 Seinäjoki FIN-60101 Seinäjoki, Finland
4.6 Reference Voltage Supply Pins
4.6.1 +5V REF_Type015
This is internally regulated and monitored reference voltage supply for external devices.
This reference output can be switched on/off by application.
Overload protection
If the output current exceeds the nominal output current, then the output voltage is less than
specified voltage level.
Voltage monitoring
The level of the output voltage can be monitored by application.
Electrical characteristics
Symbol Parameter Conditions Min Max Units
V
oLevel
Output voltage
Output On, Unconnected pins
typ. 5,0
V
I
o
Nominal Output Current
Output On,
VDC
LOGIC
= 8,3 - 36 V
V
oLevel
≥ 4,75
0 350 mA
C
o
Output Capacitance
On each pin
typ. 47
nF
V
I-max
Max Input voltage
Overload conditions (Note 1)
-0,5
50
V
Voltage monitoring
V
o-range
Nominal Voltage
measuring range
0 28,5 V
V
o-prop
Measuring accuracy
Proportional factor
Calculated +/-1 %
V
o-zero
Offset Error Calculated
+/-0,1
%
+/-28,5
mV
Note 1: When output voltage is under overload conditions for example short circuit to supply
voltages. Exceeding the max value might cause damage to output.

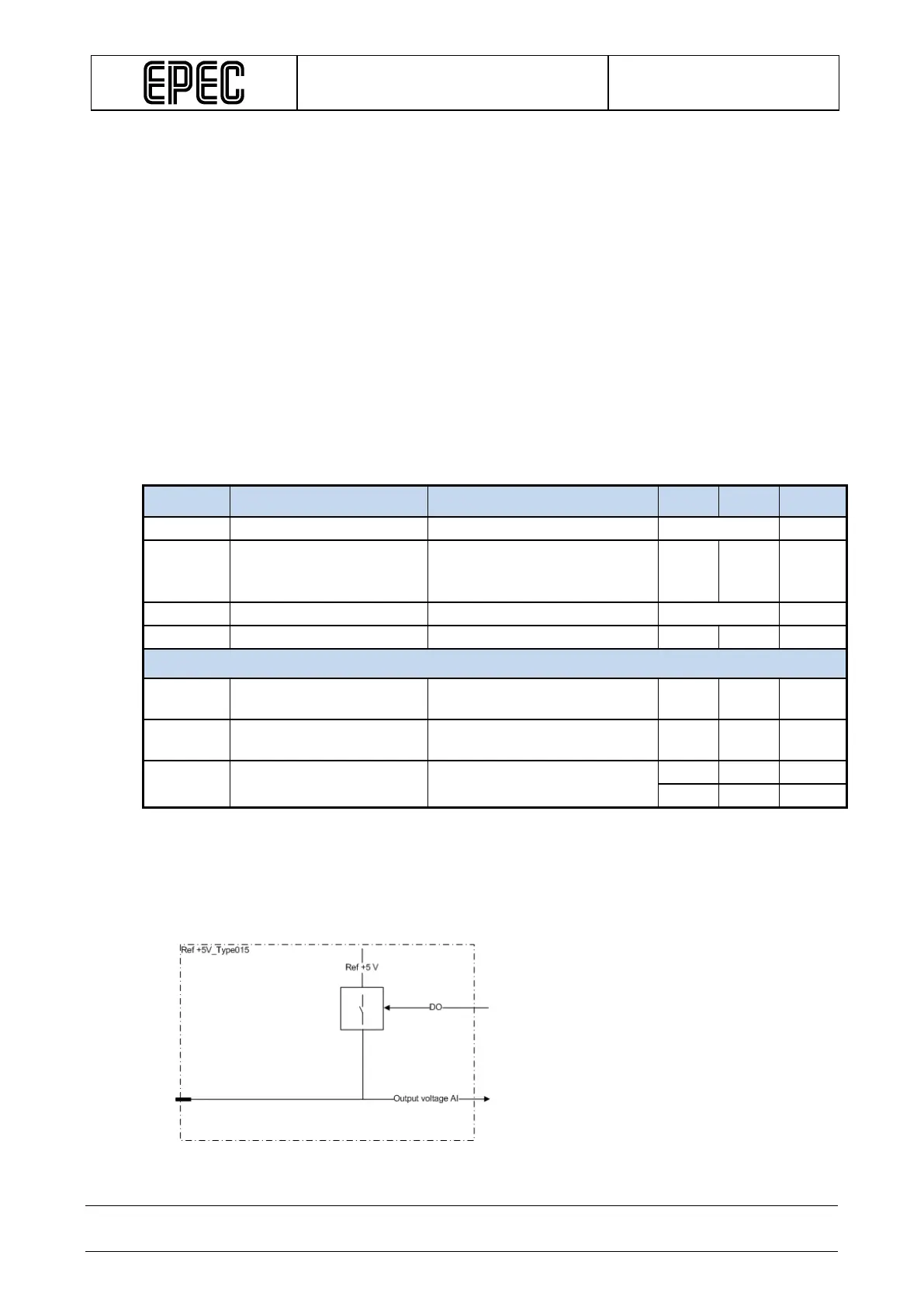

Functional block diagram
