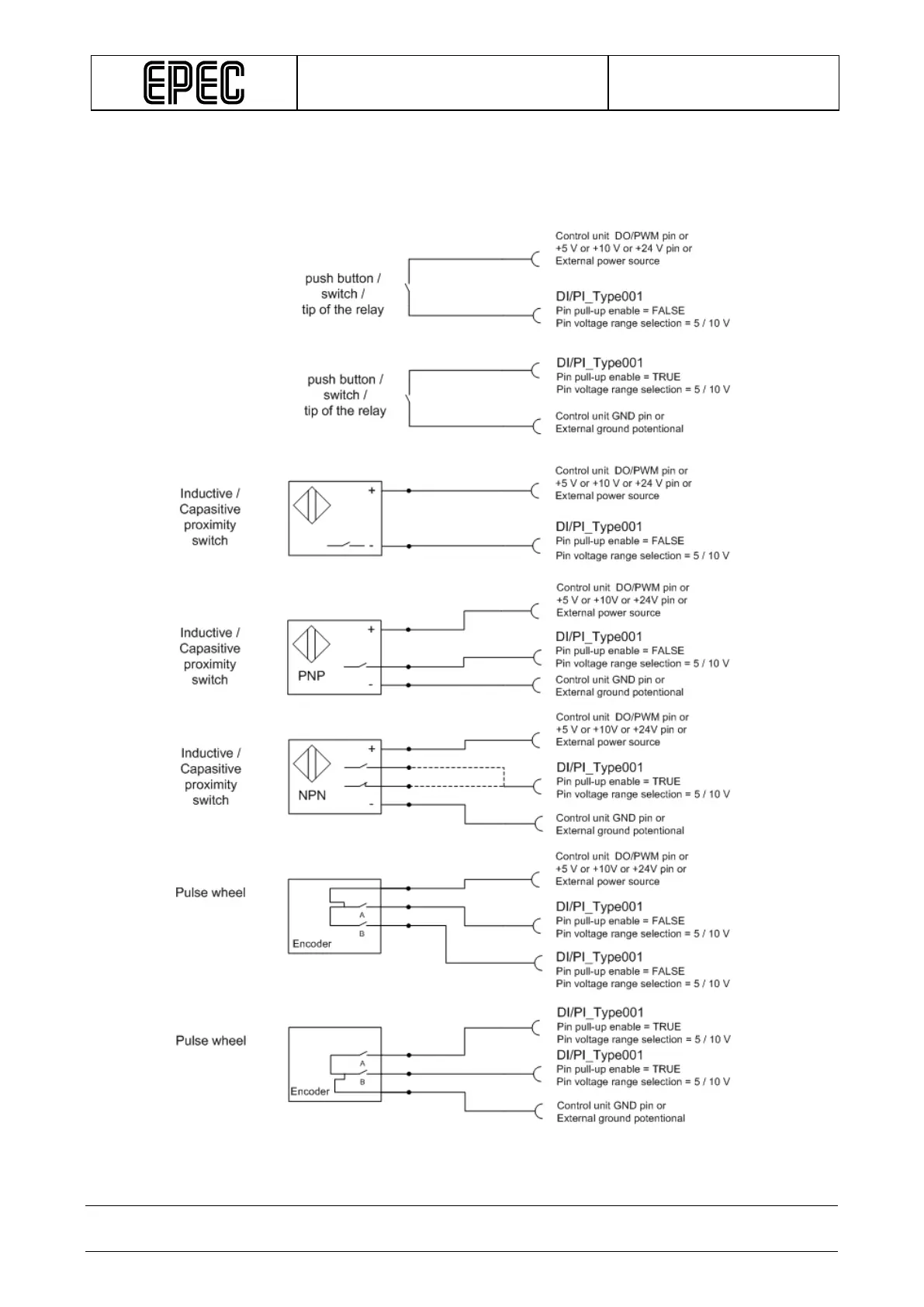

4.7.1 Connection Examples for DI/PI_Type001
The following figures show examples on how to connect some external actuators when using
the DI/PI_Type001 pin:
