5050 CONTROL UNIT
Technical Manual & Cabling Instructions
19.10.2012
Epec Oy reserves all rights for improvements without prior notice
Epec Oy Postiosoite/Postal address Puhelin/Phone Fax Internet
Tiedekatu 6 PL/P.O.Box 194 +358-(0)20-7608 111 +358-(0)20-7608 110 www.epec.fi
FIN-60320 Seinäjoki FIN-60101 Seinäjoki, Finland
2 PRODUCT OVERVIEW

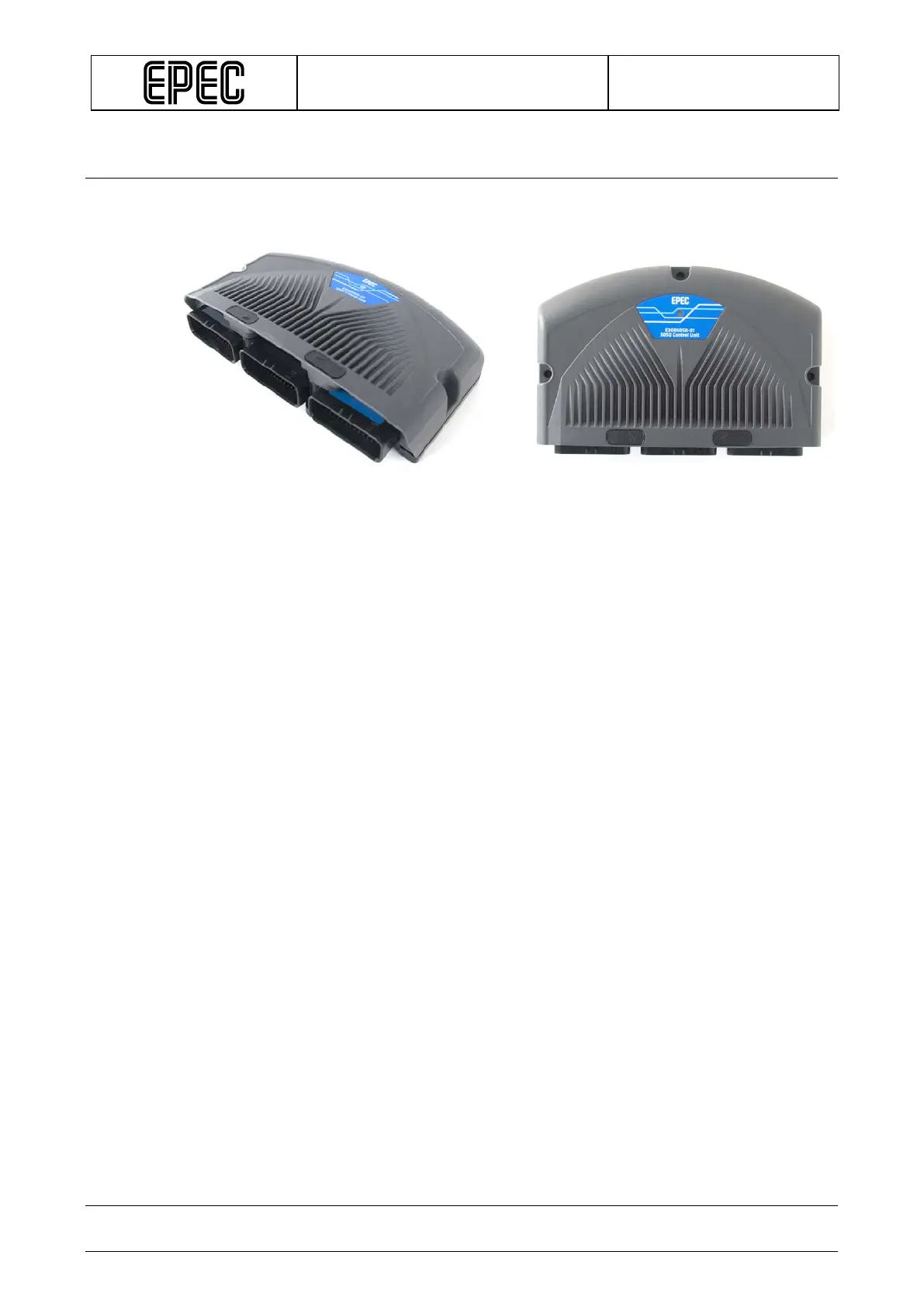

Epec 5050 Control Unit is a compact, powerful and robust multifunction controller with 32-bit
processor and efficient calculating power. Epec 5000 product platform is fully compatible to the
existing Epec product portfolio. Some of the advances of the Epec 5050 Control Unit are listed
below.
Multifunctional Efficiency
• A powerful multifunction controller
• 32-bit processor
• increased calculating power
• floating point calculation
• Can be used used in a CAN control unit system as a multifunction controller with
different kinds of sensors and actuators, such as
• proportional valves,
• servo motors, and
• electro-hydraulic components
• Provides control system solutions for both centralized and distributed intelligence
systems
• Fully compatible with the existing Epec product portfolio
Mechanics & hardware
• Robust, light and leak proof aluminium/plastic cover has been widely tested against
different chemicals and environmental conditions
• The shape of the casing works to protect the electronics inside against mechanical
wear.
• Three point anchorage confirms firm mounting also on irregular surfaces
• Signal LED for quick status check and fault detection
• Equipped with gold plated, heavy duty AMPSEAL connectors
• Each connector is color coded and mechanically keyed to fit only to the correct,
corresponding place
• One CAN is equipped with double pins, which makes cabling easier since there is no
need for branches in the wire harness.
• Made in Finland
