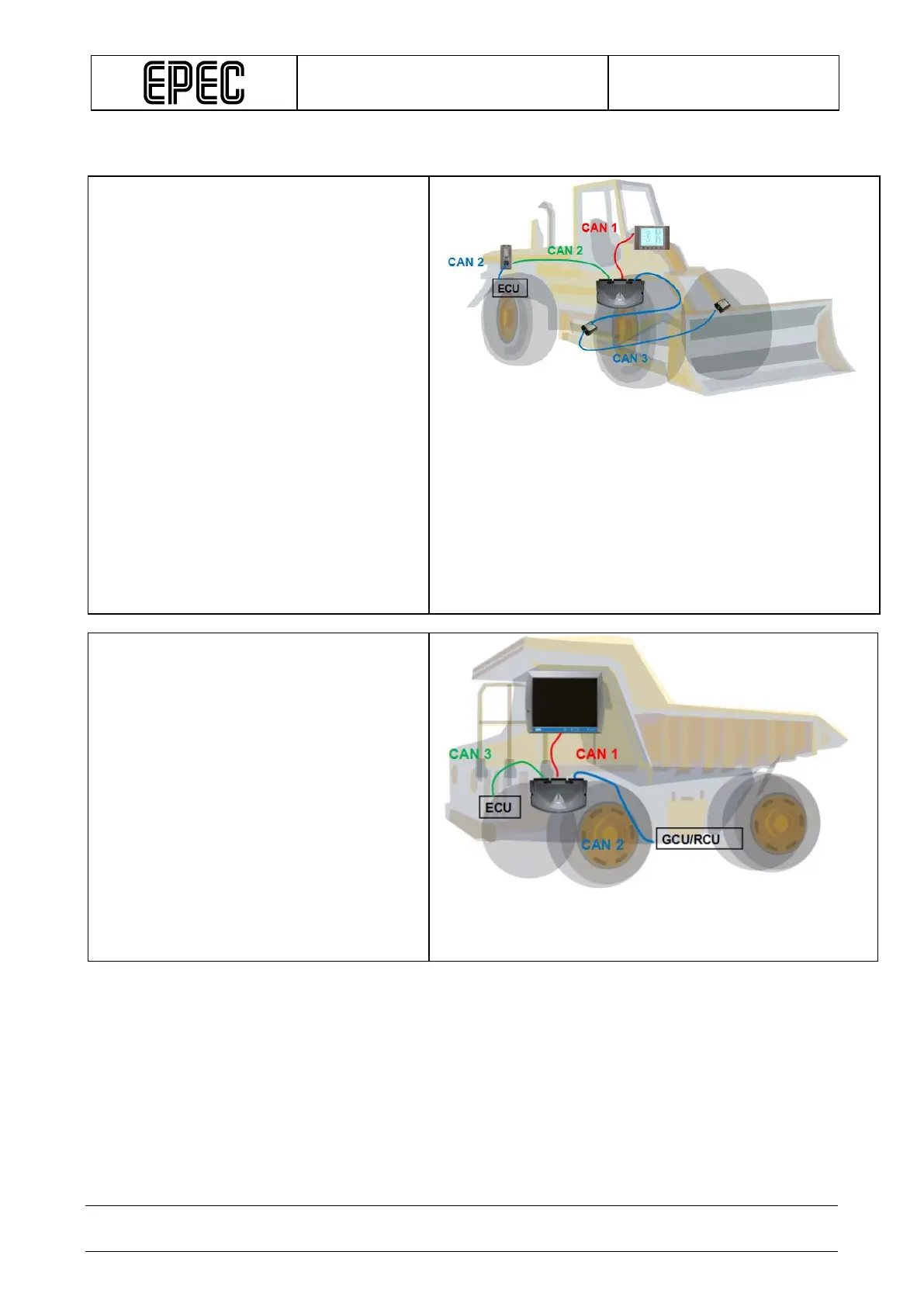

8.4.7 System Examples
Loading machine
Cabin control unit
• reads the joysticks and switches
• controls the boom and bucket
• controls the gearing
• controls the steering and brakes
• controls the lights
Rear frame control unit
• controls the engine
• controls the hydraulic pumps
• controls the rear lights
Tilt sensors
• measures the frame position
• measures the loader position
Display
• gauge
• diagnostics
• software updating
Dumper
Cabin control unit
• reads the joysticks and switches
• controls the engine
• controls the gearing
• controls the driveshaft brake
• controls the steering and brakes
• controls the skip can
Display
• remote connection
• positioning
• gauge
• diagnostics
• software updating
