4.7.8 Connection Examples for AI/DI_Type011
Connection examples when using AI mode

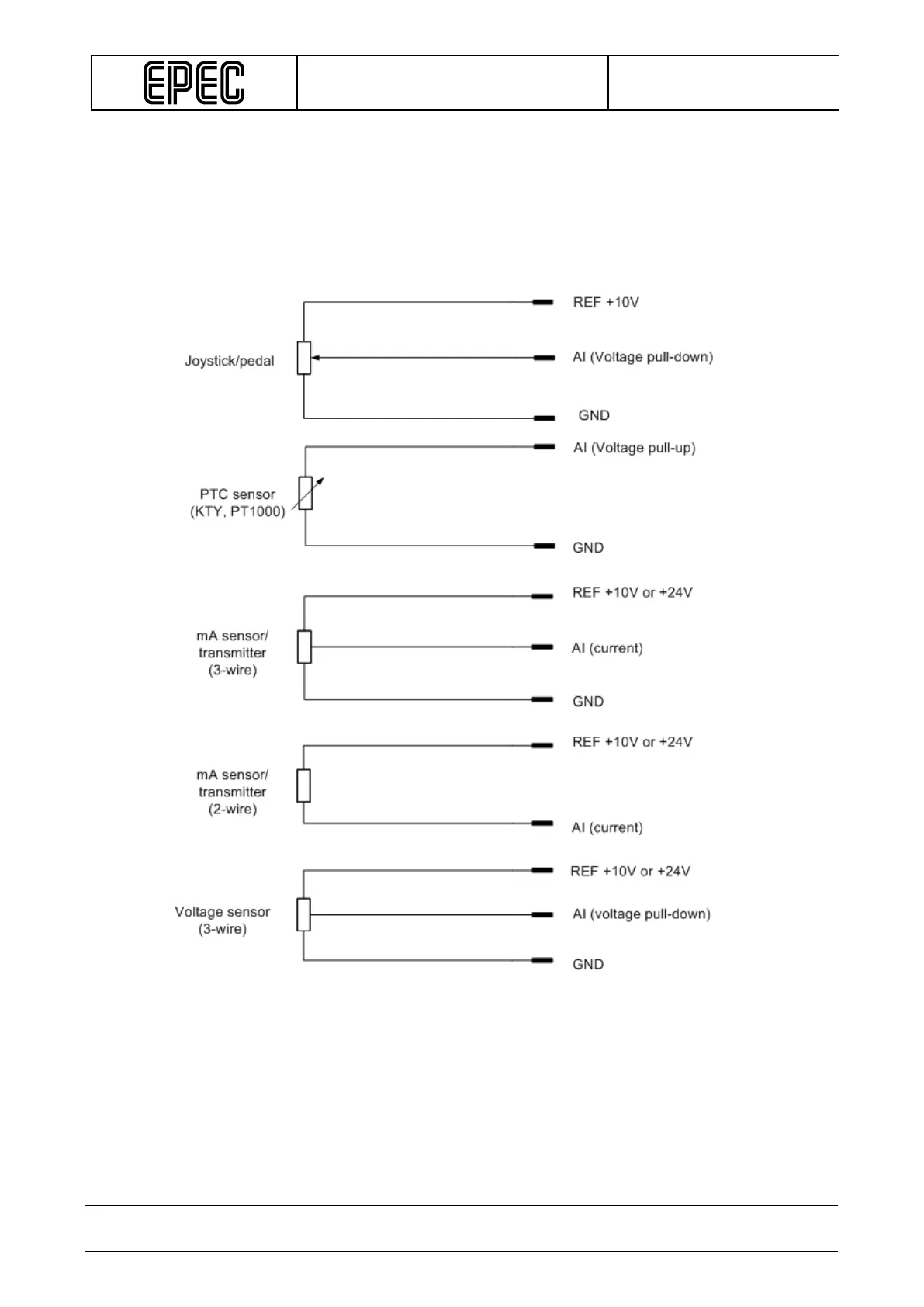

The following figures show examples on how to connect some external actuators when using
the pin in AI mode:
