5050 CONTROL UNIT
Technical Manual & Cabling Instructions
19.10.2012
Epec Oy reserves all rights for improvements without prior notice
Epec Oy Postiosoite/Postal address Puhelin/Phone Fax Internet
Tiedekatu 6 PL/P.O.Box 194 +358-(0)20-7608 111 +358-(0)20-7608 110 www.epec.fi
FIN-60320 Seinäjoki FIN-60101 Seinäjoki, Finland
8.4.5 Power supply
The maximum continuous current per pin is 10 A.
• The nominal operating voltage for Epec modules is 12 and 24 VDC. The full operating
range is 8,3 - 36VDC.
• See section
Power supply pins and limitations in technical document for accurate pin
allocation of the connectors when using Epec 5050 control unit.
• Single point grounding should be used for power supply for all the control units.

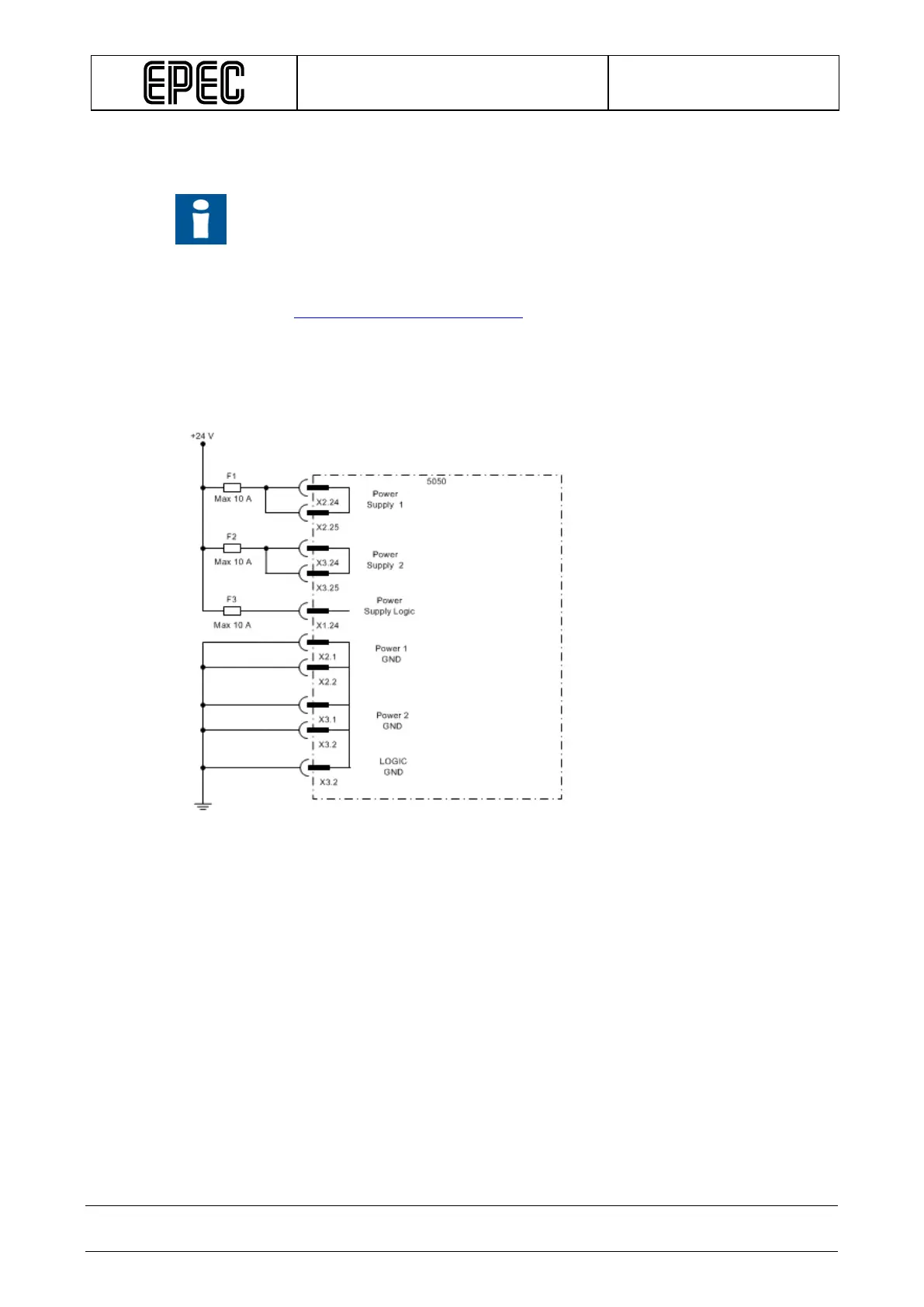

Power supply's wiring example when max 10 A is needed from Power 1 and Power 2:
