3.3 Afdekkingmotor aansluitingen
MAX 10A 24VDC
*It may be necessary to put 2 wires under 1 terminal. Does not fit this, but can branch from 1 wire.

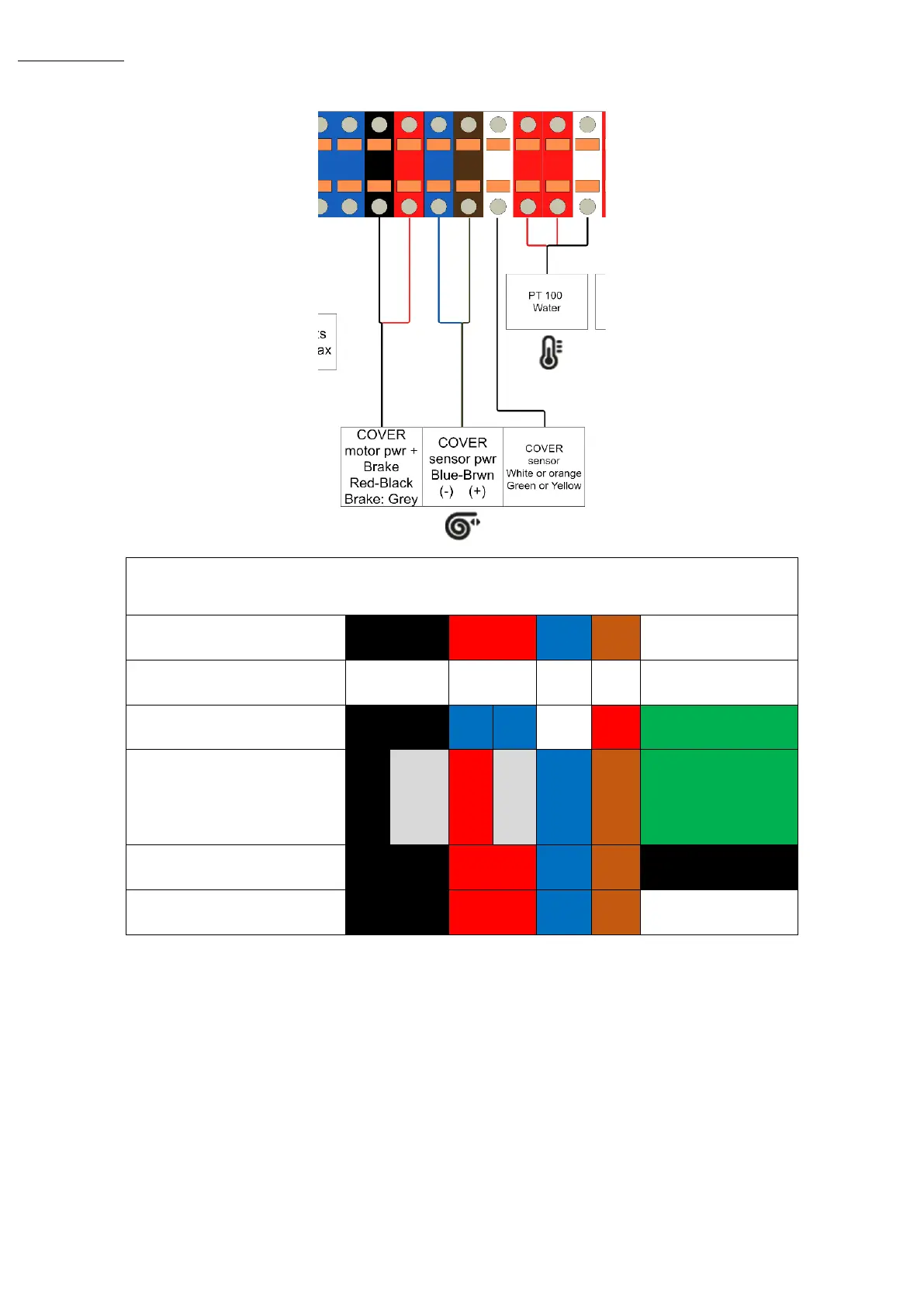

Match the corresponding color in the table to the color of the terminal strip on the Nexus:
NEXUS
24VDC
motor
24VDC
motor
-12V
-24V
+12V
+24V
ENCODER
Roldeck
24-
24+
-12V
+12V
A
Mecatec/binder 24
24-
Brk
24+
Brk
W
-12V
+12V
ENC
Aquadeck
T&A
PCS (PoolCoverSystems)
Hellodeck
24-
Brk
24+
Brk
-12V
+12V
ENC
my-pool-covers/
Unicum
24-
24+
-12V
+12V
ENC
Covrex – Sirem - soldeck
24-
24+
-24V
+24V
ENC
