EPS NEXUS - Grounding

EPS NEXUS Manual V1.5.2 EN WWW.EPSBV.EU 23

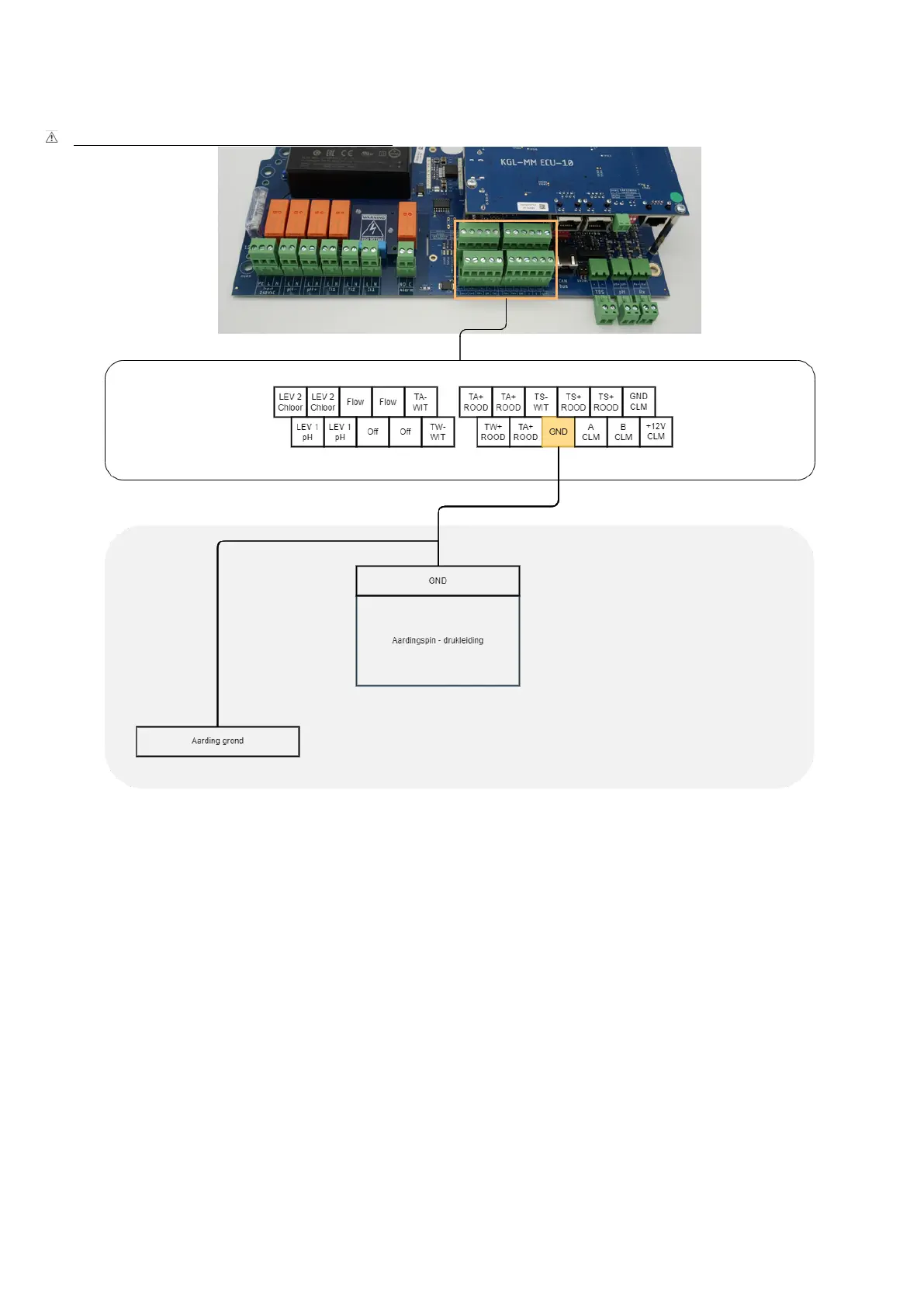

3.6.3 grounding
Always connect a separately minted ground pin to the provided ground pin. On the EPS ALL-IN-ONE Touch, this pin is always in the 5-in-1
sampling pot.
Do not use wire thicker than 1.5 mm2 for between the ground pin and GND.
Never use the ground of the electrical installation
