EB-L1070
A

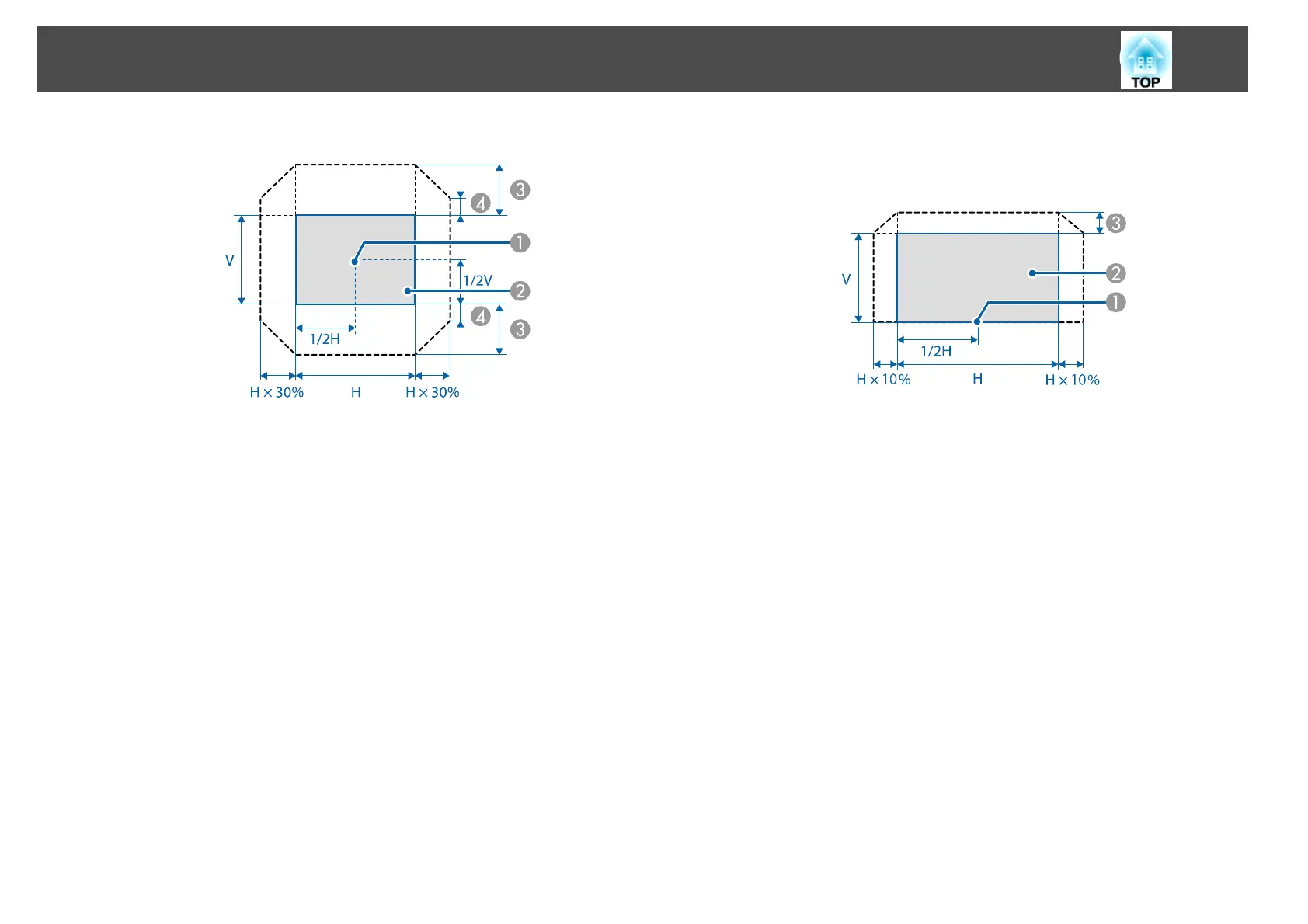

Center of lens
B
Projected image when the lens position is moved to the home
position
C
Maximum motion range: V x 57%
D
When the horizontal direction is at the maximum value: V x 16%
When using ultra-short focus lens ELPLX01/ELPLX01W
EB-L1075U/EB-L1070U/EB-L1065U/EB-L1060U/EB-L1050U/EB-L1070W/
EB-L1060W
A
Center of lens
B
Projected image for positional reference
C
Maximum motion range: V x 17%
* When the horizontal direction is at the maximum value, the image
cannot be moved up.
Installing the Projector
35
