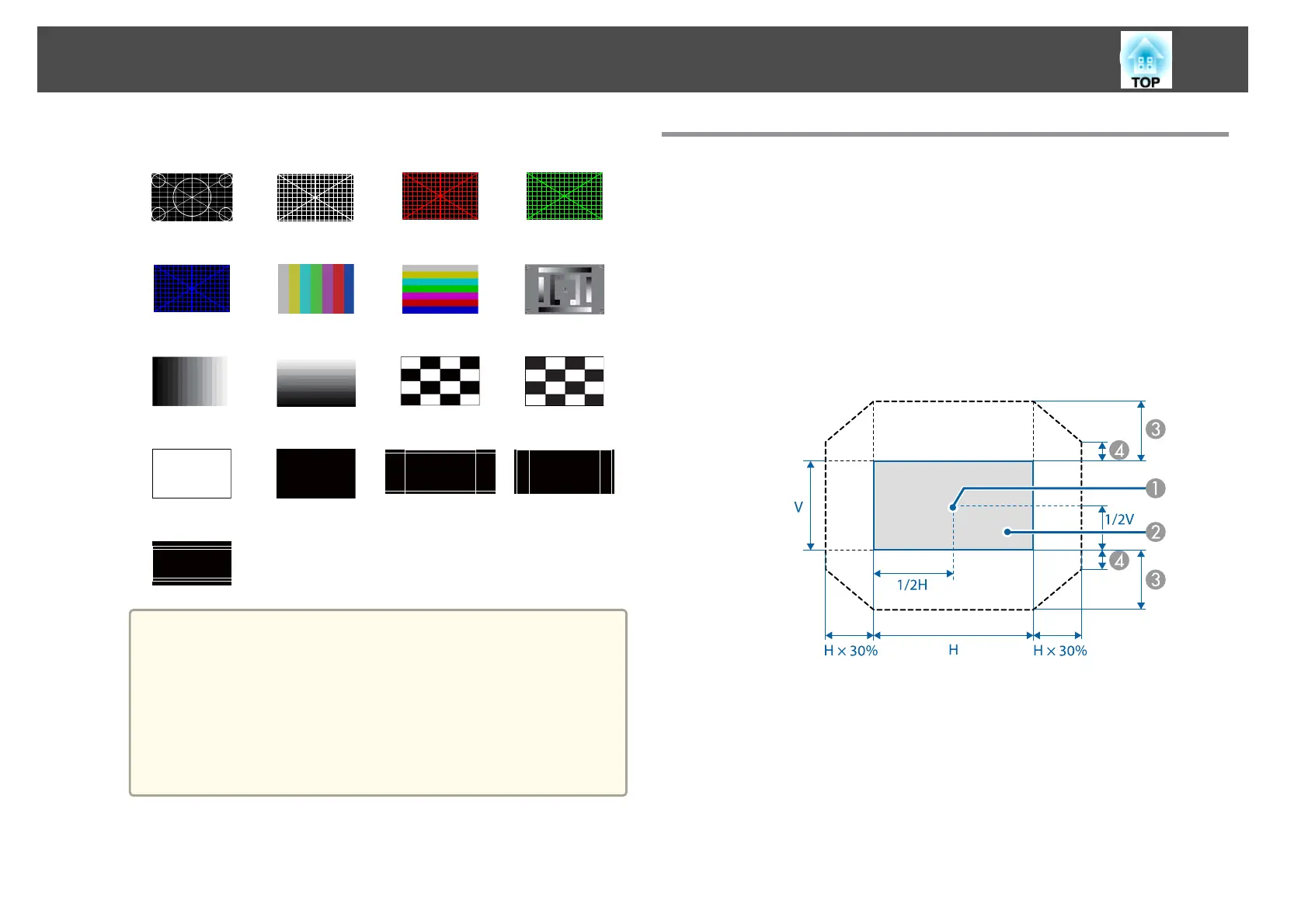

Standard Cross-hatching
Cross-hatching
R
Cross-hatching
G
Cross-hatching
B Color Bars V Color Bars H Grayscale
Gray Bars V Gray Bars H
Checkerboard
1
Checkerboard
2
White Black
16:10 Aspect
Frame
16:9 Aspect
Frame
4:3 Aspect
Frame
a
• To set menu items that cannot be set while the test pattern is
being displayed or to fine-tune the projected image, project an
image from the connected device.
• During image adjustment, press the [Page] buttons [[] []]
on the remote control to change the test pattern.
• You can also select a test pattern from the Configuration
menu.
s Settings - Test Pattern p.143
c
Press the [Esc] button to close the test pattern.
Adjusting the Position of the Projected Image
(Lens Shift Adjustment)
The lens can be shifted to adjust the position of the projected image, for
example, when the projector cannot be installed directly in front of the
screen.
The ranges within which the image can be moved are shown below. The
position of the projected image cannot be moved to both the horizontal and
vertical maximum values.
EB-L1075U/EB-L1070U/EB-L1065U/EB-L1060U/EB-L1050U/EB-L1070W/
EB-L1060W
A
Center of lens
B
Projected image when the lens position is moved to the home
position
C
Maximum motion range: V x 67%
D
When the horizontal direction is at the maximum value: V x 19%
