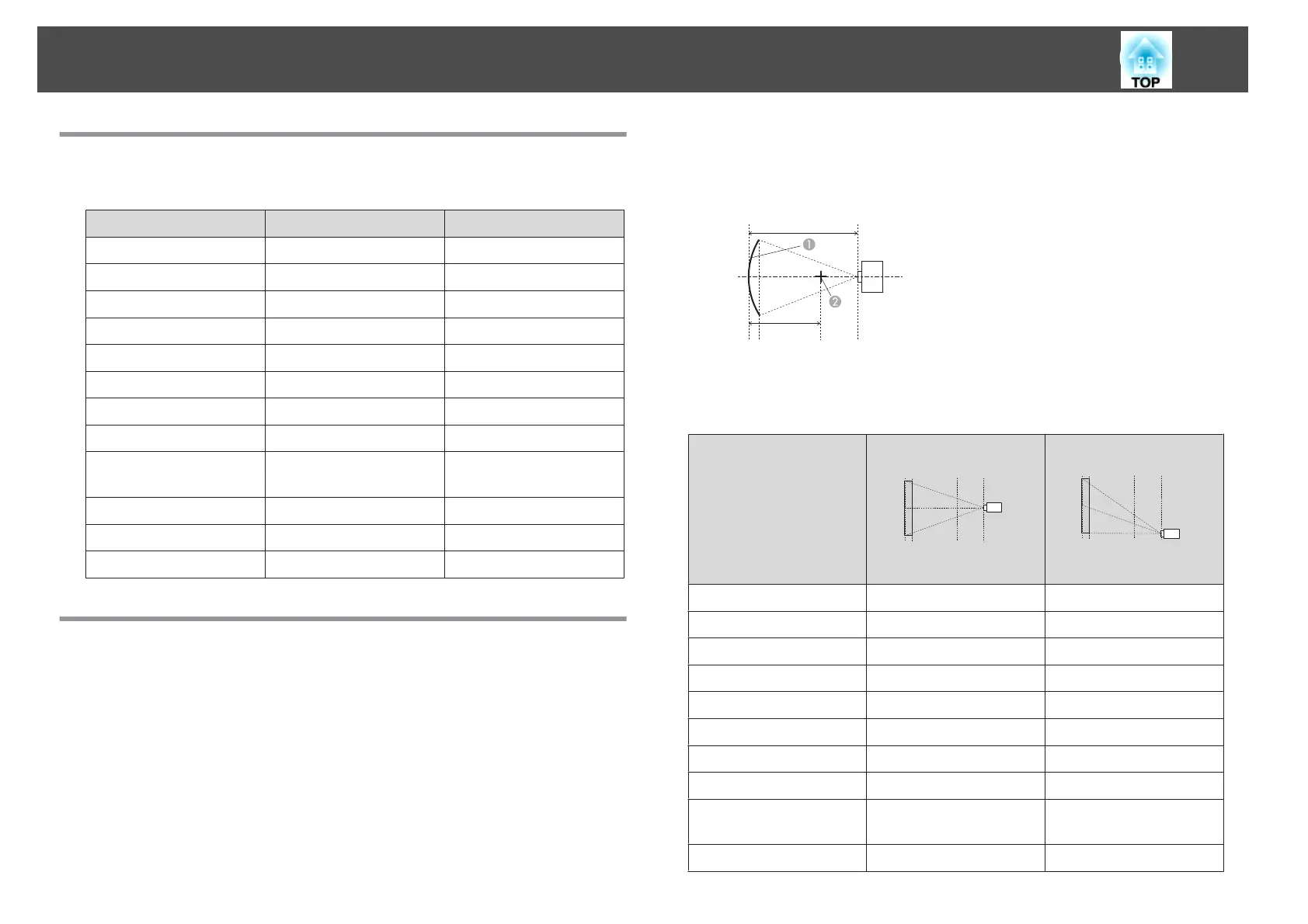

Epson EB-L1075U - Adjustment Range for Projected Images; H;V-Keystone; Curved Surface

H/V-Keystone
s "H/V-Keystone" p.65
Lens type Vertical Horizontal
ELPLM08 -45˚ to 45˚ -30˚ to 30˚
ELPLX01/ELPLX01W -16˚ to 16˚ -16˚ to 16˚
ELPLU03 -28˚ to 28˚ -28˚ to 28˚
ELPLU04/ELPLU02 -35˚ to 35˚ -30˚ to 30˚
ELPLR04 -34˚ to 34˚ -30˚ to 30˚
ELPLW05 -40˚ to 40˚ -30˚ to 30˚
ELPLW06/ELPLW04 -45˚ to 45˚ -30˚ to 30˚
ELPLW08 -40˚ to 40˚ -30˚ to 30˚
ELPLM15/ELPLM09/
ELPLS04
-45˚ to 45˚ -30˚ to 30˚
ELPLM10/ELPLM06 -45˚ to 45˚ -30˚ to 30˚
ELPLM11/ELPLM07 -45˚ to 45˚ -30˚ to 30˚
ELPLL08/ELPLL07 -45˚ to 45˚ -30˚ to 30˚
Curved Surface
s "Curved Surface" p.67
The values in the table are the minimum values for R/L in the illustration.
(Approximate value when projecting at maximum zoom. ELPLR04 does not
support lens shift.)
EB-L1075U/EB-L1070U/EB-L1065U/EB-L1060U/EB-L1050U/EB-L1070W/
EB-L1060W
Horizontally curved surface (concave)
L
R
A
Screen
B
Center of the circle of which the
curved surface is an arc
L Projection distance
R Radius of the circle of which the
curved surface is an arc
Top view
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM08 0.29 0.30
ELPLX01/ELPLX01W - 2.74
ELPLU03 0.45 0.56
ELPLU04/ELPLU02 0.39 0.40
ELPLR04 0.37 -
ELPLW05 0.35 0.37
ELPLW06/ELPLW04 0.26 0.27
ELPLW08 0.33 0.34
ELPLM15/ELPLM09/
ELPLS04
0.21 0.22
ELPLM10/ELPLM06 0.15 0.15
Adjustment Range for Projected Images
