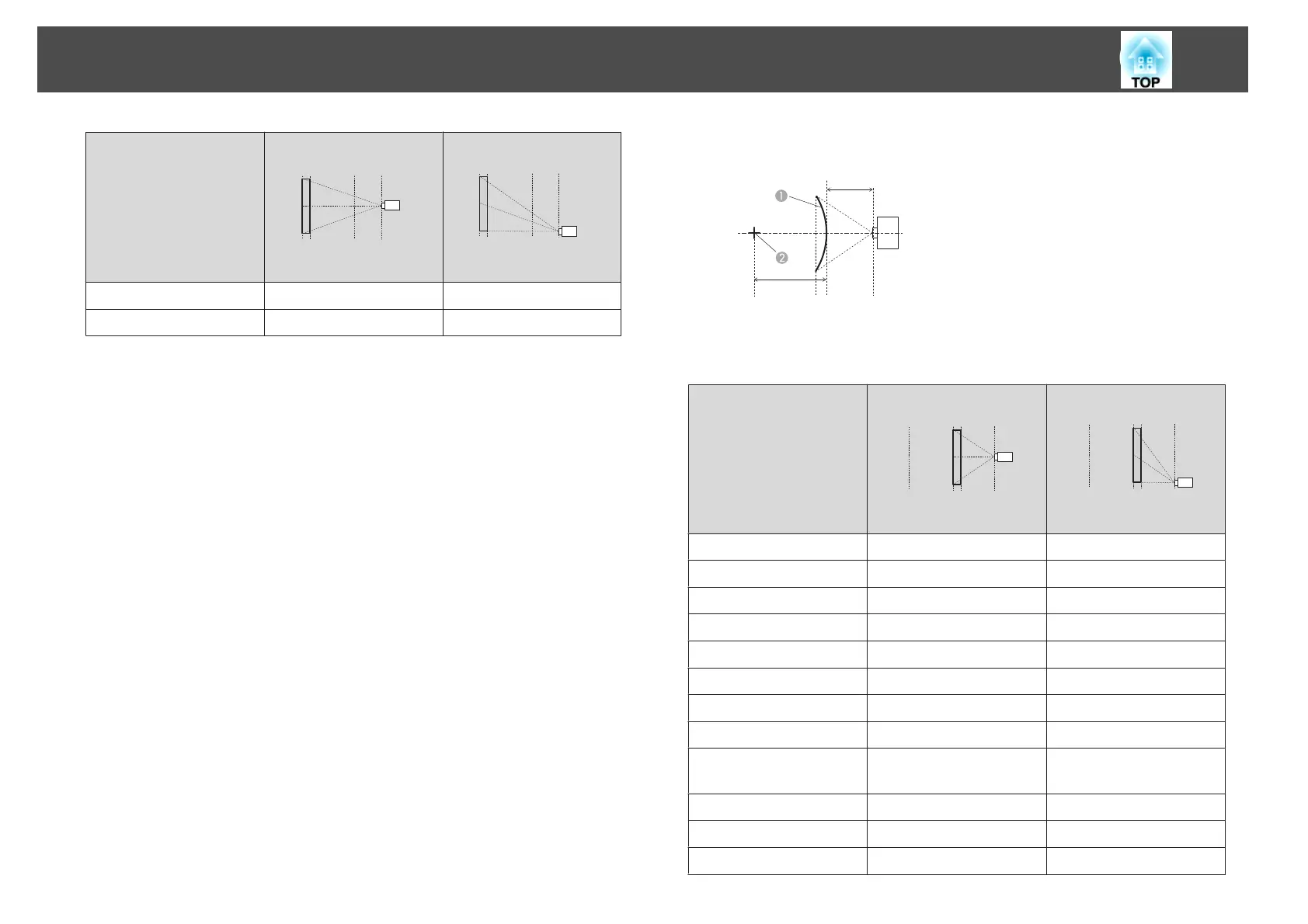

Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM11/ELPLM07 0.11 0.11
ELPLL08/ELPLL07 0.08 0.08
Horizontally curved surface (convex)
L
R
A
Screen
B
Center of the circle of which the
curved surface is an arc
L Projection distance
R Radius of the circle of which the
curved surface is an arc
Top view
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM08 0.58 0.62
ELPLX01/ELPLX01W - 3.52
ELPLU03 2.13 2.31
ELPLU04/ELPLU02 1.27 1.37
ELPLR04 1.10 -
ELPLW05 0.95 1.01
ELPLW06/ELPLW04 0.49 0.52
ELPLW08 0.79 0.84
ELPLM15/ELPLM09/
ELPLS04
0.33 0.35
ELPLM10/ELPLM06 0.20 0.20
ELPLM11/ELPLM07 0.13 0.13
ELPLL08/ELPLL07 0.09 0.09
Adjustment Range for Projected Images
