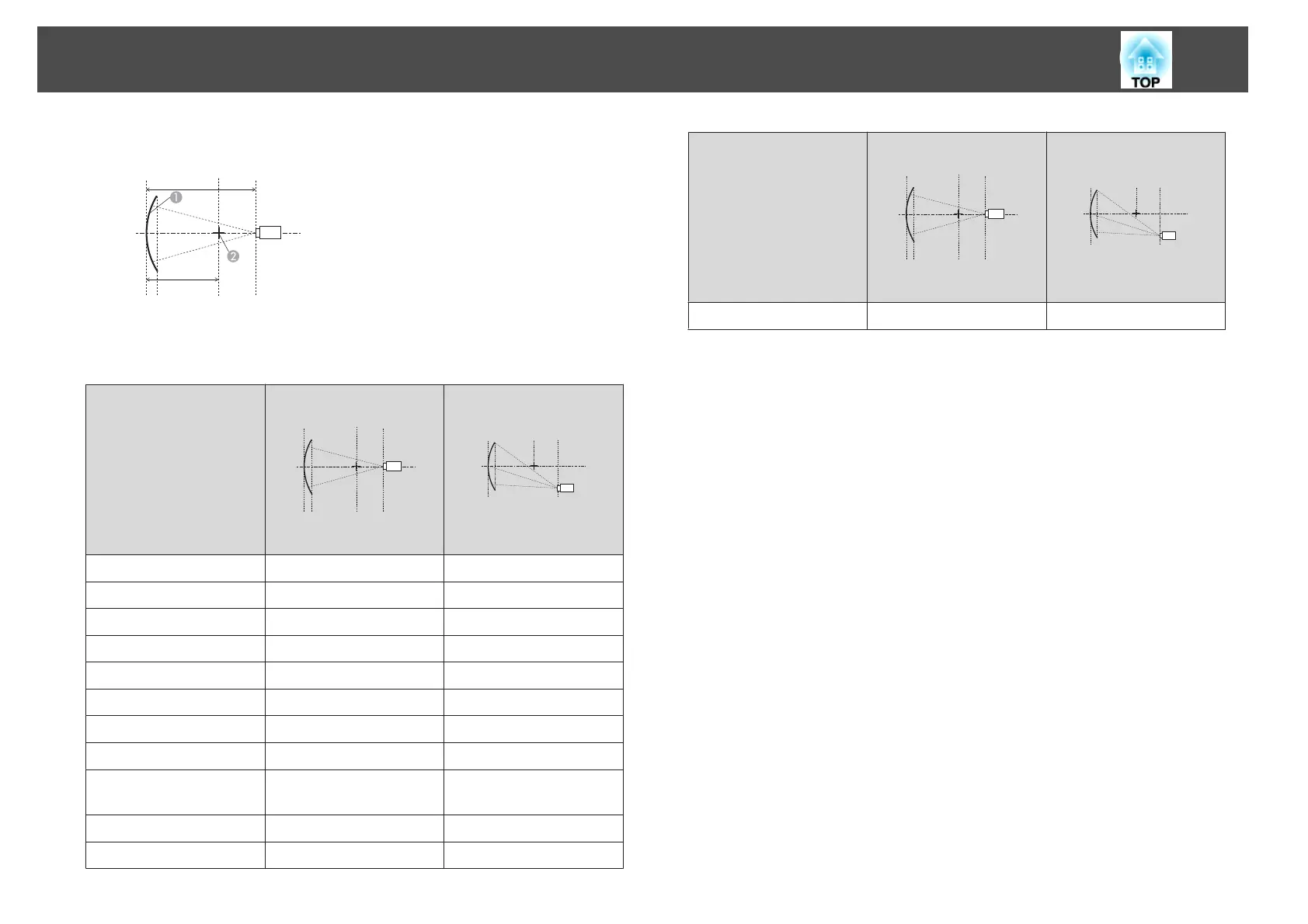

Vertically curved surface (concave)
L
R
A
Screen
B
Center of the circle of which the
curved surface is an arc
L Projection distance
R Radius of the circle of which the
curved surface is an arc
Side view
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM08 0.21 0.25
ELPLX01/ELPLX01W - 1.98
ELPLU03 0.37 0.67
ELPLU04/ELPLU02 0.31 0.43
ELPLR04 0.29 -
ELPLW05 0.27 0.35
ELPLW06/ELPLW04 0.19 0.22
ELPLW08 0.25 0.31
ELPLM15/ELPLM09/
ELPLS04
0.15 0.17
ELPLM10/ELPLM06 0.11 0.11
ELPLM11/ELPLM07 0.08 0.08
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLL08/ELPLL07 0.06 0.06
Adjustment Range for Projected Images
