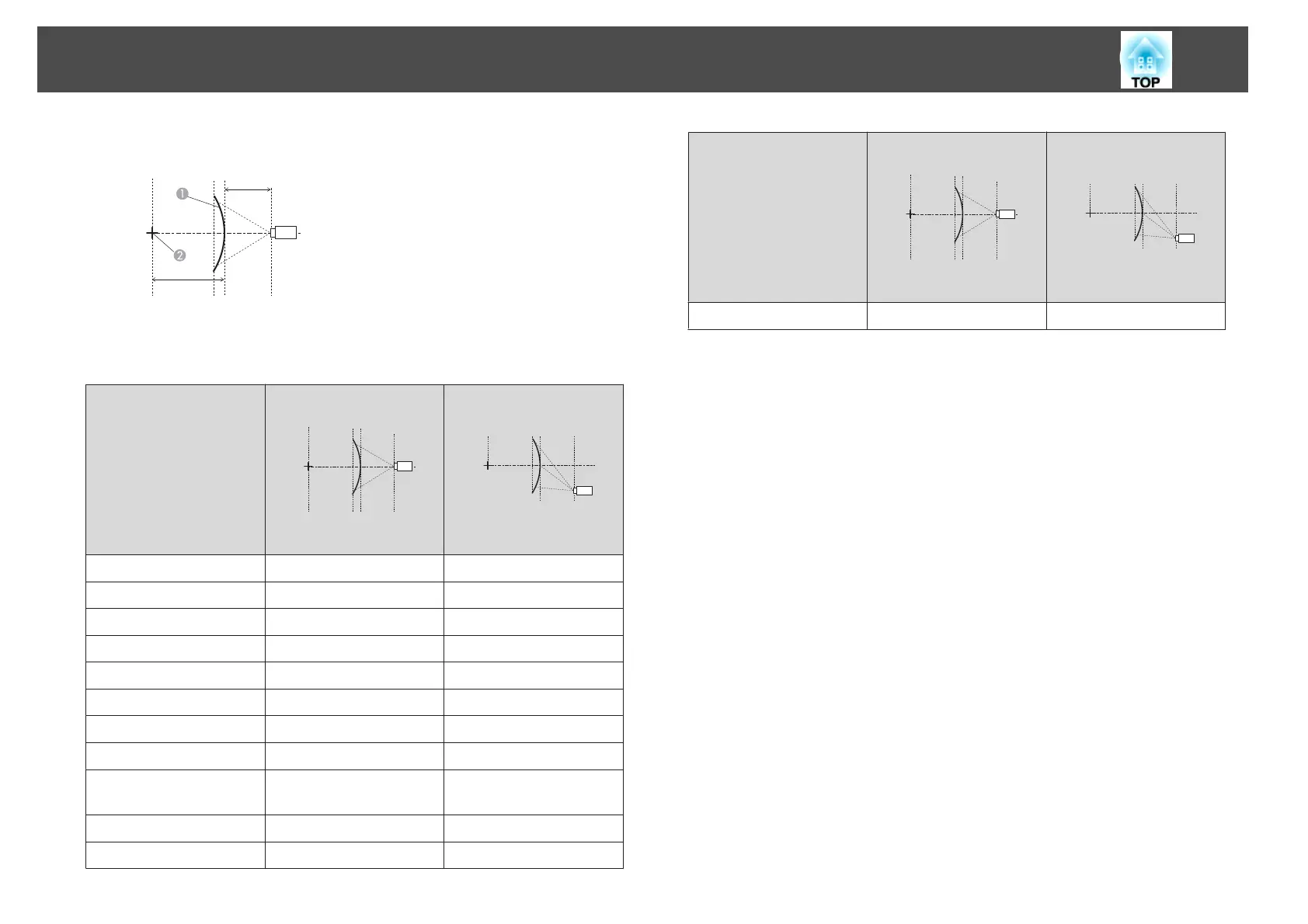

Vertically curved surface (convex)
L
R
A
Screen
B
Center of the circle of which the
curved surface is an arc
L Projection distance
R Radius of the circle of which the
curved surface is an arc
Side view
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLM08 0.31 0.37
ELPLX01/ELPLX01W - 3.52
ELPLU03 1.07 1.29
ELPLU04/ELPLU02 0.65 0.79
ELPLR04 0.57 -
ELPLW05 0.49 0.59
ELPLW06/ELPLW04 0.26 0.32
ELPLW08 0.42 0.50
ELPLM15/ELPLM09/
ELPLS04
0.18 0.22
ELPLM10/ELPLM06 0.12 0.13
ELPLM11/ELPLM07 0.08 0.09
Lens type Vertical lens shift:
Home position
Side view
Vertical lens shift: Top
Side view
ELPLL08/ELPLL07 0.06 0.06
Adjustment Range for Projected Images
