f
Set Pattern Guide to On.
(1)
Select Pattern Guide, and then press the [
] button.
(2)
Select On, and then press the [
] button.
(3) Press the [Esc] button.
g
Set Top Edge, Bottom Edge, Left Edge, or Right Edge according
to the parts of the image that are overlapped.

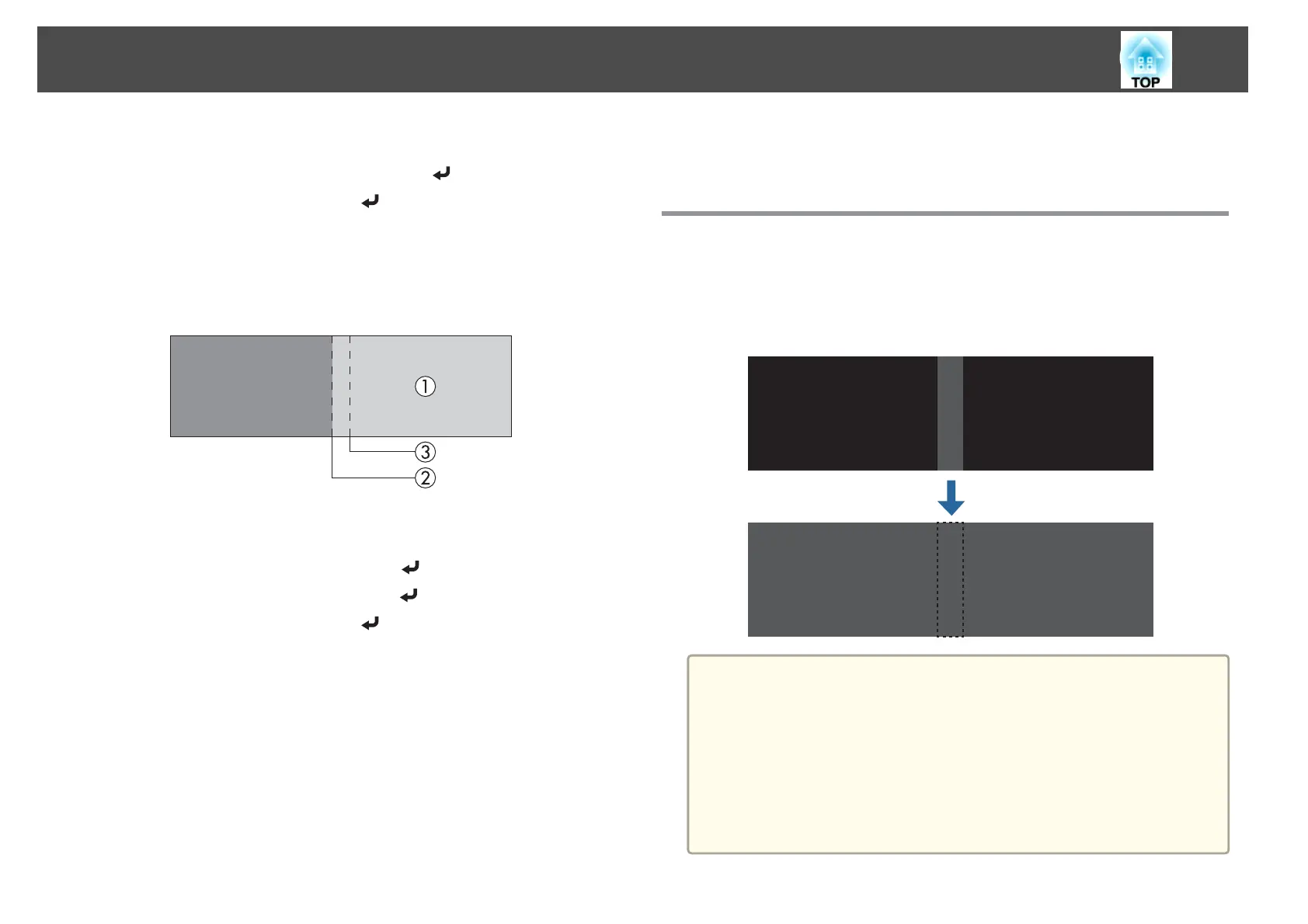

The following shows how to set screen (1) as an example.
In the example above, you need to adjust the Left Edge because you
can see the overlapping areas on the left side of the image (1).
(1)
Select Left Edge, and then press the [
] button.
(2)
Select Blending, and then press the [
] button.
(3)
Select On, and then press the [
] button.
(4) Press the [Esc] button.
(5) In Blend Start Position, align the blending start position with the edge (2)
of the image.
(6) Press the [Esc] button.
(7) In Blend Range, adjust the range (3) to be shaded.
The value for when the overlapped range and the guide are in the same
position is the best.
(8) In Blend Curve, adjust how to apply shading.
(9) Press the [Esc] button.
h
After the settings are complete, set Line Guide and Pattern Guide
to Off to finish.
Black Level
When a black image is displayed, only areas where the images overlap
stands out. The black level function allows you to match the brightness and
tone for areas where the images do not overlap with areas where the images
overlap, to make the difference less noticeable.
a
• You cannot adjust the Black Level when a test pattern is displayed.
• If the Geometry Correction value is large, you may not be able to
adjust correctly.
• The brightness and tone may differ in areas where the images
overlap as well as in other areas even after performing black level
adjustment.
• If you change the Top Edge/Bottom Edge/Right Edge/Left Edge
setting, the Black Level is returned to its default value.
s "Edge Blending" p.91
Multi-Projection Function
93
