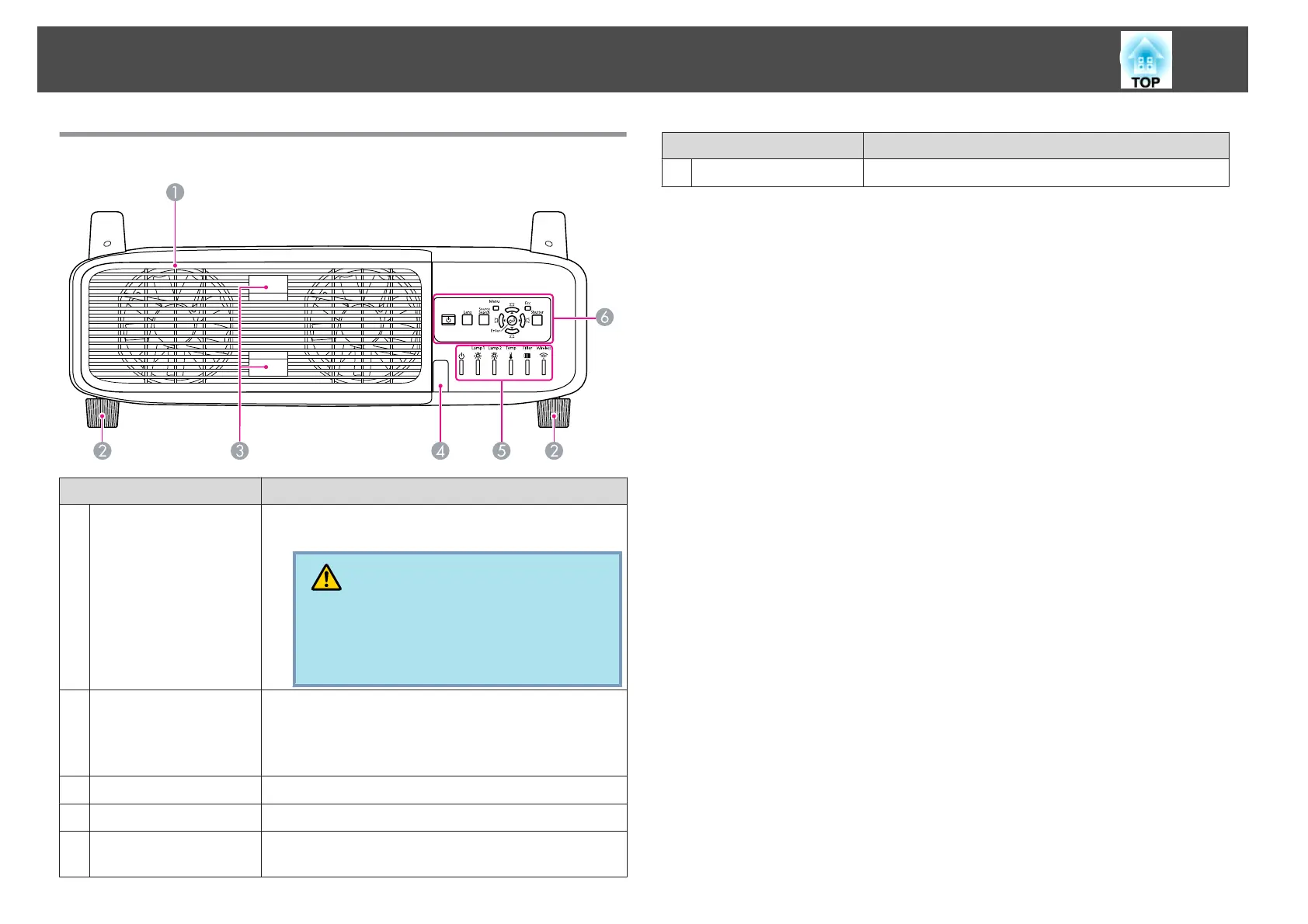

Rear
Name Function
A
Air exhaust vent
(Lamp cover)
Exhaust vent for air used to cool the projector internally.
Also, open this cover to replace the projector's lamps.
Caution
Do not place objects that may become warped or
otherwise affected by heat near the Air exhaust vent
and do not put your face or hands near the vent
while projection is in progress.
B
Rear foot
When set up on a desk, turn to extend and retract to adjust
the horizontal tilt.
The rear adjustable feet can be removed when the
projector is installed on a ceiling. s p.168
C
Lamp cover open tab
Use these tabs to open the lamp cover. s p.101
D
Remote Receiver
Receives signals from the remote control. s p.18
E
Status indicators
The color of the indicators and whether they are flashing
or lit indicate the status of the projector. s p.83
Name Function
F
Control Panel
s "Control Panel" p.14
