Interface

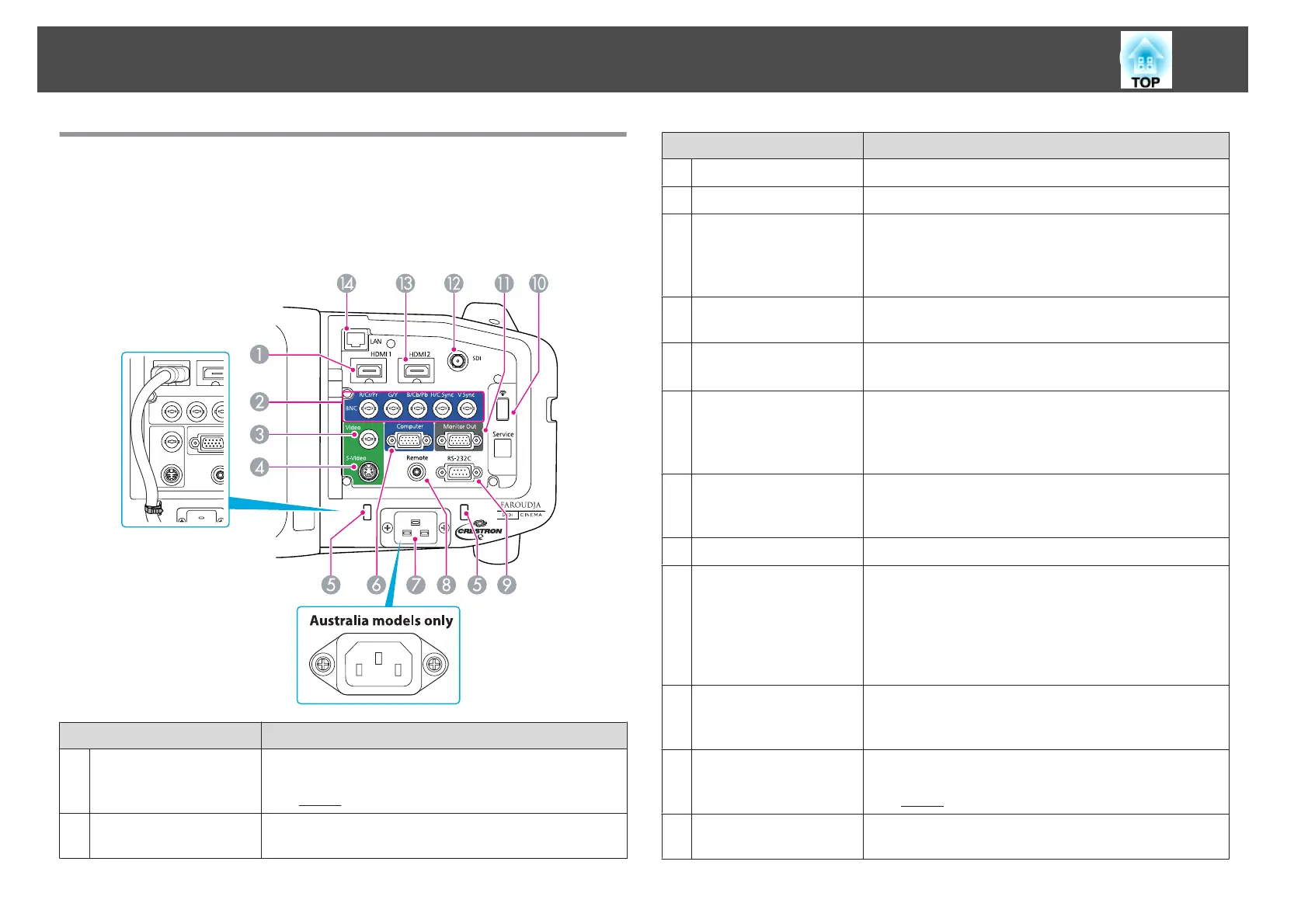

The following ports can be accessed by removing the interface cover. For
information on how to remove the interface cover and connect video
equipment,
s "Attaching and Removing the Interface Cover" p.166,
"Connecting to Video Equipment" p.132
Name Function
A
HDMI1 input port
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with
HDCP g signals.
B
BNC input port
For analog RGB signals from a computer and component
video signals from other video sources.
Name Function
C
Video input port
For composite video signals from video sources.
D
S-Video input port
For S-video signals from video sources.
E
Cable holder
Connection may become defective when a thick heavy
HDMI cable is connected to the HDMI input port. Run a
commercially available cable tie through this holder to
prevent the cable from disconnecting.
F
Computer input port
For analog RGB signals from a computer and component
video signals from other video sources.
G
Power inlet
Connects to the power cable.
The shape may differ depending on your projector model.
H
Remote port
Connects the optional remote control cable set and inputs
signals from the remote control. When the remote control
cable is plugged into this port, the remote receiver on the
projector is disabled.
I
RS-232C port
When controlling the projector from a computer, connect
it to the computer with an RS-232C cable. This port is for
control use and should not normally be used. s p.115
J
Wireless LAN Unit port
Connects to the optional wireless LAN unit. s p.165
K
Monitor Out port
Outputs to an external monitor the analog signal from the
computer connected to the Computer input port or the
BNC input port. This is not available for component video
signals or other signals being input to any port other than
the Computer input port or the BNC input port.
s p.161
L
SDI port
(EB-Z8455WU/
Z8450WU only)
Inputs SDI signals from a video equipment.
M
HDMI2 input port
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with
HDCP g signals.
N
LAN port
Connects a LAN cable to connect to a network.
s p.161
