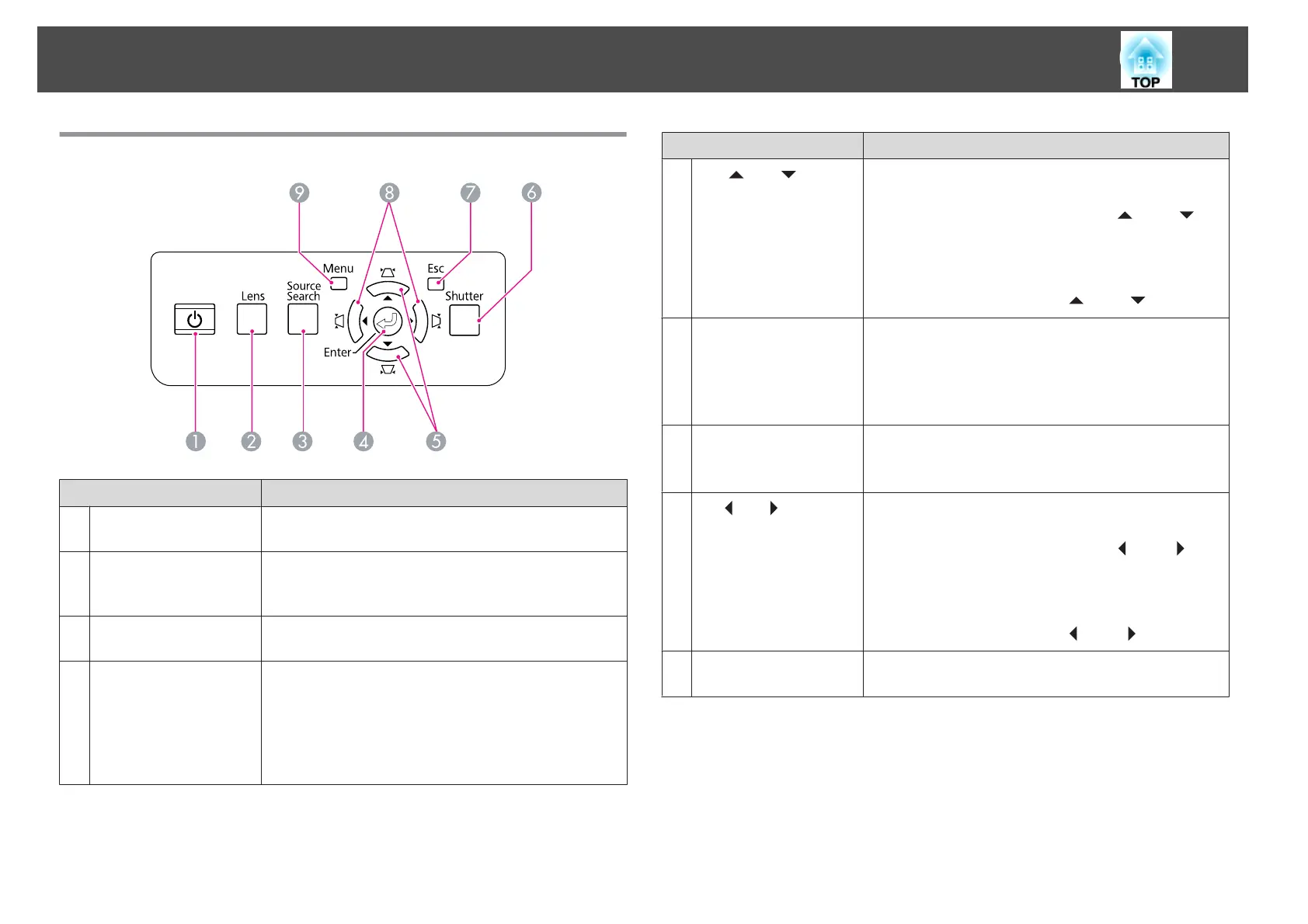

Control Panel
Name Function
A
[t] button
Turns the projector power On or Off. s Quick Start
Guide
B
[Lens] button
Press this button to cycle through the focus, zoom, and
lens shift settings to adjust the lens. s p.138, Quick Start
Guide
C
[Source Search]
button
Changes to the next input source that is connected to the
projector and is sending an image. s p.20
D
[Enter] button
If pressed during projection of computer analog RGB
signals, it automatically adjusts the Tracking, Sync., and
Position to project the optimum image.
When the configuration menu or a Help screen is
displayed, it accepts and enters the current selection and
moves to the next level. s p.47
Name Function
E
[w/ ][v/ ]
button
Corrects vertical keystone distortion. s p.142
If pressed while the configuration menu or a Help screen is
displayed, these buttons only have the [
] and [ ]
functions which select menu items and setting values.
s p.47
When projecting using "Connect to a Network Projector",
these buttons function only as [
] and [ ] buttons.
F
[Shutter] button
Closes or opens the electric shutter, or mutes the image
temporarily to dim the screen.
Any operation that is selected in Shutter Button is
executed.
s p.33
G
[Esc] button
Stops the current function.
If pressed when the configuration menu is displayed, it
moves to the previous menu level. s p.47
H
[</ ][>/ ] button
Corrects horizontal keystone distortion. s p.142
If pressed while the configuration menu or a Help screen is
displayed, these buttons only have the [
] and [ ]
functions which select menu items and setting values.
s p.47
When projecting using "Connect to a Network Projector",
these buttons function only as [
] and [ ] buttons.
I
[Menu] button
Displays and closes the configuration menu.
s p.47
Part Names and Functions
14
