Removing the Feet

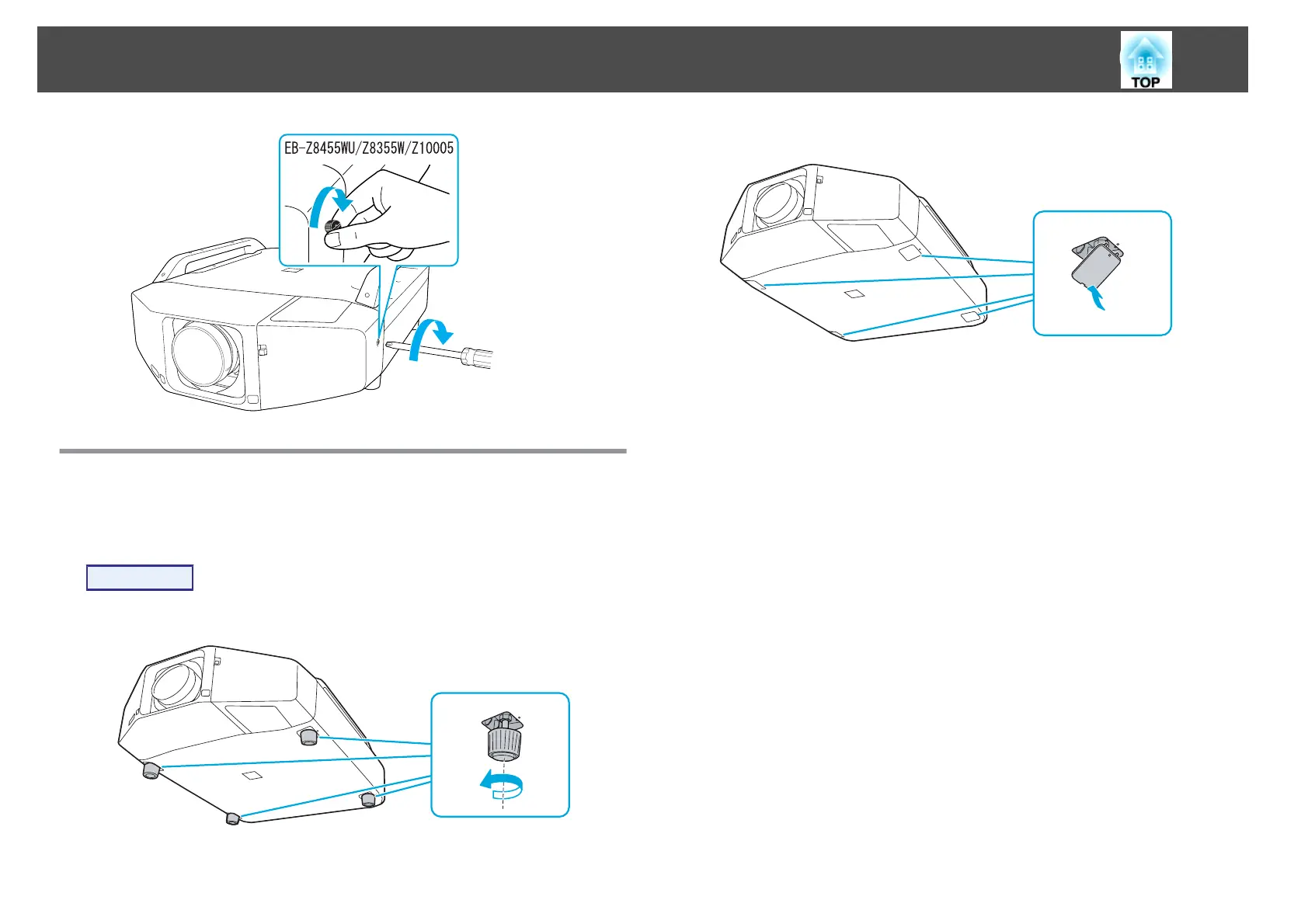

When mounting the projector on the ceiling, you can remove the feet and

attach the supplied foot covers for clean appearance.

Procedure

Remove the feet.

Attach the supplied foot covers.
