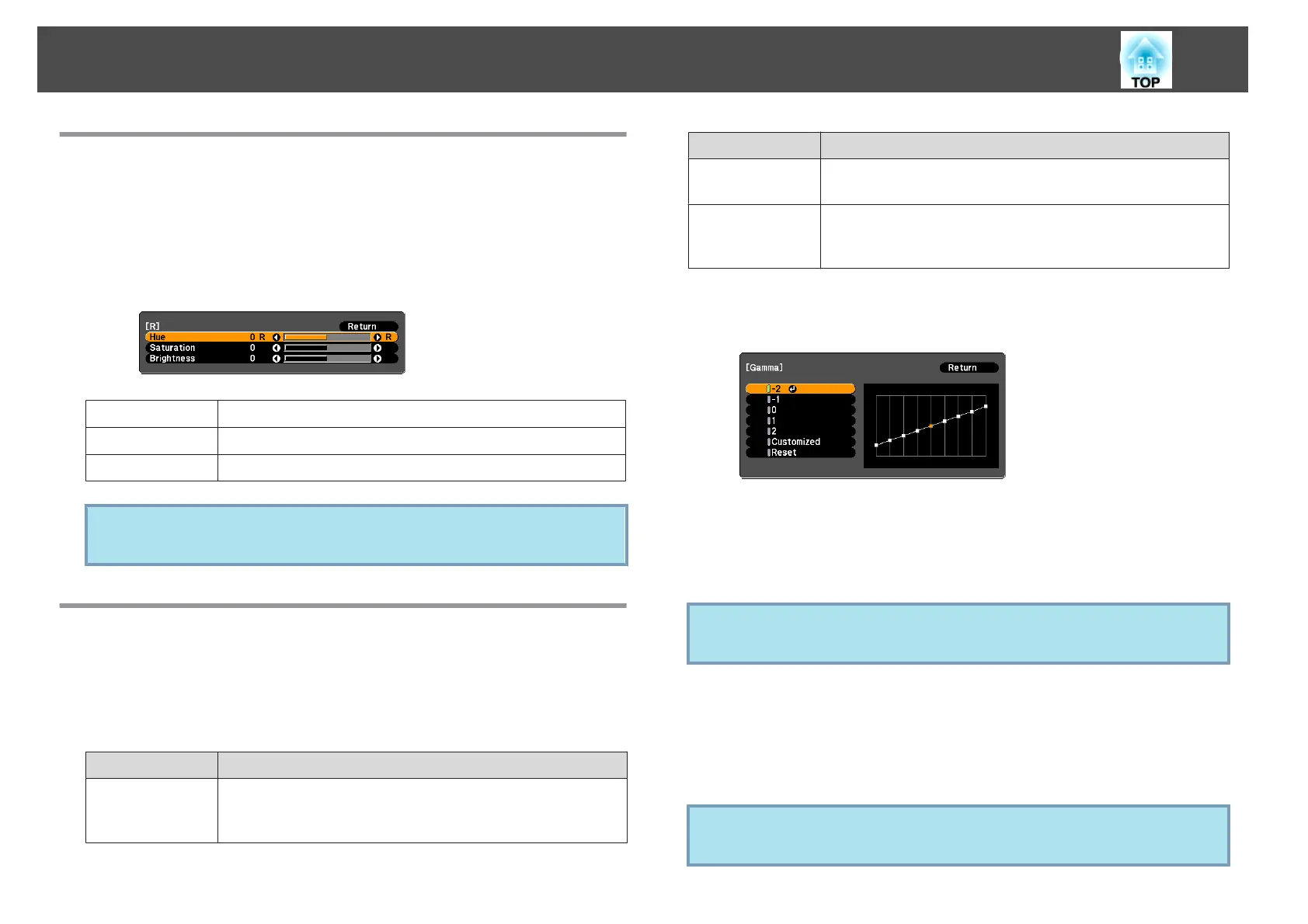

Hue, Saturation, and Brightness Adjustment
The Hue, Saturation, and Brightness for each of the R (red), G (green), B
(blue), C (cyan), M (magenta) and Y (yellow) color components can be
adjusted.
The menu is displayed in the following order.
Image menu - Advanced - RGBCMY
Hue Adjusts the overall hue of the image, bluish – greenish – reddish.
Saturation Adjusts the overall vividness of the image.
Brightness Adjusts the overall color brightness of the image.
q
If you press the [Default] button while adjusting, the value that you
are adjusting is reset to the default.
Gamma Adjustment
Adjust the coloring that is occurred depending on the equipment during
displaying the image.
There are three methods of setting as below, which can be selected in the
configuration menu.
Setting Method Menu Settings
Select and adjust
the correction val-
ue
Image - Advanced - Gamma
Setting Method Menu Settings
Adjust while view-
ing the image
Image - Advanced - Gamma - Customized - Adjust it from the
Adjust using the
gamma adjustment
graph
Image - Advanced - Gamma - Customized - Adjust it from the
graph
Select and adjust the correction value
When a smaller value is selected, the dark areas of images become brighter,
but the lighter areas may become oversaturated. When a larger value is
selected, you can reduce the overall brightness of the image to make the
image sharper.
q
The gamma graph's horizontal axis represents the input signal level
and its vertical axis represents the output signal level.
When Color Mode is set to DICOM SIM from the Image menu, select the
correction value according to your screen size, referring the size of a 150
inch screen.
If your screen is smaller than 150 inch, select a large value. If your screen is
larger than 150 inch, select a small value.
q
Medical images may not be reproduced correctly according to your
settings and screen specifications.
Adjusting the Image Quality
146
