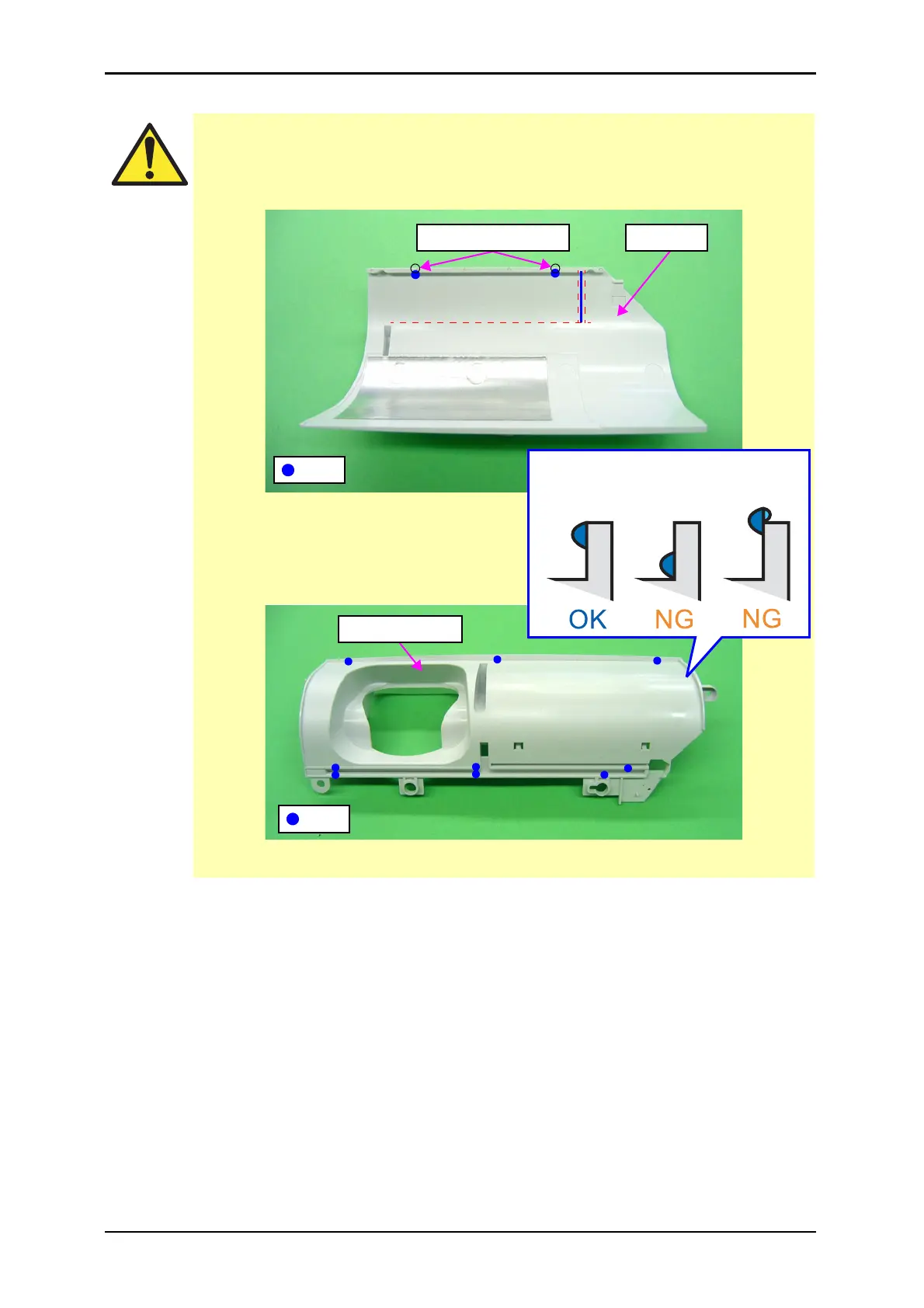

 After replacing the Shutter A and the Shutter Frame, or when the sliding
action of the shutter become awkward, apply grease in the size of a grain of
rice to the positions indicated in the figure below.(EMP-X5/S5’s case)
Figure 4-16.
G-71
Shutter Frame
ejection pin marks
G-71
Shutter A
Grease position (cross-sectional view)
Apply to the top corner of the part.
