 When reassembling the Shutter Spring and the Shutter Ball, assemble in the
order of the following.
1). Keep the Shutter A open.
2). Put the Shutter Ball into the hole of the Shutter Frame.
3). Move the Shutter Ball to the direction of the arrow, then squeeze and
insert the Shutter Spring to the hole of the Shutter Frame. (Be careful not
to lose the Shutter Ball and the Shutter Spring during assembly.)

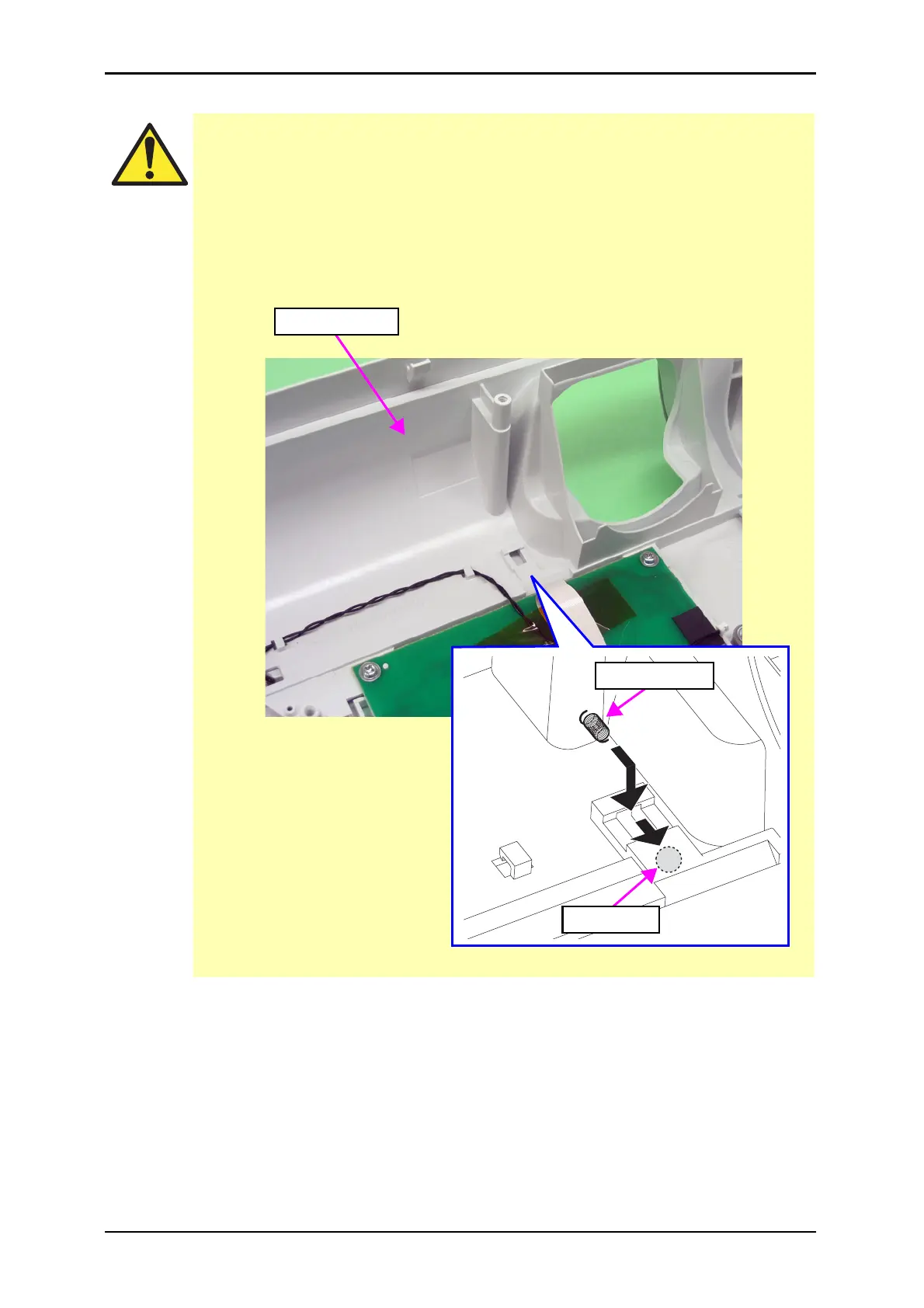

Figure 4-17.
Shutter Frame
Shutter Ball
Shutter Spring

Epson EMP-X5 Specifications

General

Resolution	1024 x 768 (XGA)
Contrast Ratio	400:1
Lamp Life	3000 hours (Normal Mode), 4000 hours (Eco Mode)
Display Technology	3LCD
Zoom Ratio	1.2x
Projection Size	30 - 300 inches
Brightness	2200 lumens
Weight	2.7 kg
Inputs	Composite video, S-Video
Noise Level	35 dB (standard), 28 dB (economy)
