Setup & Operation 14. Option Slots

RC700 / RC700-A Rev.23 105

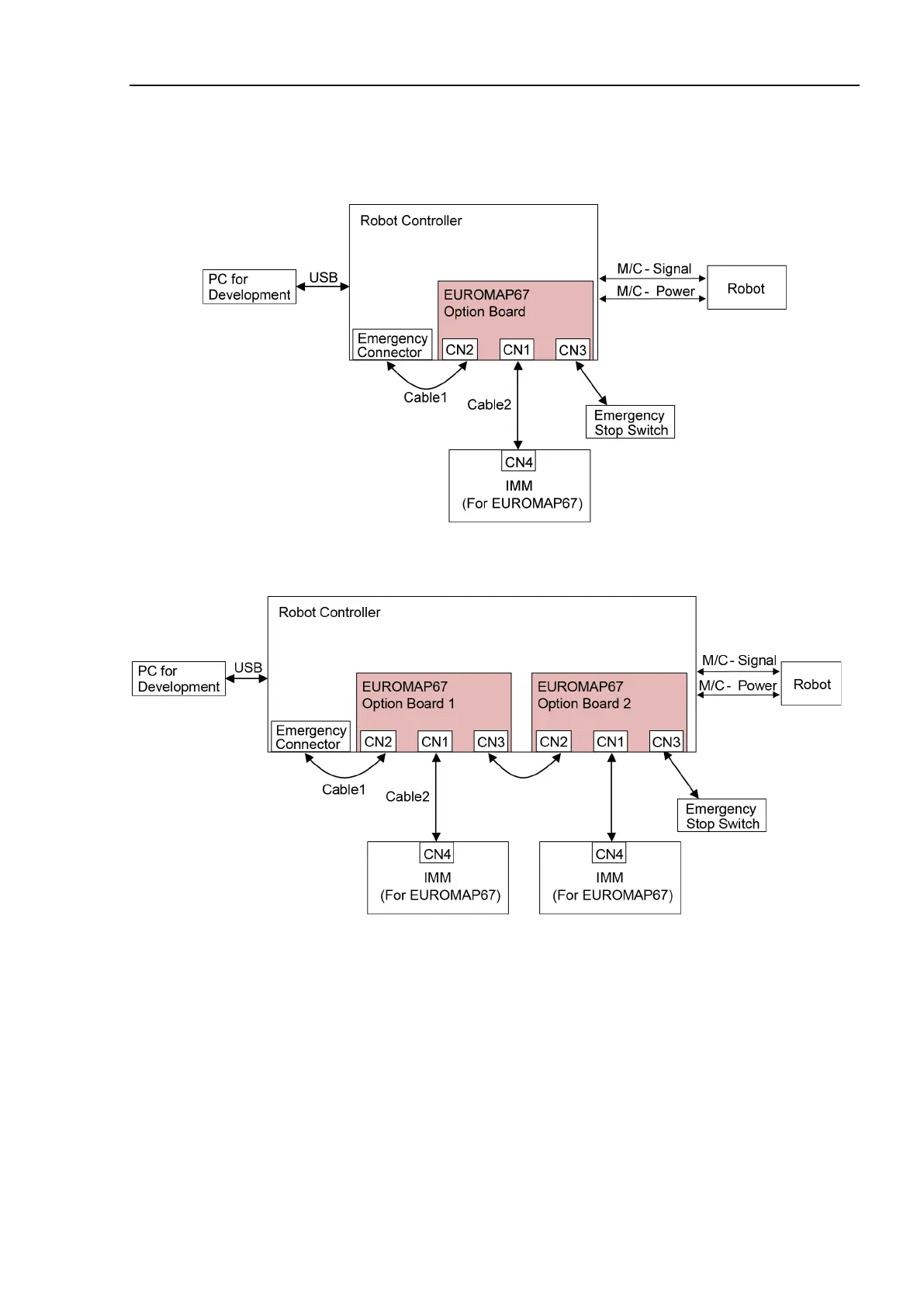

Connection outline

(IMM: Injection Molding Machine)

One EUROMAP67 board:

Two EUROMAP67 boards:
