Setup & Operation 11. I/O Connector
64 RC700 / RC700-A Rev.23
11.2 Output Circuit
Rated Output Voltage : +12 V to 24 V ±10%
Maximum Output Current : TYP 100 mA/1 output
Output Driver : PhotoMOS Relay
On-State Resistance (average) : 23.5 Ω or less
Two types of wiring are available for use with the nonpolar PhotoMOS relay in the output
circuit.

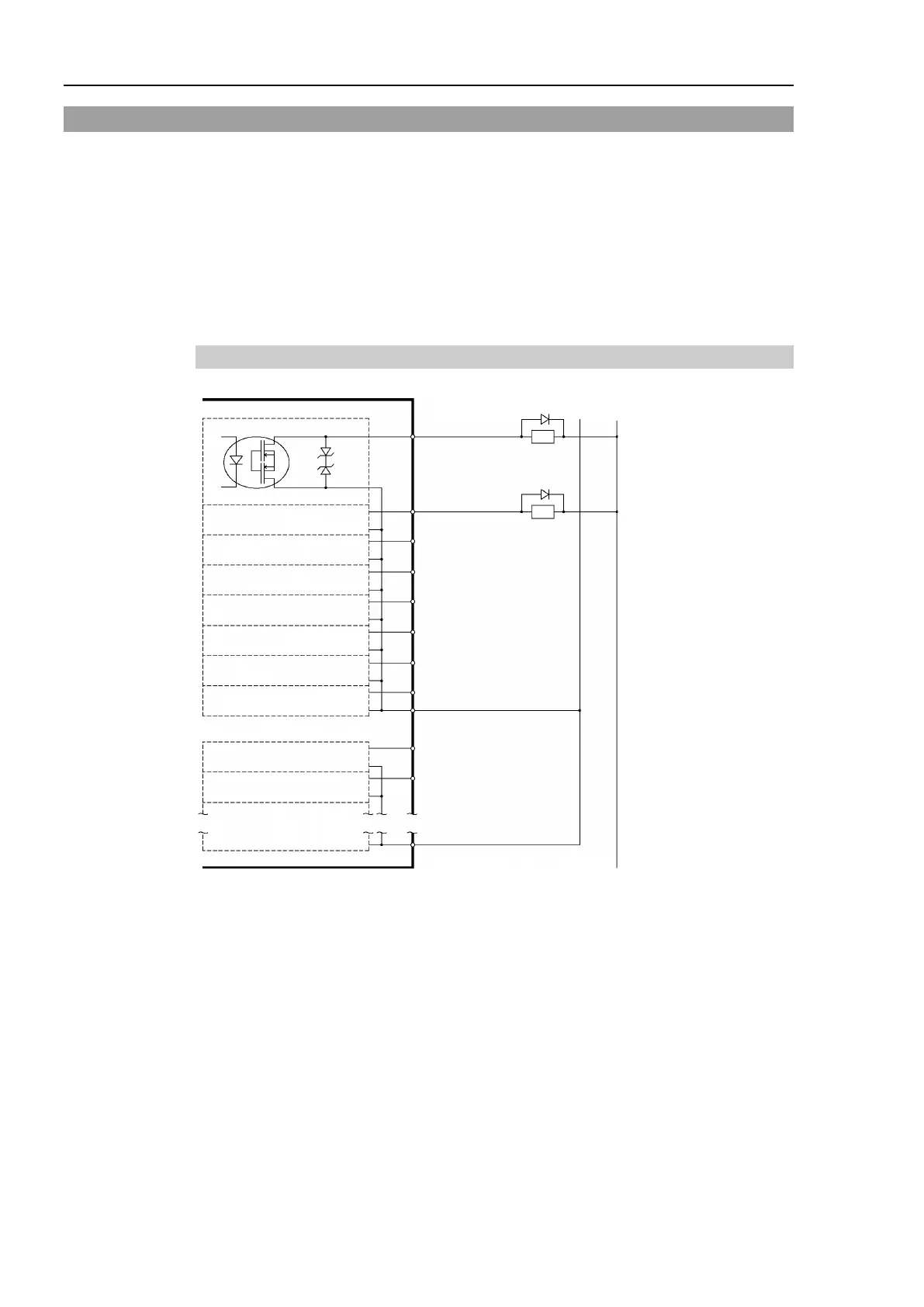

Typical Output Circuit Application 1
10 Output No.0
I/O-1
(Same)
Omit
+DC
29 Output No.8
30 Output No.9
11 Output No.1
12 Output No.2
13 Output No.3
14 Output No.4
15 Output No.5
27 Output No.6
28 Output No.7
17 Output No.0 to 7 common (GND)
Load
L
GND
L
33 Output No.8 to 15 common (GND)
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
