Maintenance 7. Maintenance Parts Replacement Procedures
RC700 / RC700-A Rev.23 167

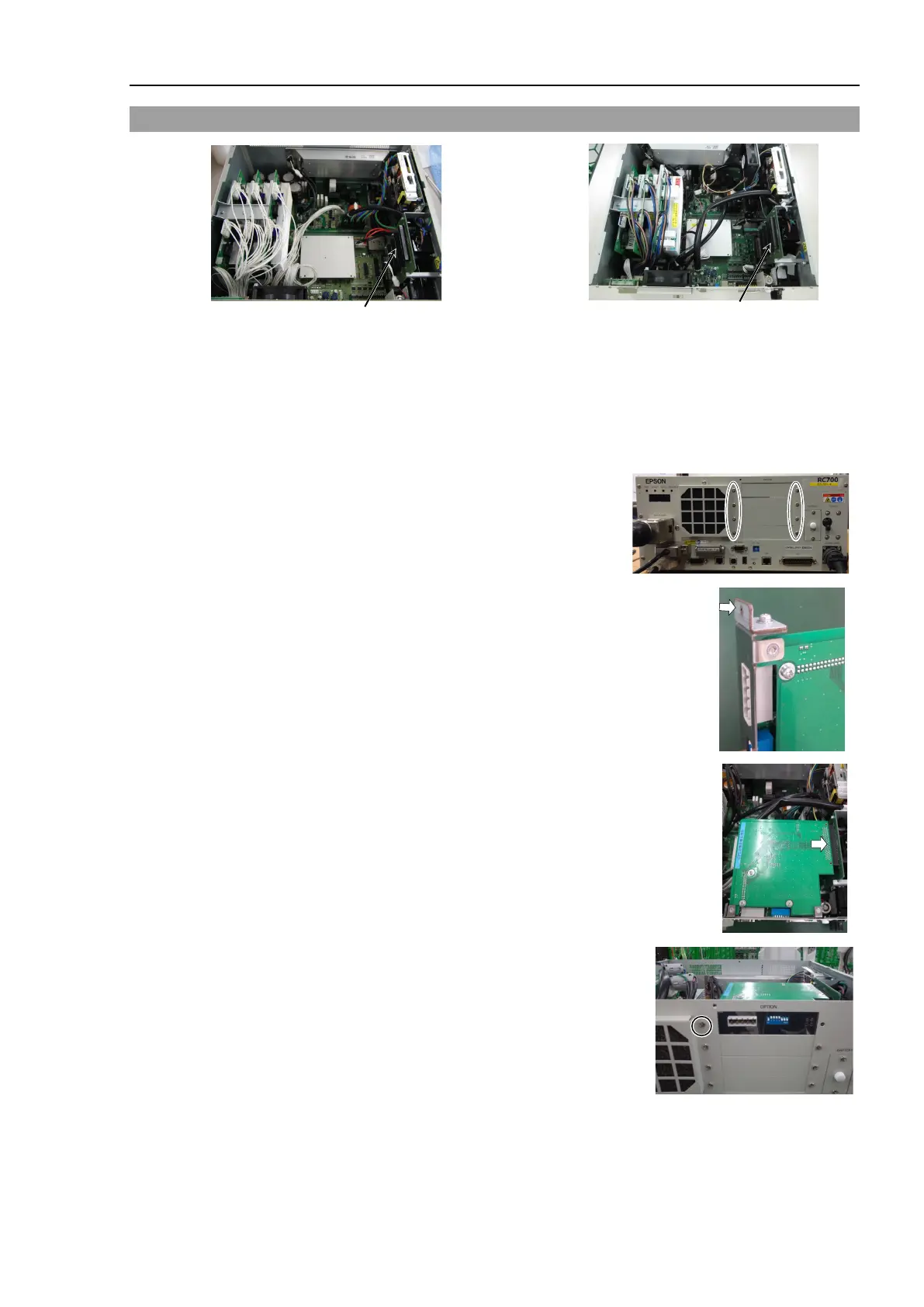

7.10 Option Board
RC700
Option Slot
RC700-A
Option Slot
Option Board
Addition
(1)
Turn OFF the Controller.
(2)
Disconnect
the power plug.
(3)
Remove
the Top Panel. (Mounting screw ×6)
(4)
Remove the screws of the Option Slot Panel
s.
Remove as many Option Panels as the Option
Boards to add.
(5)
Mount the L
-shaped plate to the Option Board.
(6)
Install the Option Board as shown in the picture.
Insert
the board to the Option Slot.
(
in the direction of an arrow)
(7)
Mount the attachment L
-
shaped plate with a screw
from the front side.
At this point, one screw for the Option Slot Panel is
left unused.
(8)
Mount the Top Panel. (Mounting screws
×6)
(9)
After connecting the power plug, turn on the Controller and check it works normally
without
vibration and abnormal sound.
