Safety 3. Installation
24 RC700 / RC700-A Rev.23

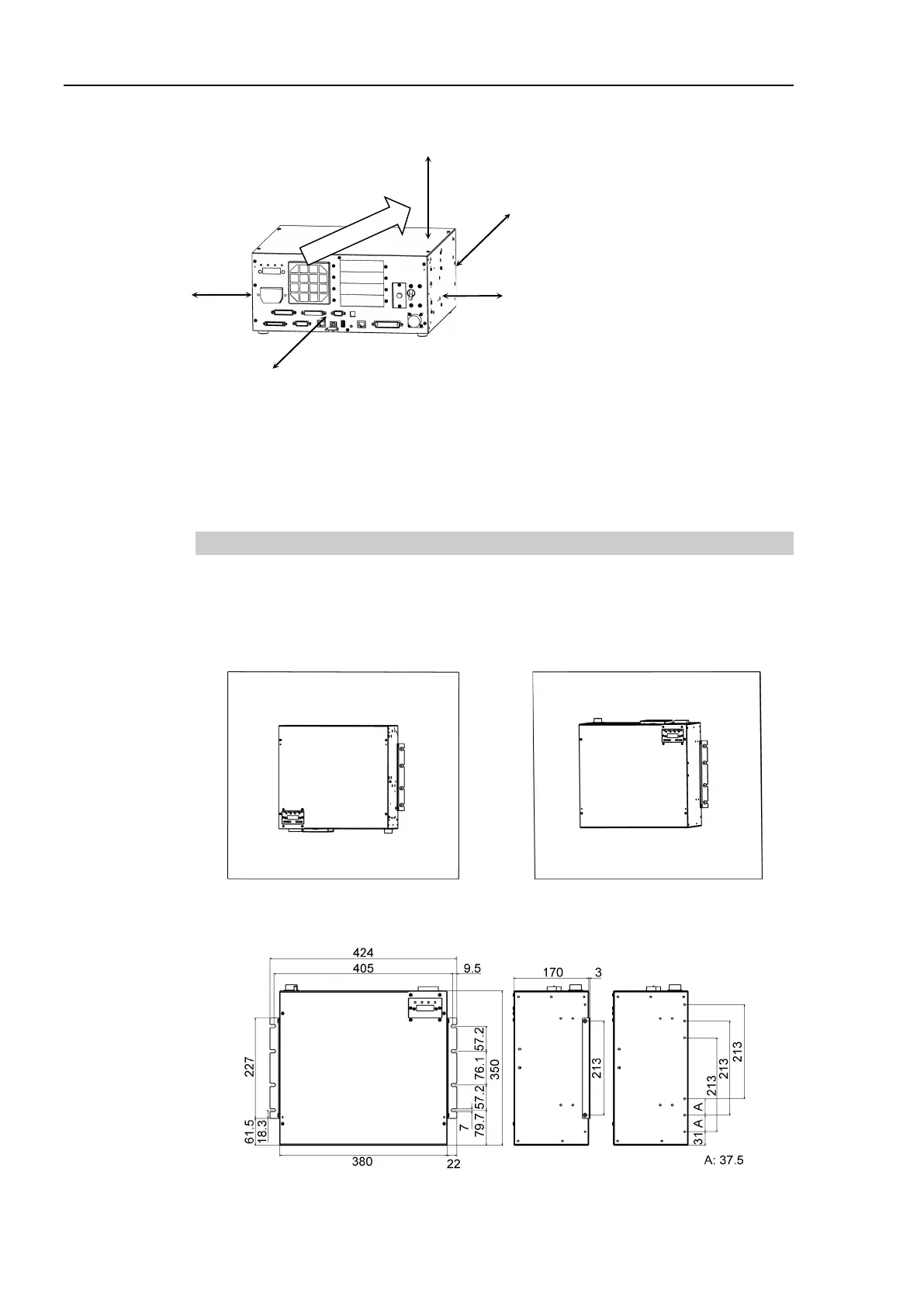

- Ensure the draft around the in/out and prevent the other equipment, walls and install the
Controller by keeping the distance as follows for maintenance.
100 mm
50 mm
50 mm
200 mm
Air Flow of
the Controller Fan
200 mm
Excluding the installation side such as base table
- Hot air with higher temperature than the ambient temperature (about 10 °C) comes out
from the Controller. Make sure that heat sensitive devices are not placed near the
outlet.
- Arrange the cables in front of the Controller so that you can pull the Controller forward.
3.2.3 Wall Mounting Option
The control unit has a wall mounting option. This section describes the installation
procedure.
(Figure/Picture: RC700)
Wall mounting with the front side down Wall mounting with the front side up
Controller outer dimensions when using the wall mounting option
Dimensions of the mounting holes for the wall
(Unit: mm)
