Setup & Operation
14. O
ption Slots
110
RC700 / RC700
-
A Rev.23
(9)

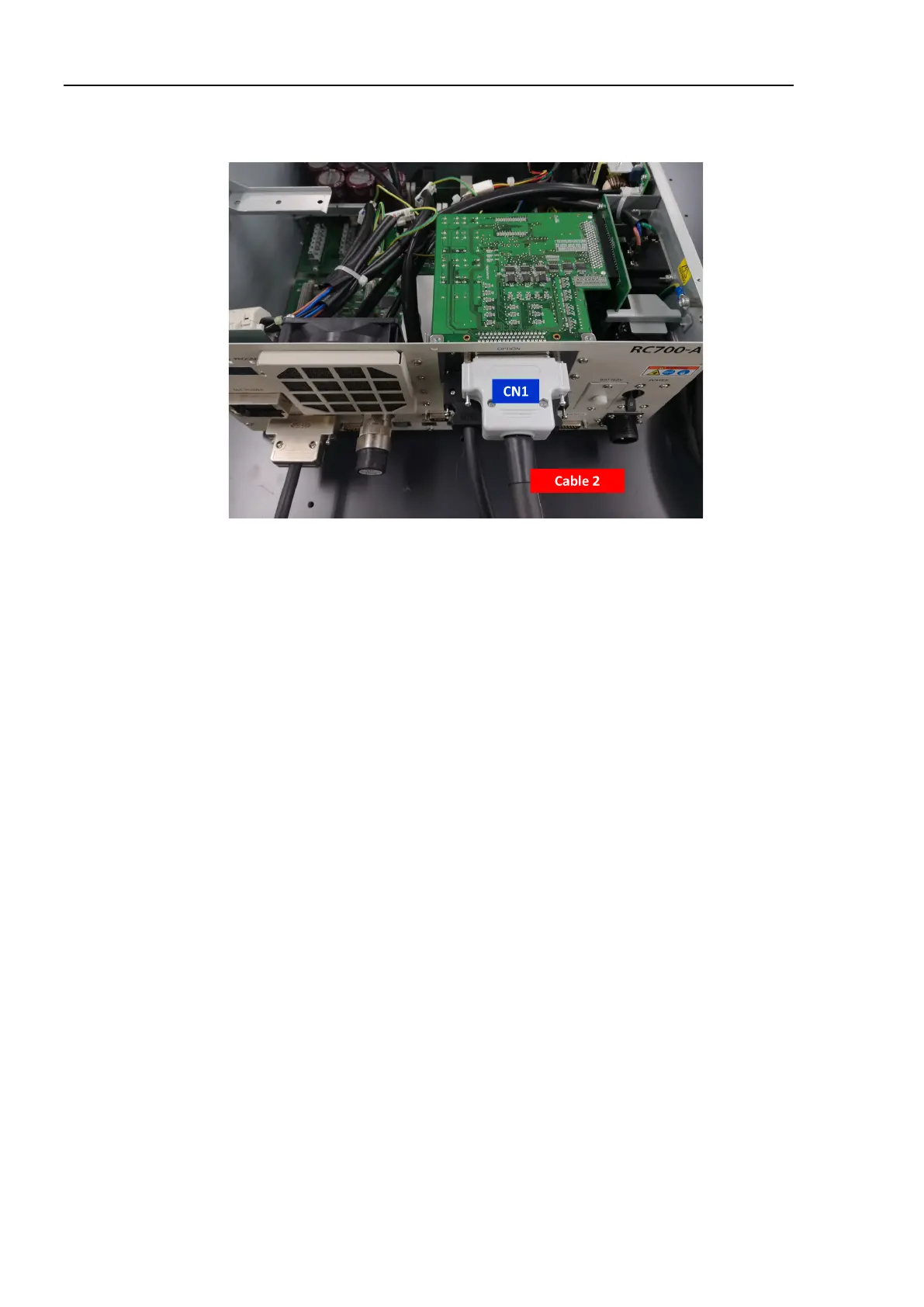

Connect
“Cable2 CN
1”.
Use a
cro
ss
-poi
nt screwdriv
e
r to fas
ten the connector (C
N1).
(10)
Mount the
Top Panel. (Moun
ting screw
×
6)
(11)
Connect “Cable2
CN4” to the IMM
.
(12)
Connect the
power plug.
Turn ON t
he Controller a
nd make sur
e
that
the
Con
troller
starts prope
rly without any
vibration or abnorm
al noise.
121
