Epson RC700-A User Manual

Maintenance 7. Maintenance Parts Replacement Procedures
RC700 / RC700-A Rev.23 159
(9)
RC700:

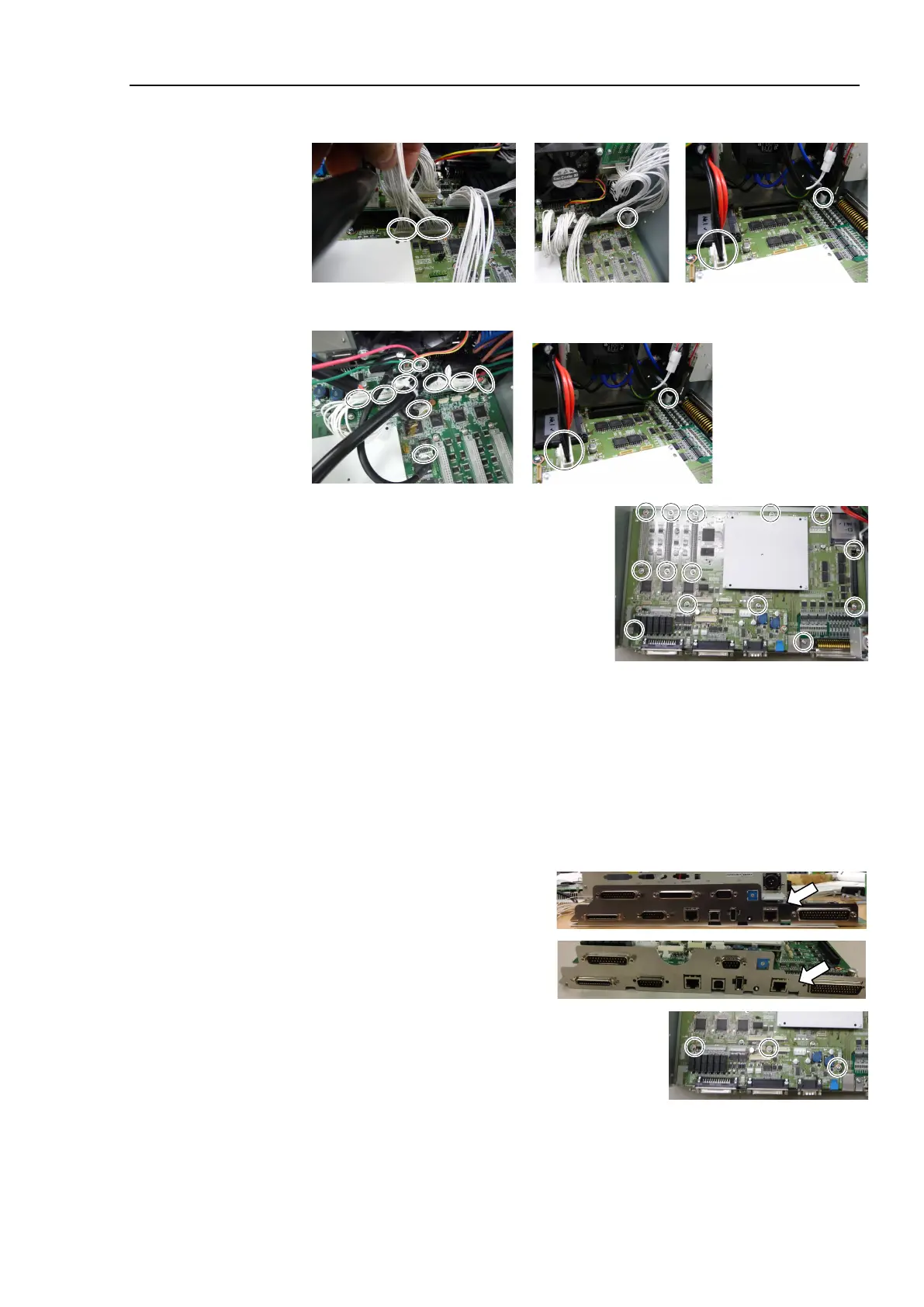

Remove the five connectors from the DMB.
RC700
-A: Remove the twelve connectors from the DMB.
(10)
R
emove the DMB mounting screws (×14).
(11)
Remove the fan.
Refer to Maintenance: 7.2 Fan.
(12)
Remove the DMB from the chassis.
At this point, be
careful not to touch the chassis and other parts.
(13)
Remove the plate fixing the connectors on the front side from the DMB and the
DMB
-SUB boards.
RC700
RC700-A
(14)
Remove the
DMB-SUB board from the DMB.
(Mounting screw
×3)
