Safety 3. Installation
26 RC700 / RC700-A Rev.23

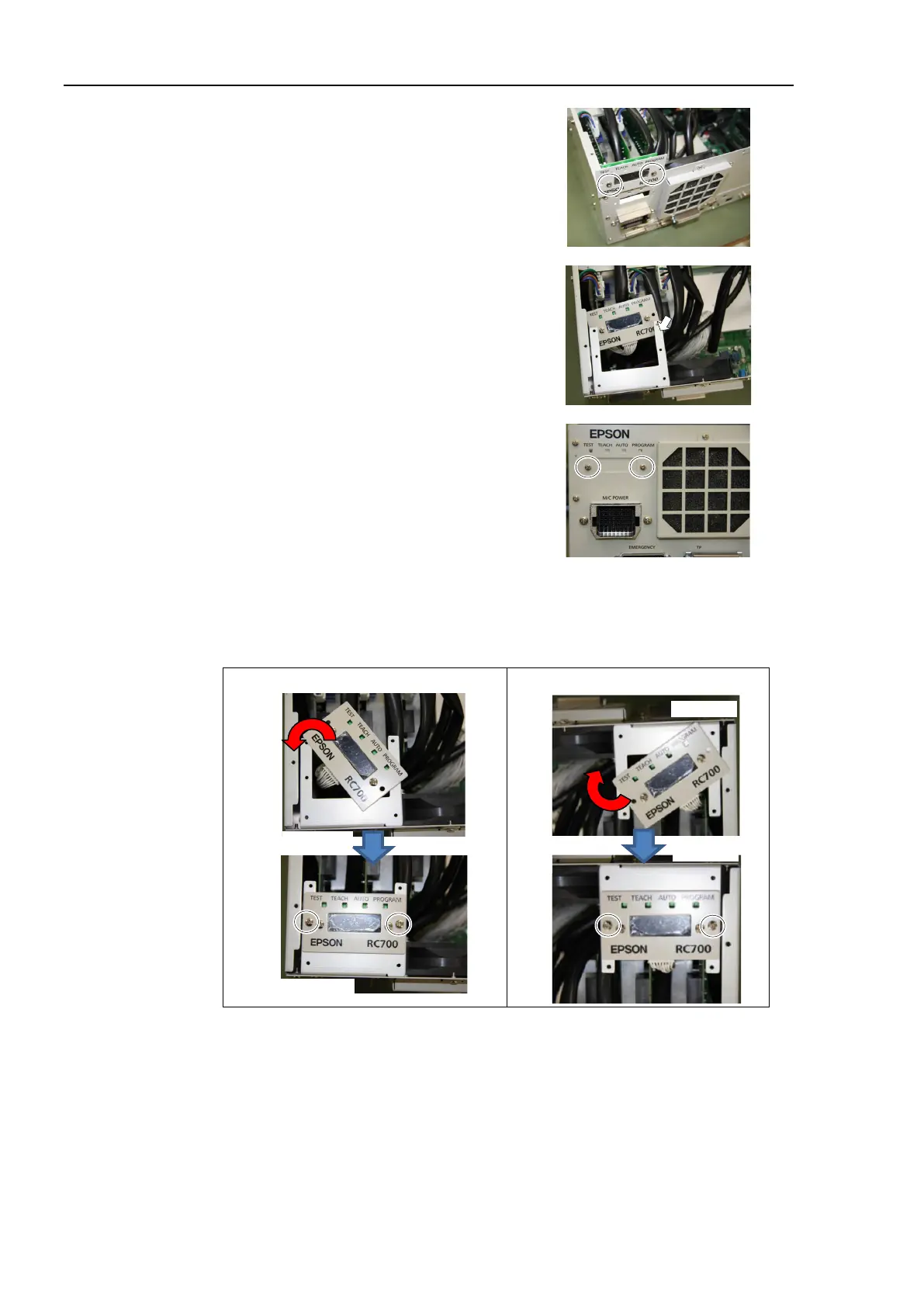

DISPLAY PLATE to the LED/7
segment board. (Mounting screw
×2)
When installing the LED DISPLAY PLATE, be
careful not to drop any screw inside the
controller.
Mount the LED DISPLAY FIXING PLATE to
the controller.
(Mounting screw×2)
Mount the LED DISPLAY PLATE to the LED DISPLAY FIXING PLATE.
×2)
There are two installation methods.
Turn the LED DISPLAY PLATE horizontally to the
Top Cover in the direction
indicated by a red arrow.
Wall mounting with the front side down
Wall mounting with the front side up
Be careful not to pull the cable.
To Next Page
