2. Installation
100 RC700 / RC90 Option Fieldbus I/O Rev.14

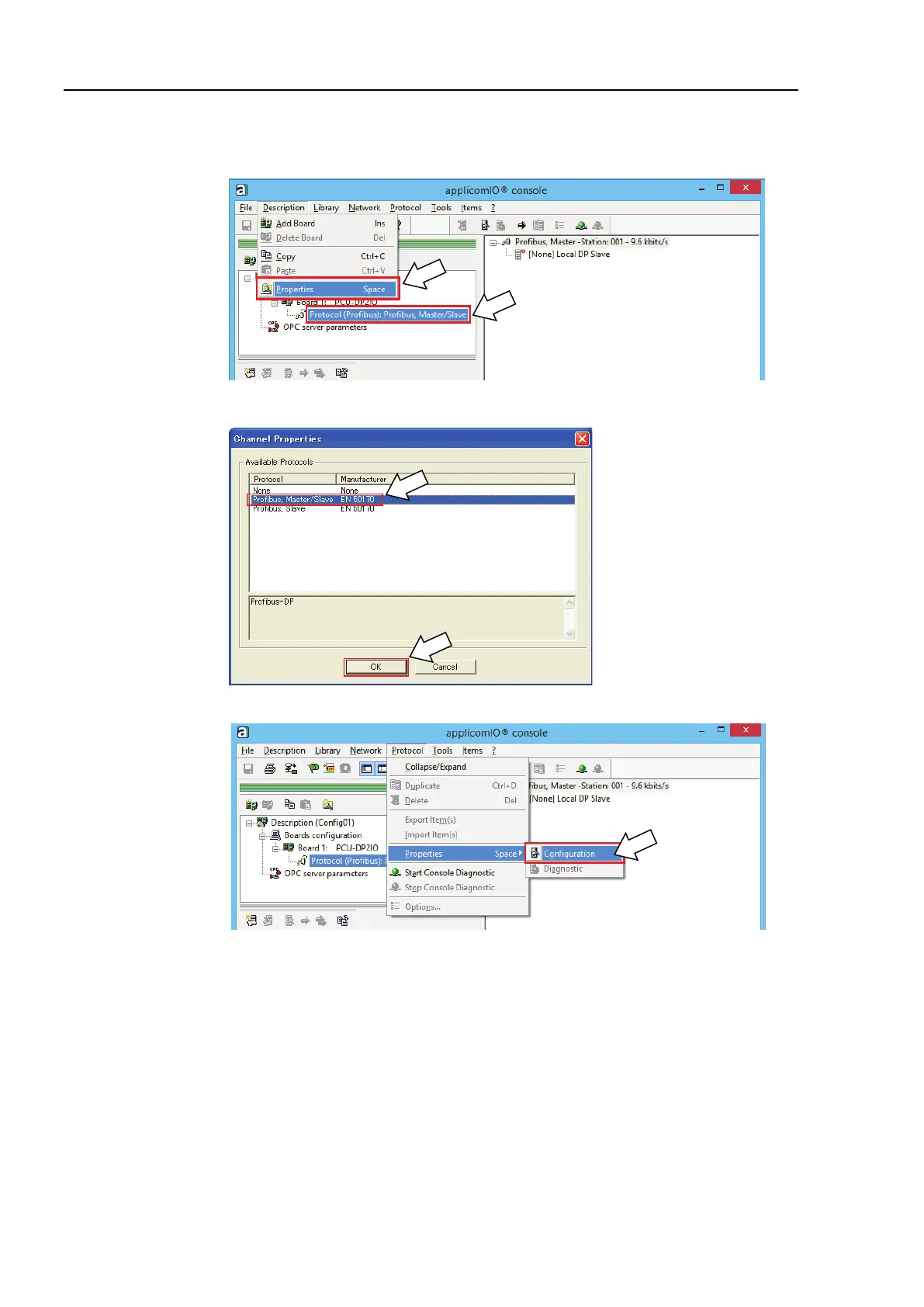

14. Configure the PROFIBUS-DP master.
Select “Protocol” and then select [Description]-[Properties] from the applicomIOR
console menu.
15. The [Channel Properties] dialog box appears.
Select “Profibus, Master/Slave” and click <OK>.
16. Select [Protocol]-[Properties]-[Configuration] from the applicomIOR console menu.
To Next Page
