2. Installation
102 RC700 / RC90 Option Fieldbus I/O Rev.14

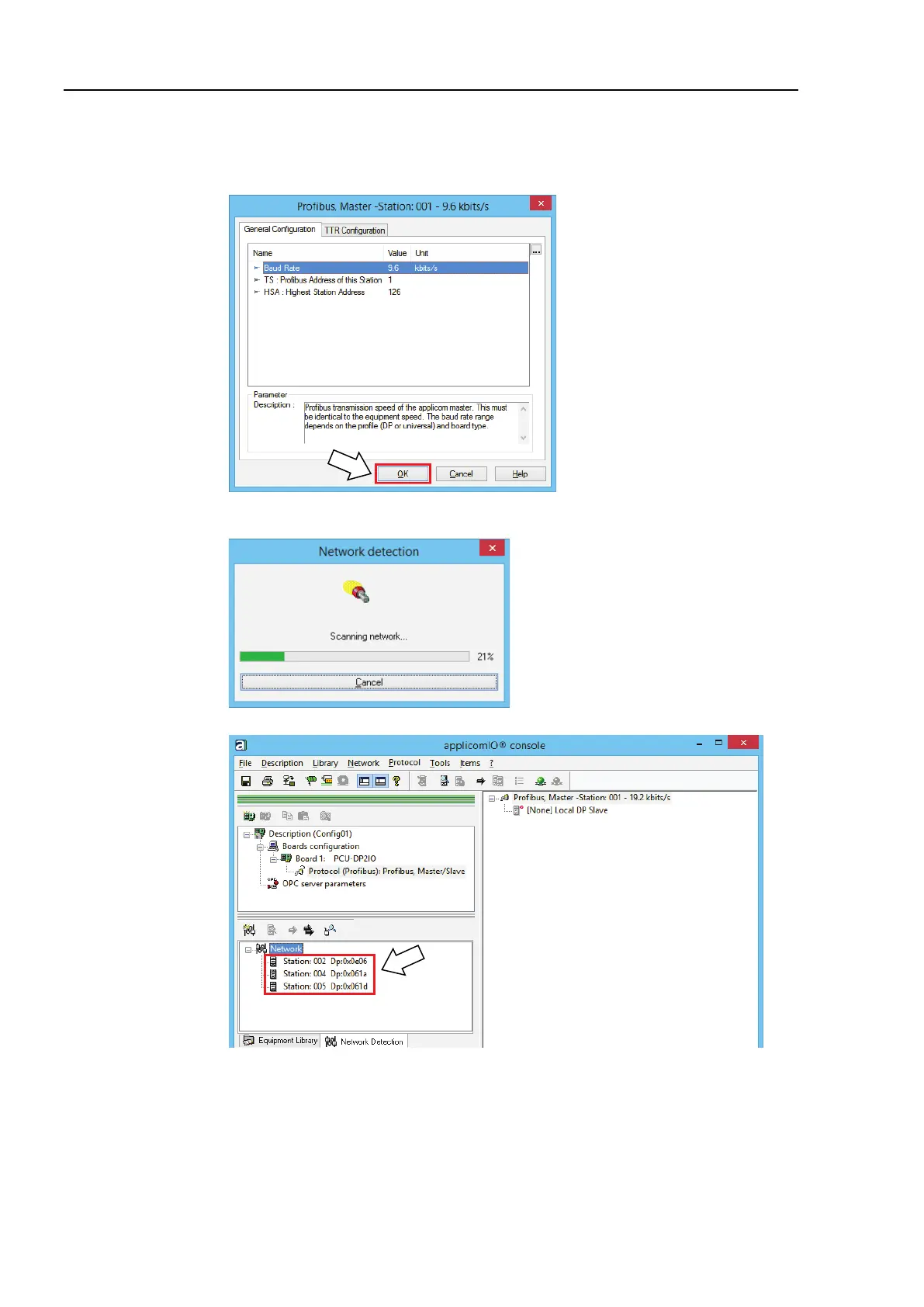

21. The [Profibus Master] dialog box appears.
Set Baud Rate for the PROFIBU-DP network, the master address (Profibus Address
of this Station), and Highest Station Address in the network.
Click <OK>.
22. The [Network Detection] dialog box appears and starts scanning the device
information on the Fieldbus.
23. The list of detected devices is displayed in the [Network Detection] panel.
To Next Page
