2. Installation
148 RC700 / RC90 Option Fieldbus I/O Rev.14
EPSON RC+7.0 Configuration
To use the Fieldbus master board, the Robot system option setting and Fieldbus master
setting should be enabled on EPSON RC+ 7.0.
1. Select [Setup]-[Option Setting] and display the [Option] dialog box.
2. Refer to EPSON RC+ User’s Guide 23. Installing Controller Options and enable the
Fieldbus Master option.

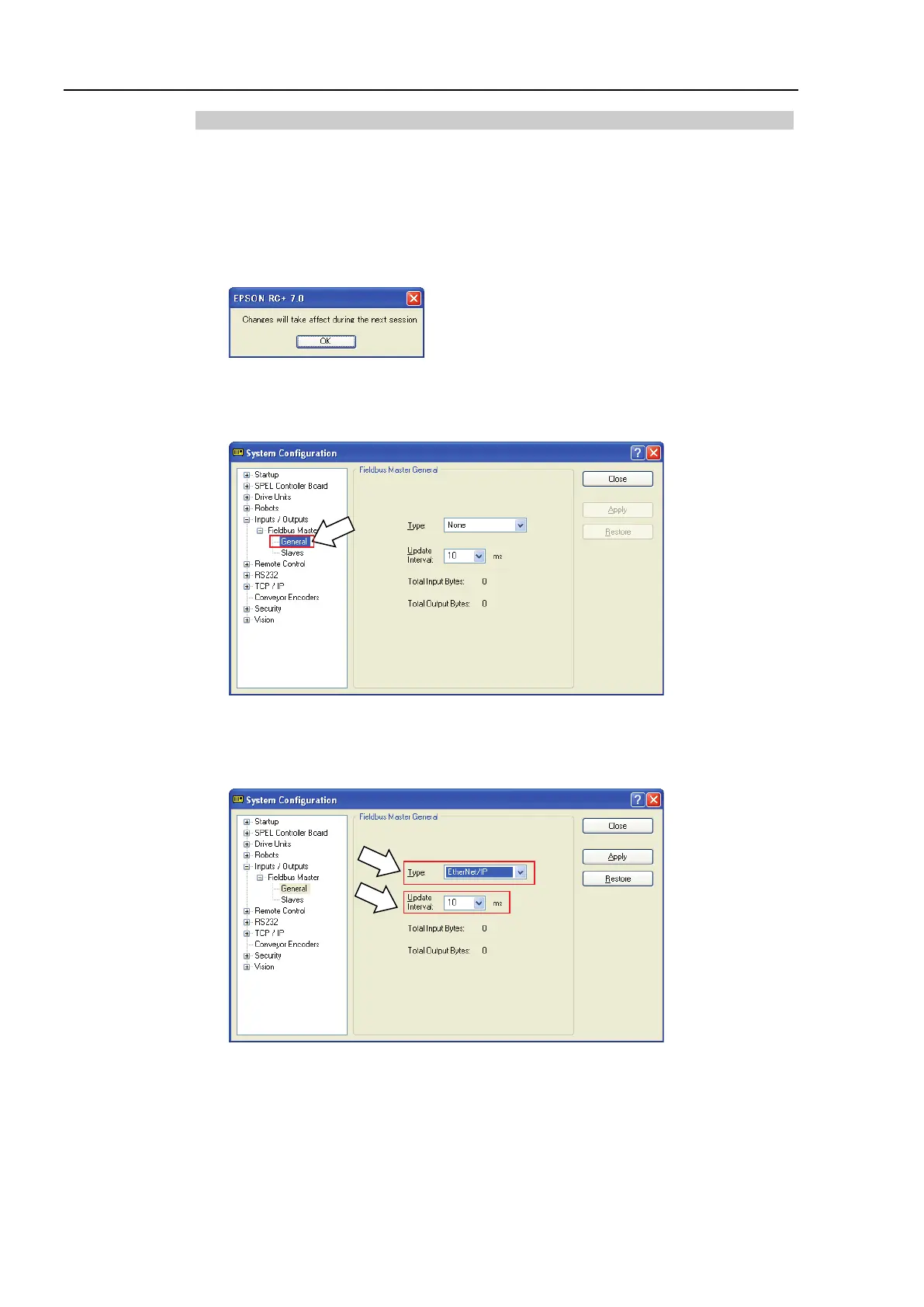

3. The following dialog box appears.
Click <OK> and reboot EPSON RC+7.0.
After EPSON RC+7.0 is started, the option setting is enabled.
4. Select [Setup]-[System Configuration] and display the [System Configuration] dialog
box.
5. Select [Inputs/Outputs]-[Fieldbus Master]-[General].
6. Set the following items:
[Type:] EtherNet/IP
[Update Interval:] Update cycle for the EtherNet/IP master I/O
7. Click <Apply>.
Confirm that the following items are displayed.
Total Input Bytes : Number of inputs the master controls (Bytes)
Total Output Bytes : Number of outputs the master controls (Bytes)
